LDER7W6D40-01

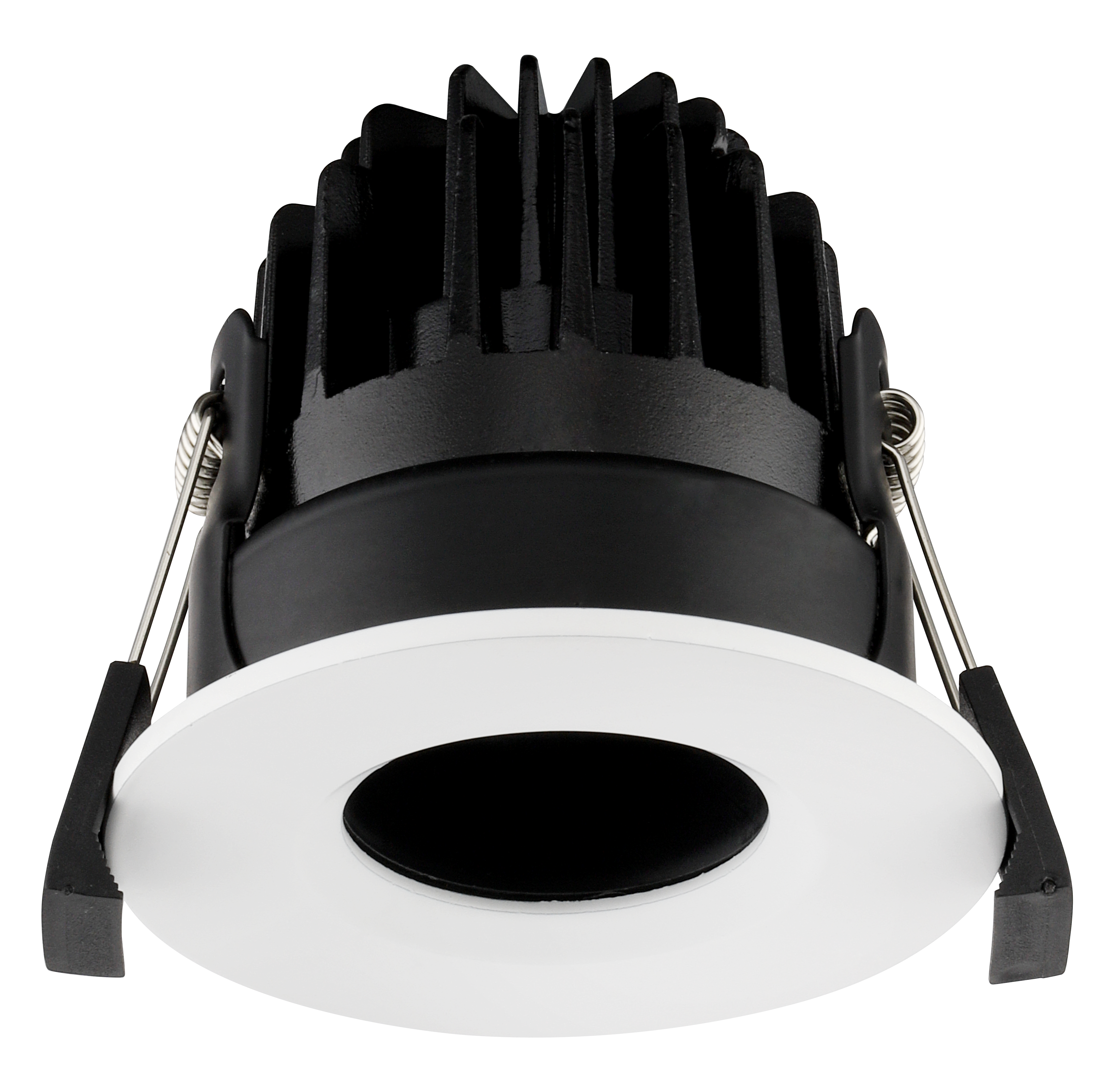

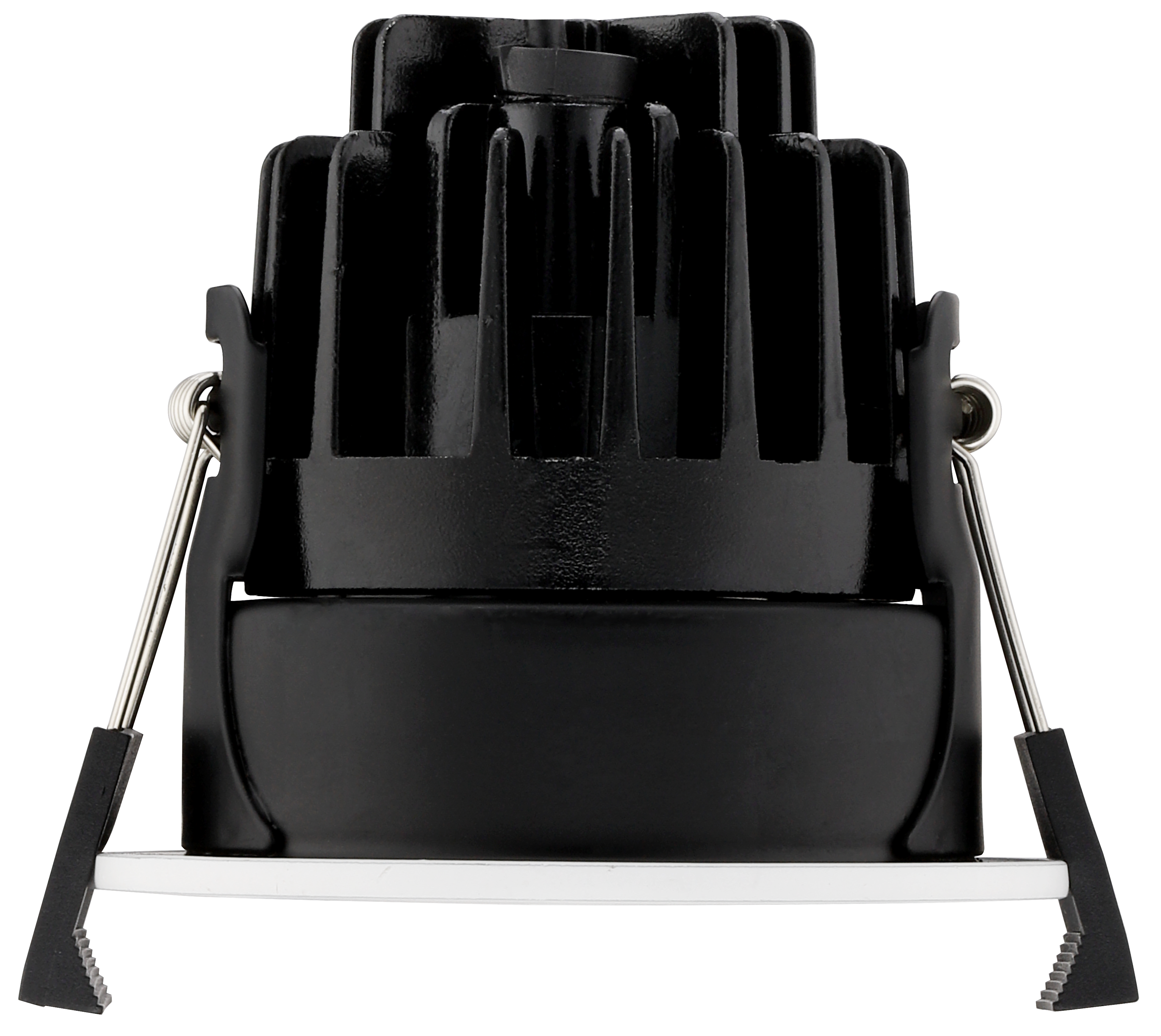

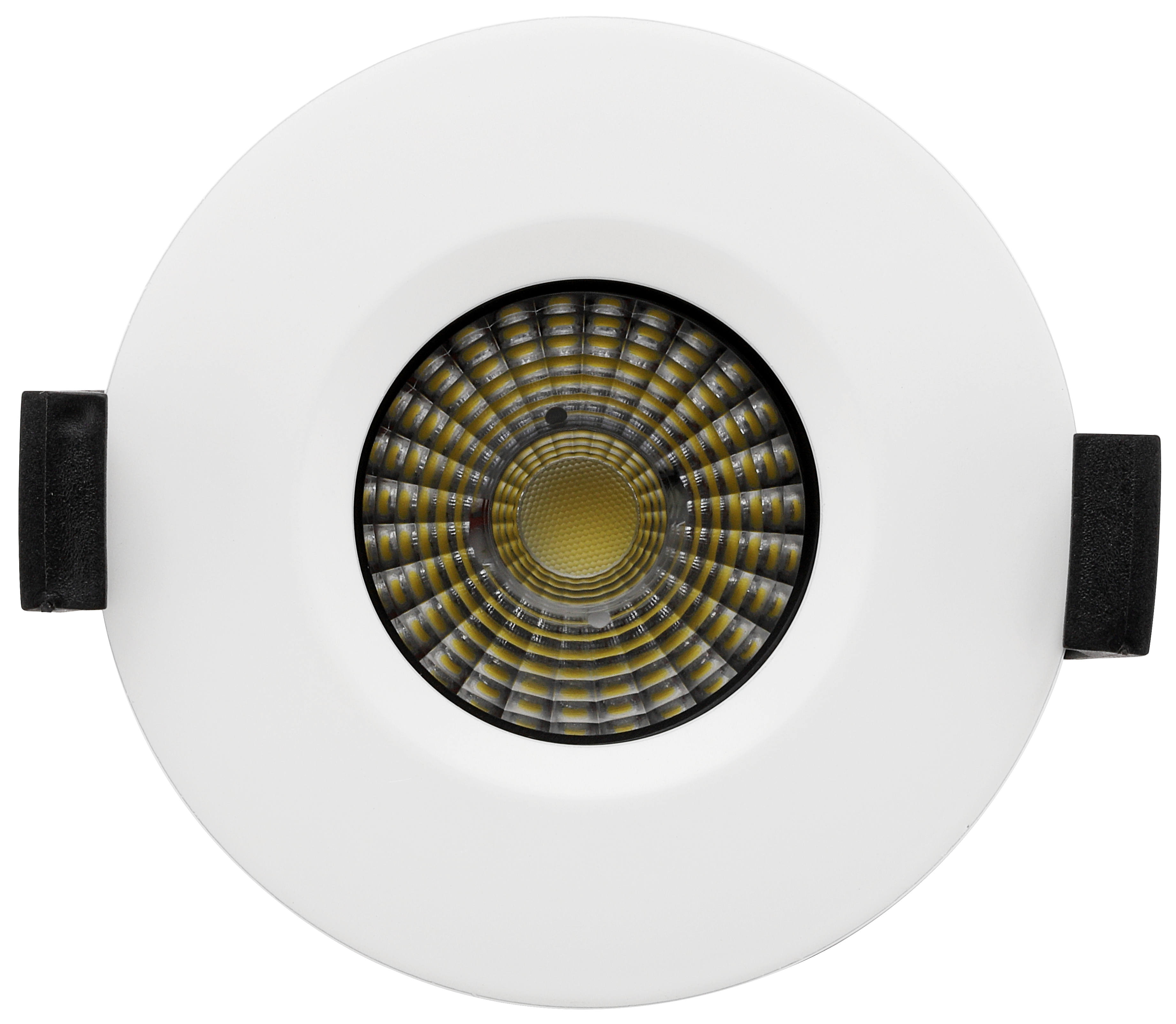

Element downlight regressed 600 lumens 4000K
Technical Data
| Code | LDER7W6D40 |
| Driver Type | Phase Dimmable |
| Lumen Output (lm) | 600 |
| Max Wattage (W) | 7 |
| Efficacy (Lm/W) | 86 |
| Colour Temp (CCT) (K) | 4000 |
| Beam Angle (degrees) | 60 |
| CRI | >80 |
| Base Colour | White |
Dimensions and Installation
| Cutout (mm) | 71mm |
| Product Depth (mm) | 104 |
| Product Width (mm) | 104 |
| Product Height (mm) | 76 |
| Product Weight (kg) | 0.395 |
Performance & Safety
| Lifetime (h) | 40000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 40000 |
| Operating Temperature (C) | -25°C to +40°C |
| Input Voltage (V) | 220-240 |
| E-Class | Class1 |
| Power Factor | >0.9 |
| IK Rating | IK04 |
| Fire Rating | 30 60 90 minute |
