LBHXCLS27-01

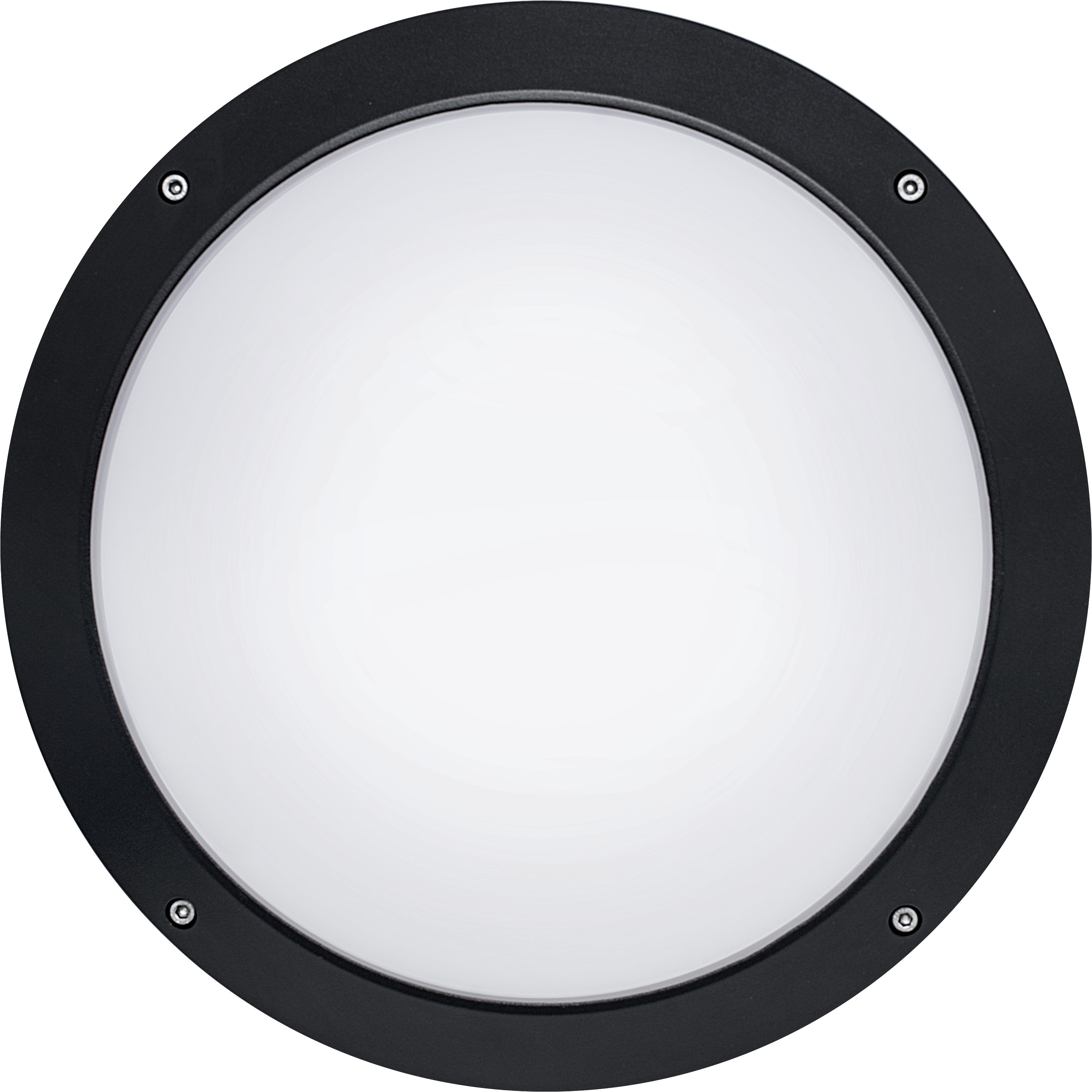

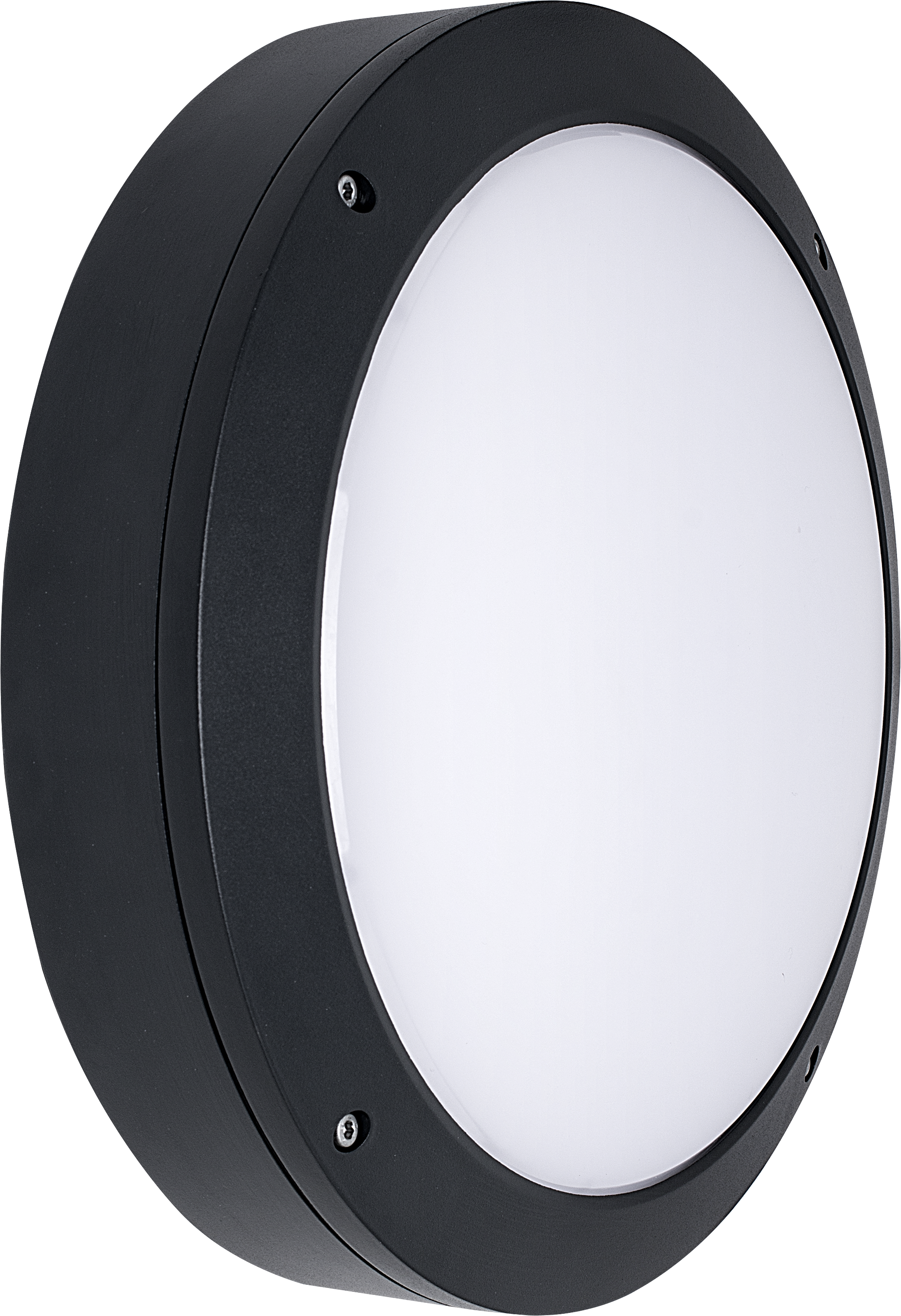

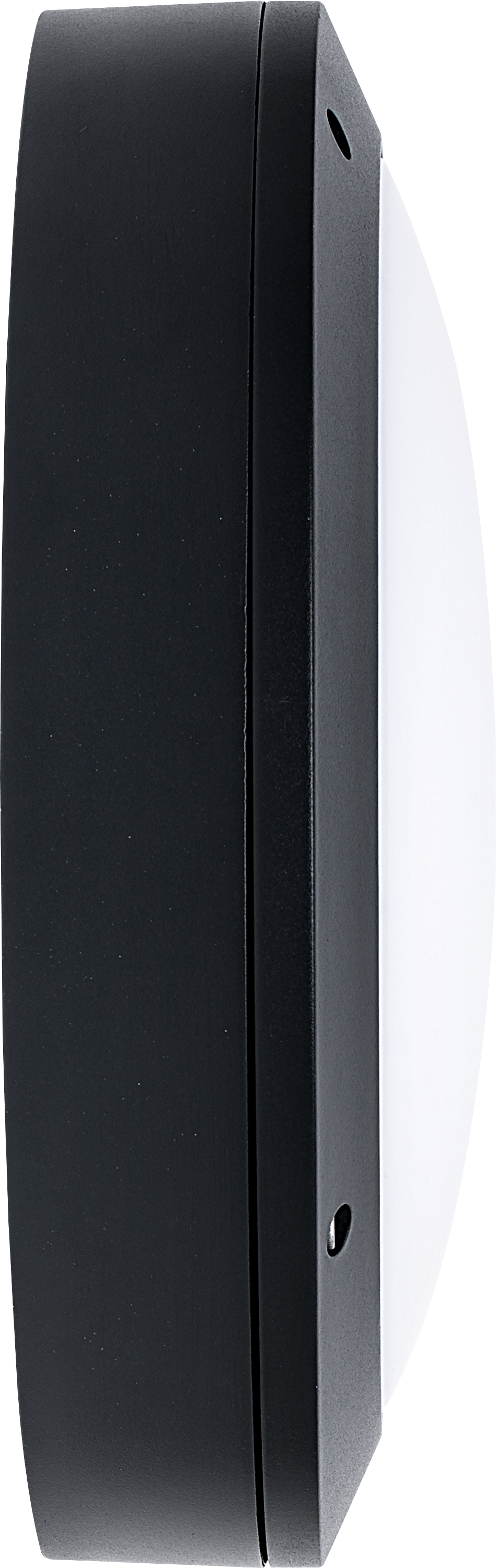

Atlas Extra Clear Face Cowl, 1,200lm (1,800lm Selectable) 12W (19W) 2,700K
Decorative external bulkhead with hooded or clearface options
High impact die-cast housing in in RAL 7016 anthracite grey

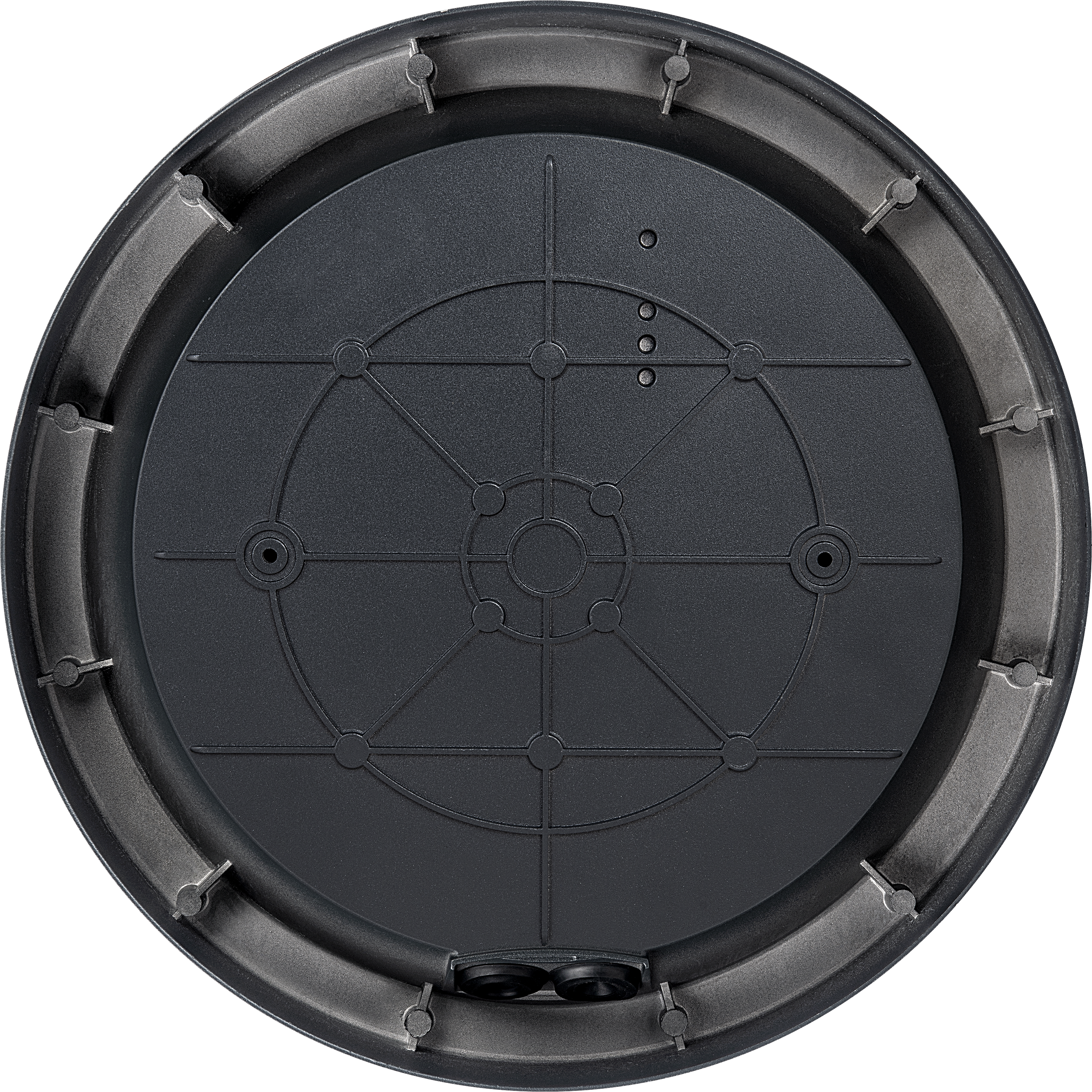

Surface mounted luminaire with rear central and top cable entry points
Emergency, colour temperature and photocell options all available
Easily switchable lumen outputs
Code | LBHXCLS27 |
Driver Type | Fixed Output |
Lumen Output (lm) | 1200/1800 |
Max Wattage (W) | 12/19 |
Efficacy (Lm/W) | 100/95 |
Colour Temp (CCT) (K) | 2700 |
CRI | >80 |
Standard Deviations of Colour Matching | <6 |
Base Colour | Anthracite Grey - RAL 7016 |
Onsite Warranty | Yes |
Unpacked Depth (mm) | 102.5 |
Unpacked Width (mm) | 0 |
Unpacked Height (mm) | 340 |
Unpacked Net Weight (kg) | 2.4 |
IP Rating | IP65 |
IK Rating | IK08 |
Cutout (mm) | N/A |
Lifetime (h) | 50000 |
L/B at Life | L70-B50 |
L70 Hours (h) | 55000 |
L80 Hours (h) | 34000 |
L90 Hours (h) | 16000 |
Operating Temperature (C) | -25°C to +40°C |
E-Class | Class2 |
Power Factor | >0.9 |
