Fortis
Fortis Wallpack incorporates a hinged gear tray for ease of installation, with emergency, dimmable and photocell options.

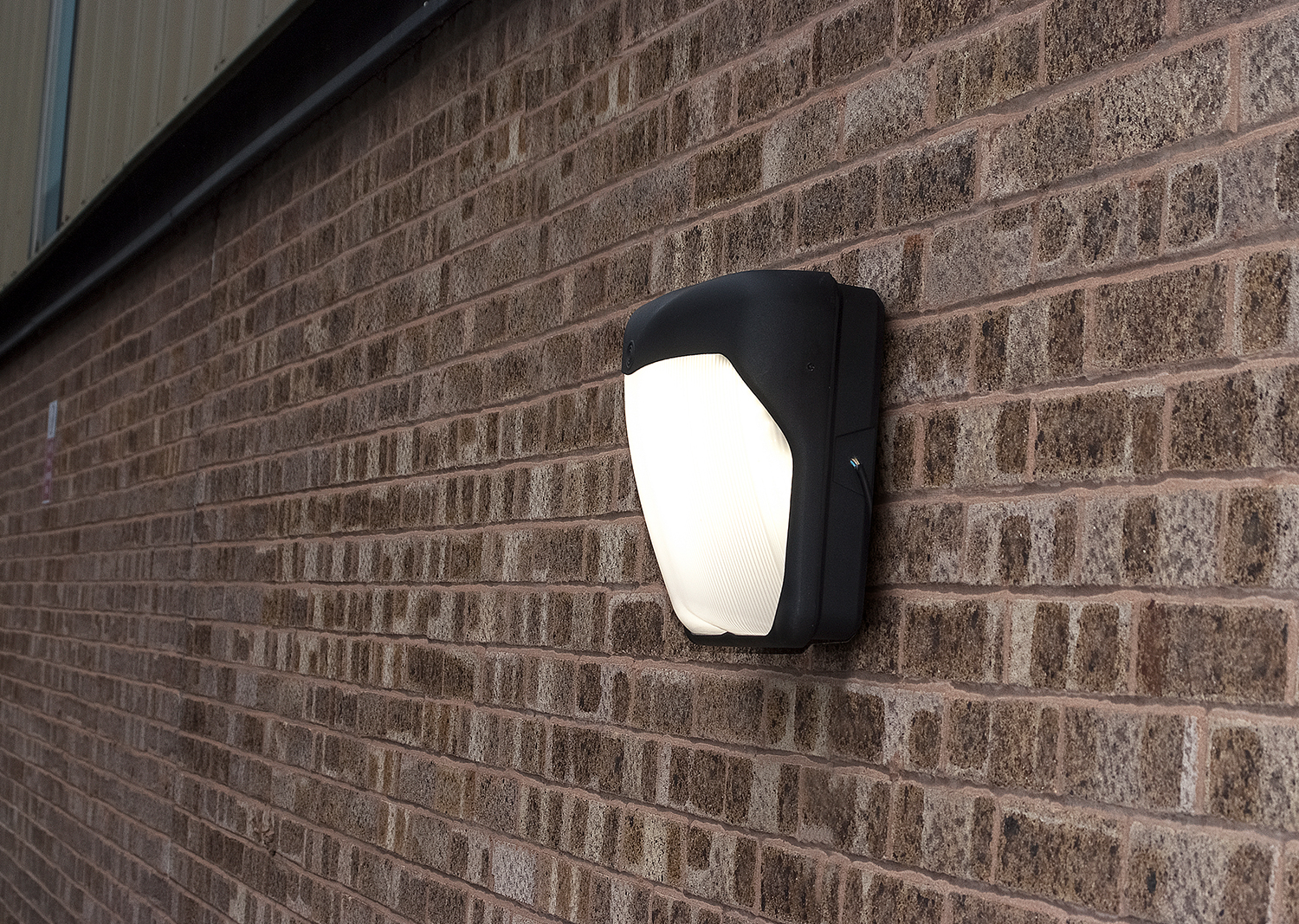

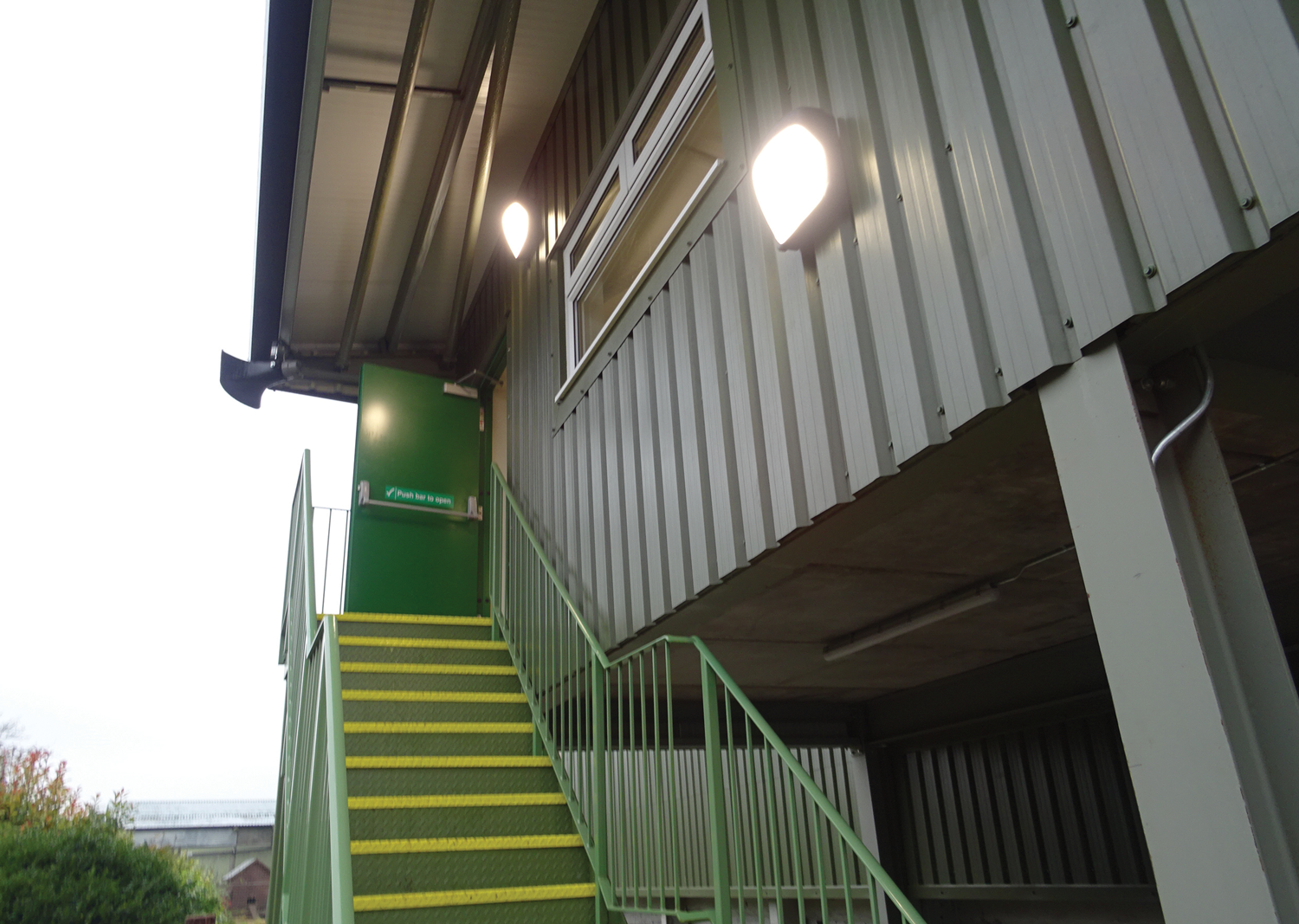

Fortis is a wall-mounted wallpack designed to replace HID with 6-1 space to height ratio designed to replace 70W son lamps for building perimeter illumination. The die-cast aluminium body, polycarbonate lens and anti-tamper screws all deliver a hardwearing and security focused solution. The range includes a choice of lumens from 1500-3500 Lumens. The IP65 rating and the RAL7016 finish ensure a solution that can withstand the elements.
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Add to Spec |
|---|---|---|---|---|---|
|
Code
LWF15S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
1500
|
Max Wattage (W)
15
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF15E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
1500
|
Max Wattage (W)
15
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF15D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
1500
|
Max Wattage (W)
15
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF15ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
1500
|
Max Wattage (W)
15
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF15S40PC
|
Driver Type
Fixed Output + Photocell
|
Lumen Output (lm)
1500
|
Max Wattage (W)
15
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF15E40PC
|
Driver Type
Fixed Output + Emergency + Photocell
|
Lumen Output (lm)
1500
|
Max Wattage (W)
15
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF35S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
3500
|
Max Wattage (W)
35
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF35E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
3500
|
Max Wattage (W)
35
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF35D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
3500
|
Max Wattage (W)
35
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF35ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
3500
|
Max Wattage (W)
35
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF35S40PC
|
Driver Type
Fixed Output + Photocell
|
Lumen Output (lm)
3500
|
Max Wattage (W)
35
|
Efficacy (Lm/W)
100
|
|
|
Code
LWF35E40PC
|
Driver Type
Fixed Output + Emergency + Photocell
|
Lumen Output (lm)
3500
|
Max Wattage (W)
35
|
Efficacy (Lm/W)
100
|
Specification
1
Items
View
Add To
Additional Product Options
We offer additional product options to give ultimate control and flexibility to match any application
Dimmable
Dimmable functionality provides a brilliant energy saving option to almost all industrial and commercial applications ensuring the correct light levels are maintained whilst only using the power that is needed to achieve this
Replace 'S' with 'E' - for example LWF15E40-02 becomes LWF15E40-02
Self-Test Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations.
Replace 'S' with 'D' - for example LWF15E40-02 becomes LWF15D40-02
DALI Addressable Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations.
3000K Colour Temperature
3000K light provides a warmer more comforting effect that can be preferred in many of applications including certain public areas and domestic settings
