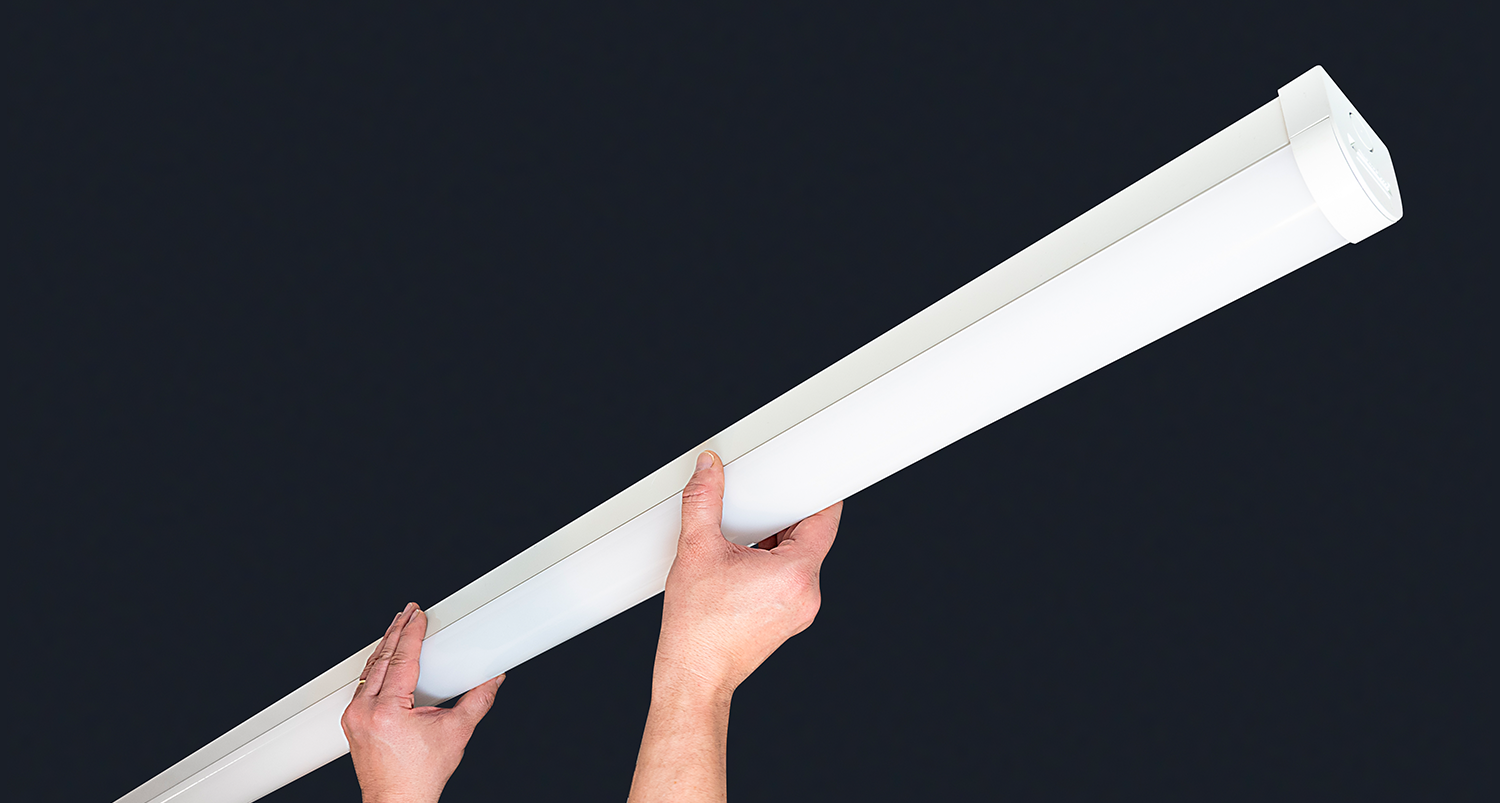

Luxpack Batten is a surface mounted linear batten with a robust steel constructed body. Offering BESA fixing points the large opal polycarbonate diffuser provided improved uniformity. Installation is made easy thanks to the quick slide release tabs which delivers straightforward plug and play fitting of the hinged LED diffuser.
Selectable CCT of 3000K,4000K and 6500K available to suit application

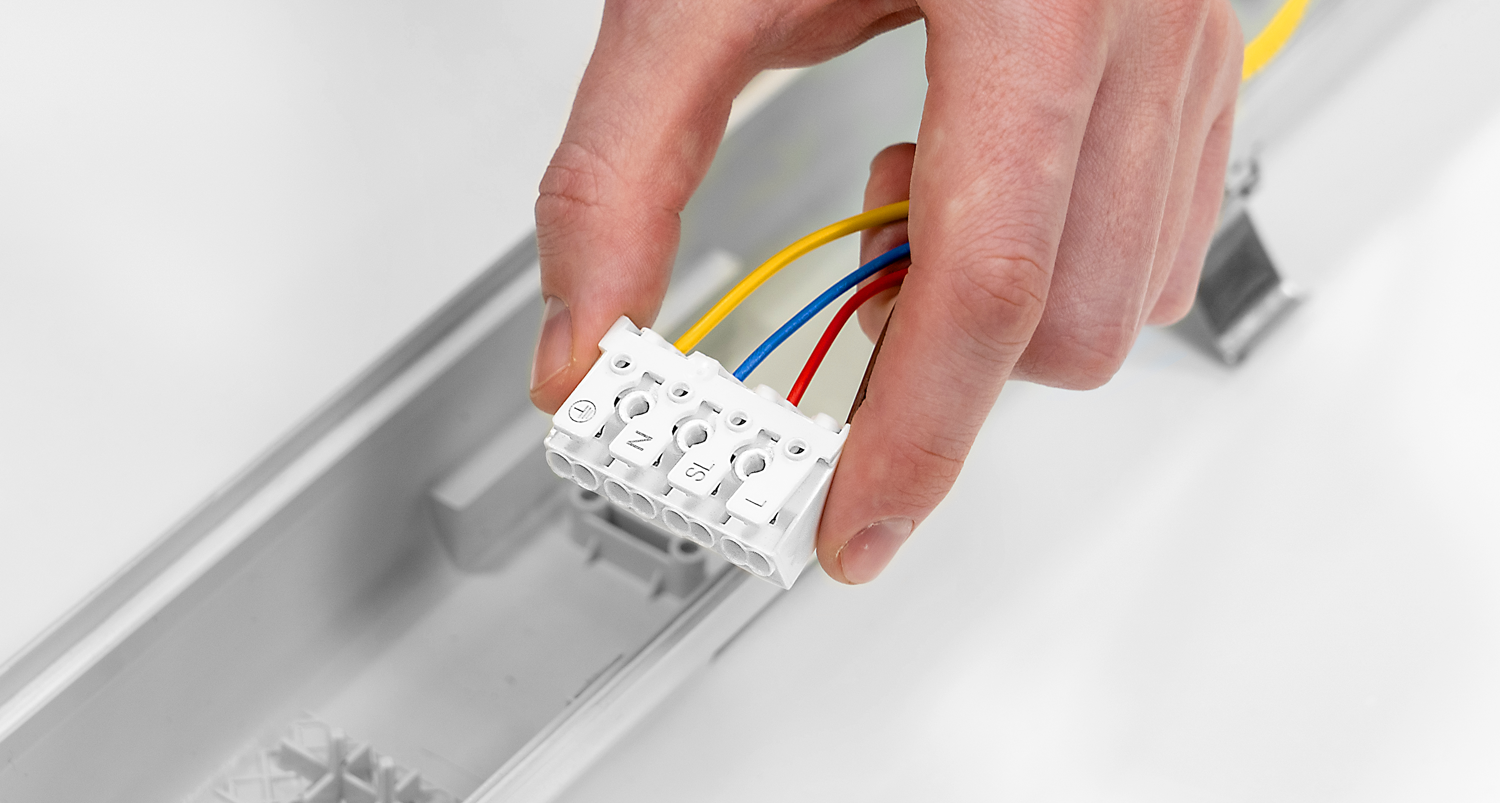

Plug 'n' Play Emergency Pack & Microwave sensor available, easily installable on site.

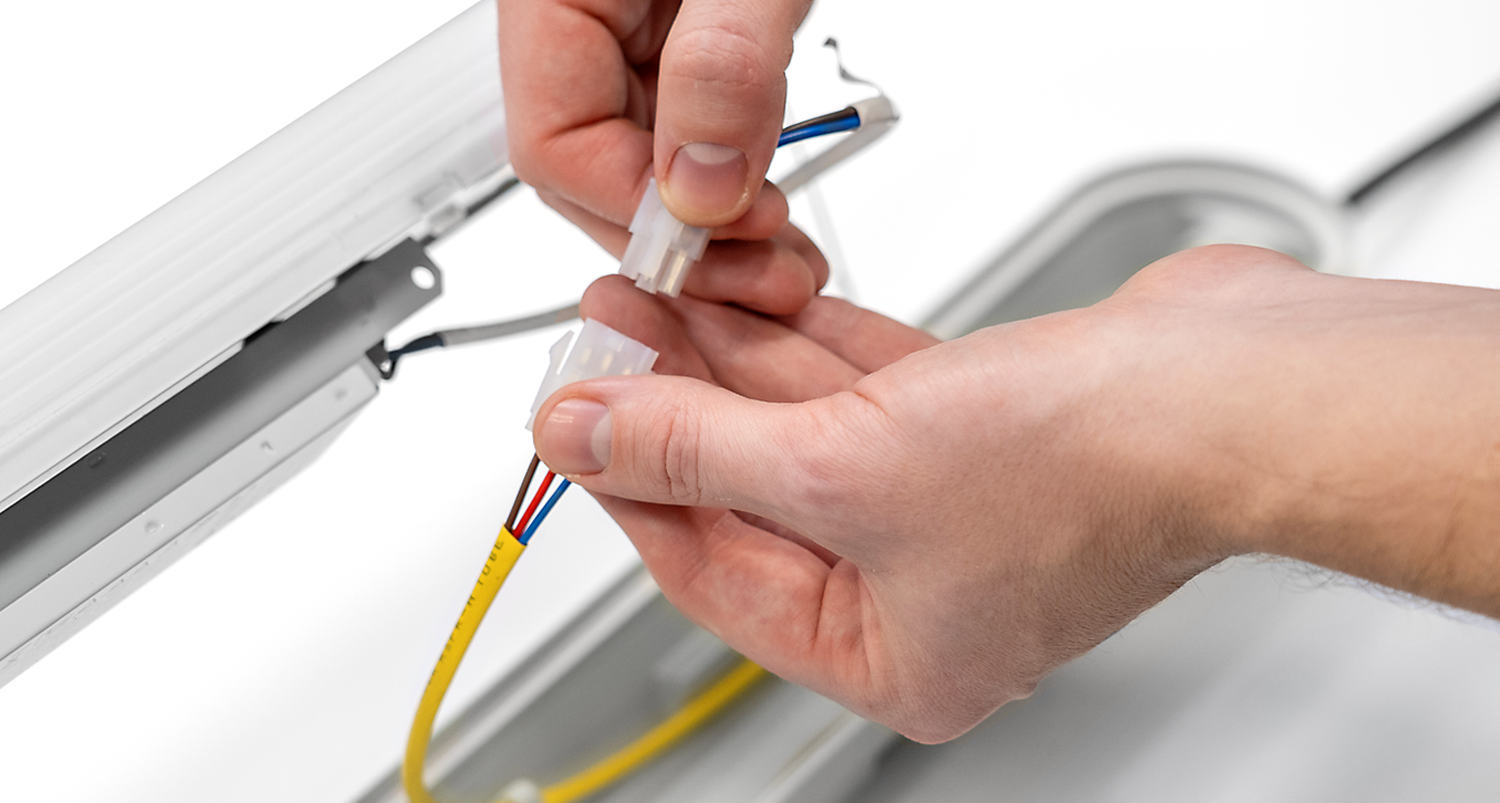

Replaceable driver & LED Array offering sustainability and the ability to replace failed parts on a modular basis.
Sliding release tabs for fast and easy installation of SpeedFit diffuser
Adjustable Colour.
Adjustable Power.
In-built selectors allow for effortless adaptation to varying lighting needs, whether you seek a vibrant, well-lit atmosphere or a more subdued, energy-conscious ambience. Seamlessly switch between power outputs and colour temperatures using a single switch, providing users with unprecedented control over their lighting environment.
3000K Warm White
4000K Cool White
6500K Daylight
Code | Driver Type | Colour Temp (CCT) (K) | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Add to Spec |
---|---|---|---|---|---|---|
Code
LXB12WL40
|
Driver Type
Fixed Output
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
2400/4800
|
Max Wattage (W)
20/40
|
Efficacy (Lm/W)
120/120
|
|
Code
LXB12WLCC
|
Driver Type
Fixed Output
|
Colour Temp (CCT) (K)
3000, 4000, 6500
|
Lumen Output (lm)
2400/4800
|
Max Wattage (W)
20/40
|
Efficacy (Lm/W)
120/120
|
|
Code
LXB12WLE40
|
Driver Type
Fixed Output + Emergency
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
2400/4800
|
Max Wattage (W)
20/40
|
Efficacy (Lm/W)
120/120
|
|
Code
LXB12WLECC
|
Driver Type
Fixed Output + Emergency
|
Colour Temp (CCT) (K)
3000, 4000, 6500
|
Lumen Output (lm)
2400/4800
|
Max Wattage (W)
20/40
|
Efficacy (Lm/W)
120/120
|
