luweb-b 20220421JW
ItemLifetime 50000
PackageWarranty 5
ItemIPRating IP65
ItemIKRating 10
ItemColourTemp 4000
ItemCRI 80

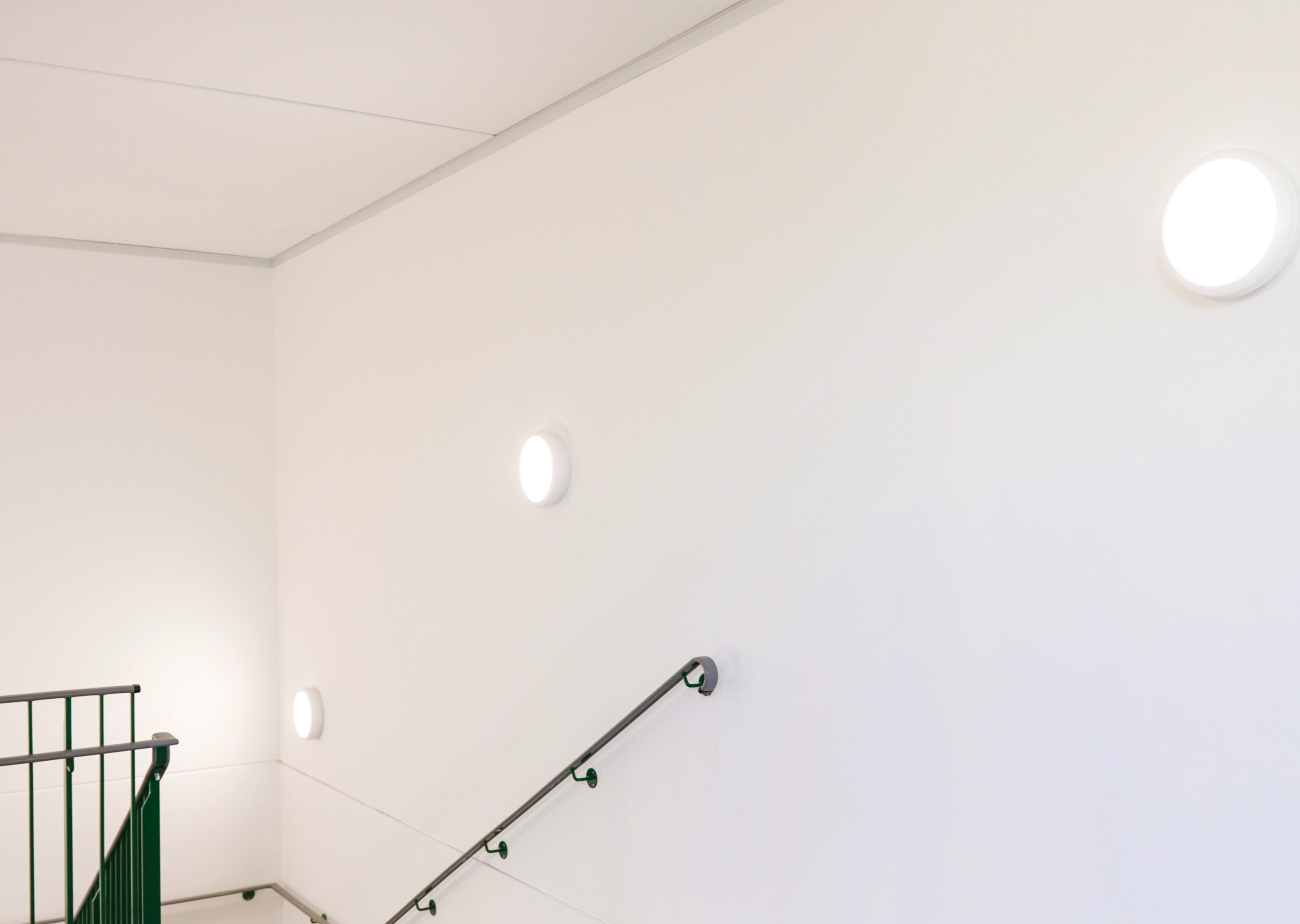

Anti-ligature Atlas bulkhead prevents vulnerable people from accidentally or intentionally self-harming, perfect for bedrooms or bathrooms within patient applications

Anti-ligature bulkhead for use in secure environments. Circular spun steel bulkhead suitable where access to the fitting is expressly limited to authorizes persons

Wall or ceiling mounted and counter sunk screws secure the luminaire

Dimmable, emergency and self-test options available

Code Driver Type Lumen Output (lm) Max Wattage (W) Efficacy (Lm/W) Add to Spec
Code
LBHAL224K
Driver Type
Fixed Output
Lumen Output (lm)
2160
Max Wattage (W)
15
Efficacy (Lm/W)
144
Add to Spec Remove from Spec Processing
Code
LBHAL224K3M
Driver Type
Fixed Output + Emergency
Lumen Output (lm)
2160
Max Wattage (W)
15
Efficacy (Lm/W)
144
Add to Spec Remove from Spec Processing
Code
LBHAL294K
Driver Type
Fixed Output
Lumen Output (lm)
2960
Max Wattage (W)
20
Efficacy (Lm/W)
148
Add to Spec Remove from Spec Processing
Code
LBHAL294K3M
Driver Type
Fixed Output + Emergency
Lumen Output (lm)
2960
Max Wattage (W)
20
Efficacy (Lm/W)
148
Add to Spec Remove from Spec Processing
Specification
1 Items
View

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

Switch Dimmable

Dimmable functionality provides a brilliant energy saving option to almost all industrial and commercial applications ensuring the correct light levels are maintained whilst only using the power that is needed to achieve this. Insert D, eg. LBHAL22D4K





Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Insert EST, eg. LBHAL224K3MST





DALI Dimmable Driver

Dimmable functionality provides a brilliant energy saving option to almost all industrial and commercial applications ensuring the correct light levels are maintained whilst only using the power that is needed to achieve this. Insert DA, eg. LBHAL22DA4K





Night Light

Insert NL, eg. LBHAL224KNL
