LBCMSCC-03

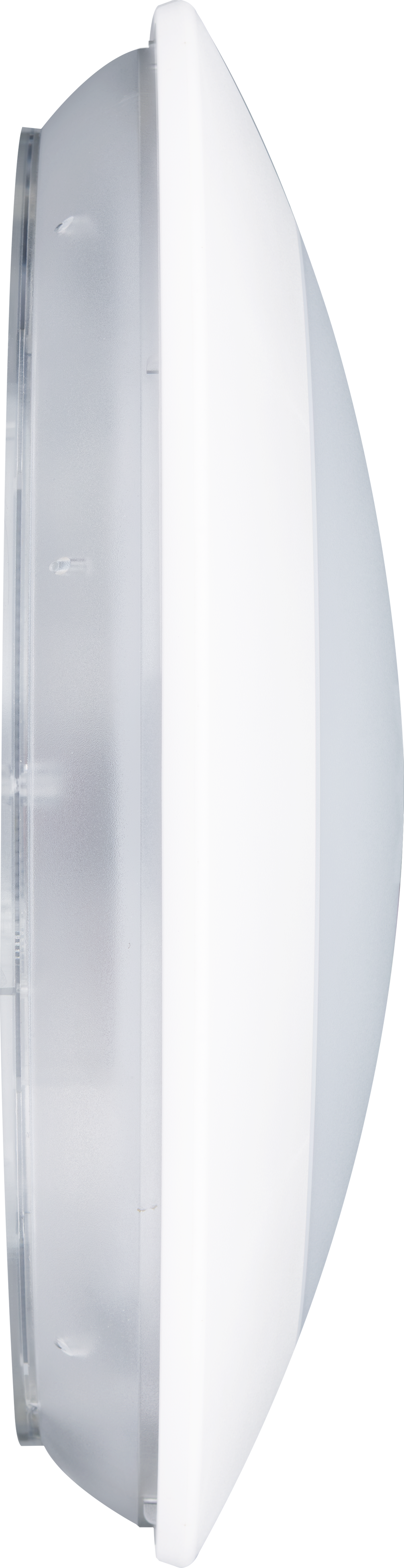

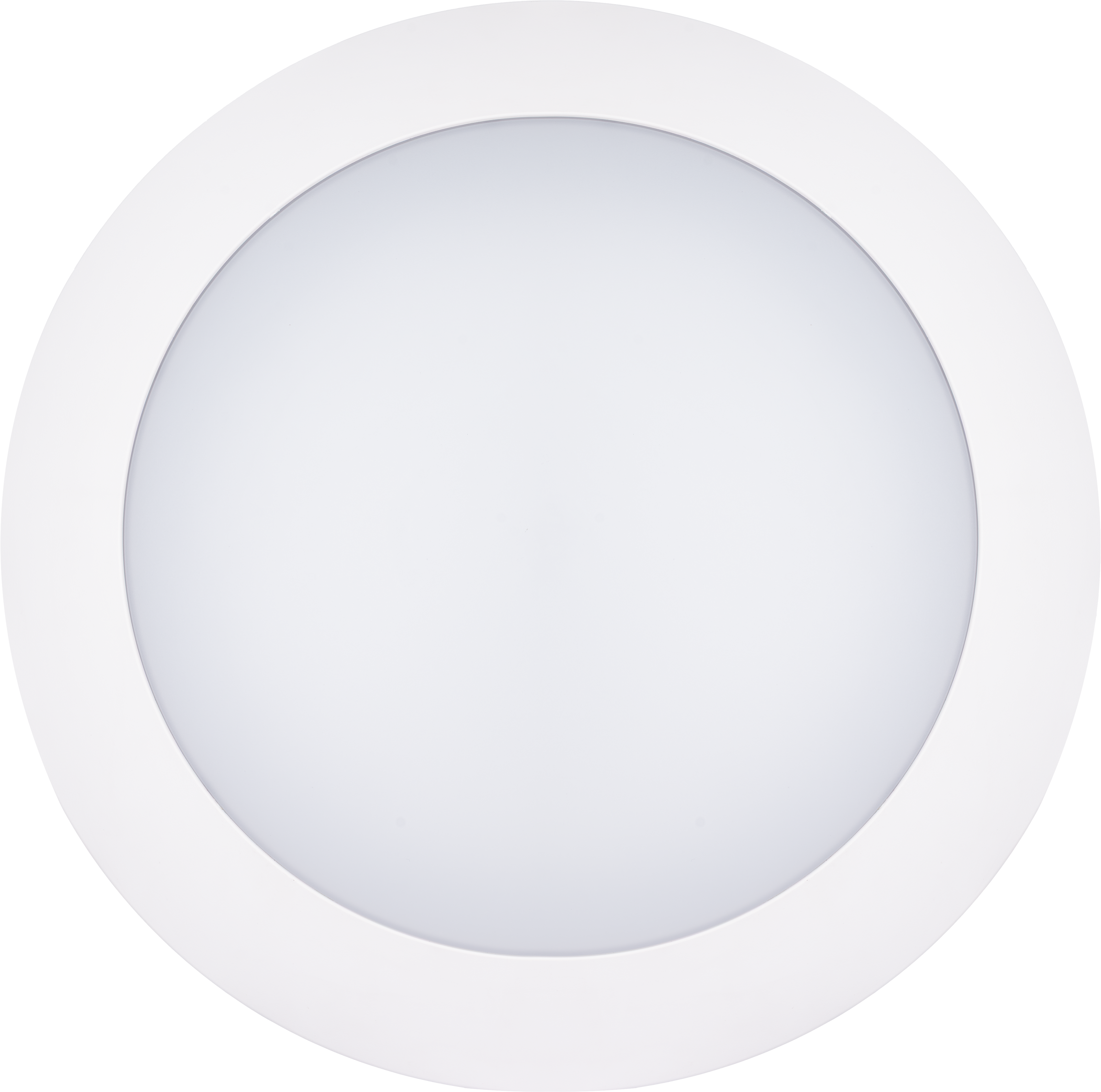

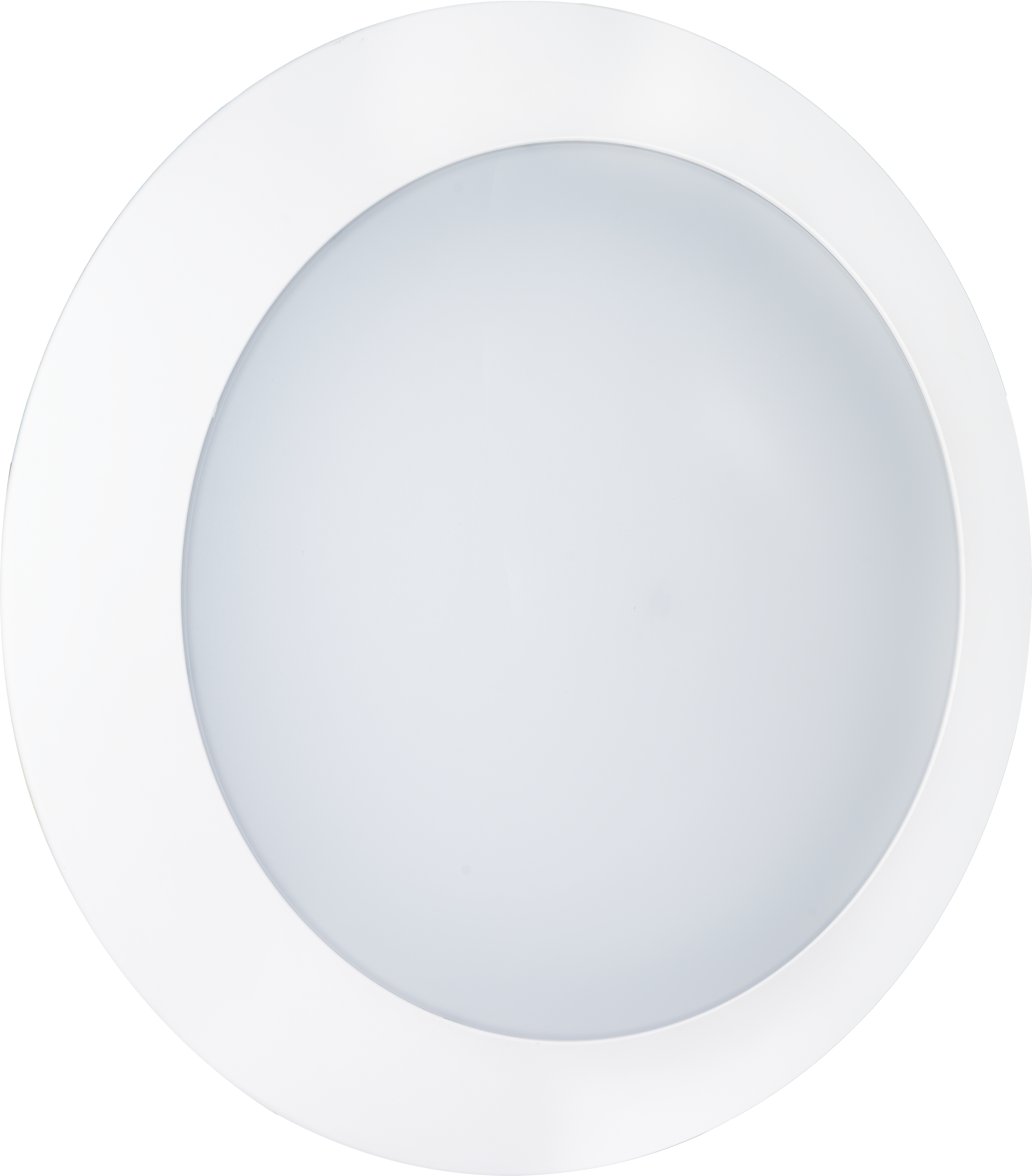

Celeste IP65 bulkhead power change 2200lm 16W (selectable 1250lm 9W/ 3200lm 23W) 4000K (selectable 3000K) fixed output
Technical Data
| Code | LBCMSCC |
| Driver Type | Fixed Output |
| Lumen Output (lm) | 1250/2200/3200 |
| Max Wattage (W) | 9/16/23 |
| Efficacy (Lm/W) | 139/138/139 |
| Colour Temp. (K) | 3000, 4000 |
| CRI | >80 |
| Standard Deviations of Colour Matching | <3 |
| Base Colour | White - RAL 9016 (Traffic White) |
| Onsite Warranty | Yes |
Dimensions and Installation
| Product Depth (mm) | 0 |
| Product Width (mm) | 445 |
| Product Height (mm) | 108 |
| Product Weight (kg) | 1.74 |
| IP Rating | IP65 |
| IK Rating | IK08 |
Performance & Safety
| Lifetime (h) | 100000 |
| L/B at Life | L80-B10 |
| L70 Hours (h) | 100000 |
| L80 Hours (h) | 100000 |
| Operating Temperature (°C) | -25 to +40 |
| E-Class | Class2 |
| Power Factor | >0.9 |
