EBER10P40-01

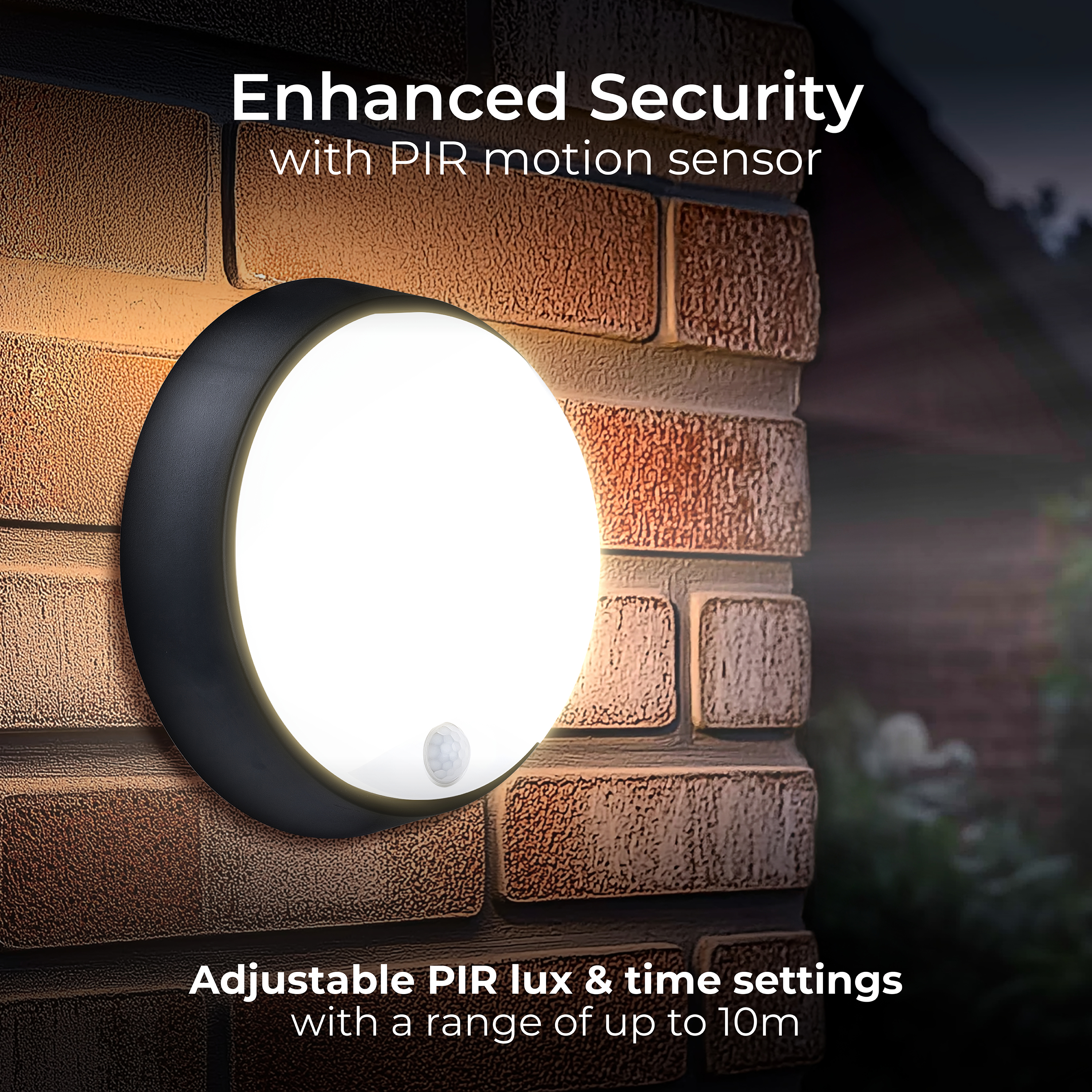

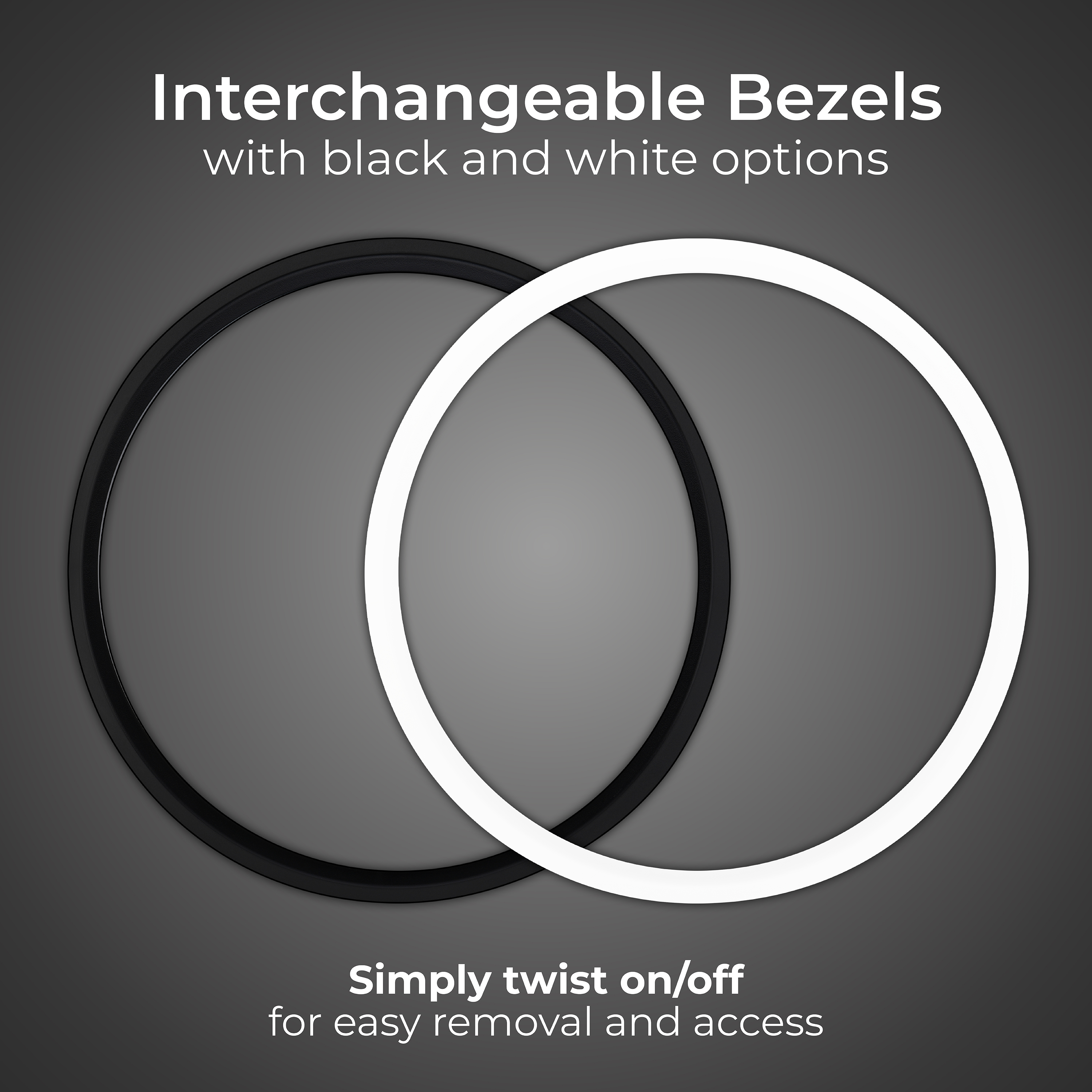

Exterior residential bulkhead round 700lumens with white or black bezel + PIR
Technical Data
| Code | EBER10P40 |
| Driver Type | Fixed Output + Sensor |

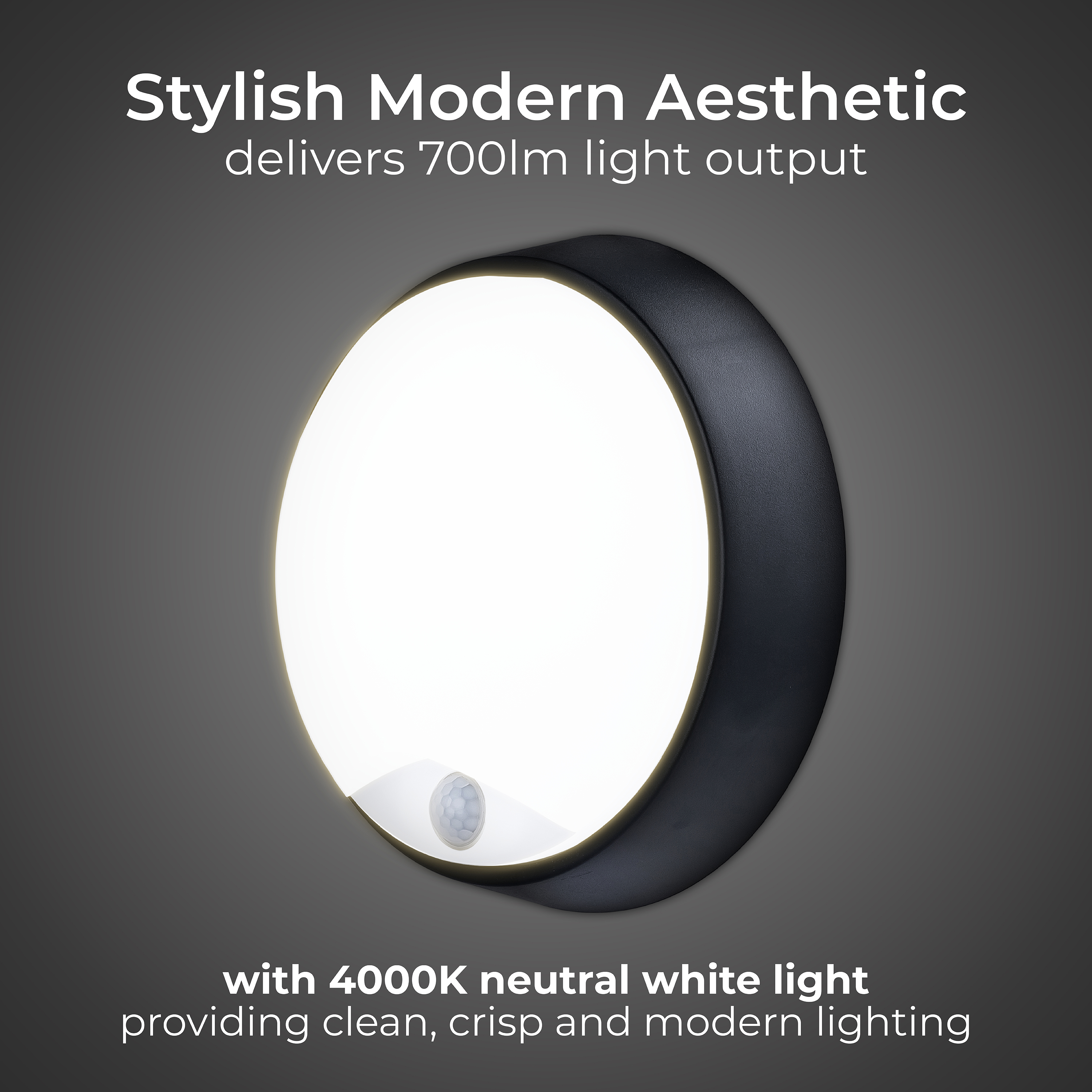

| Lumen Output (lm) | 700 |
| Max Wattage (W) | 10 |
| Efficacy (Lm/W) | 70 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Base Colour | Black |
Dimensions and Installation
| Product Depth (mm) | 218 |
| Product Width (mm) | 0 |
| Product Height (mm) | 85 |
| Product Weight (kg) | 0.466 |
| IP Rating | IP54 |
| IK Rating | IK04 |
| Cutout (mm) | NA |
Performance & Safety
| Lifetime (h) | 25000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 25000 |
| L80 Hours (h) | 0 |
| L90 Hours (h) | 0 |
| Operating Temperature (C) | -25°C to +40°C |
| Power Factor | >0.5 |
| UGR 4H 8H | TBC |
