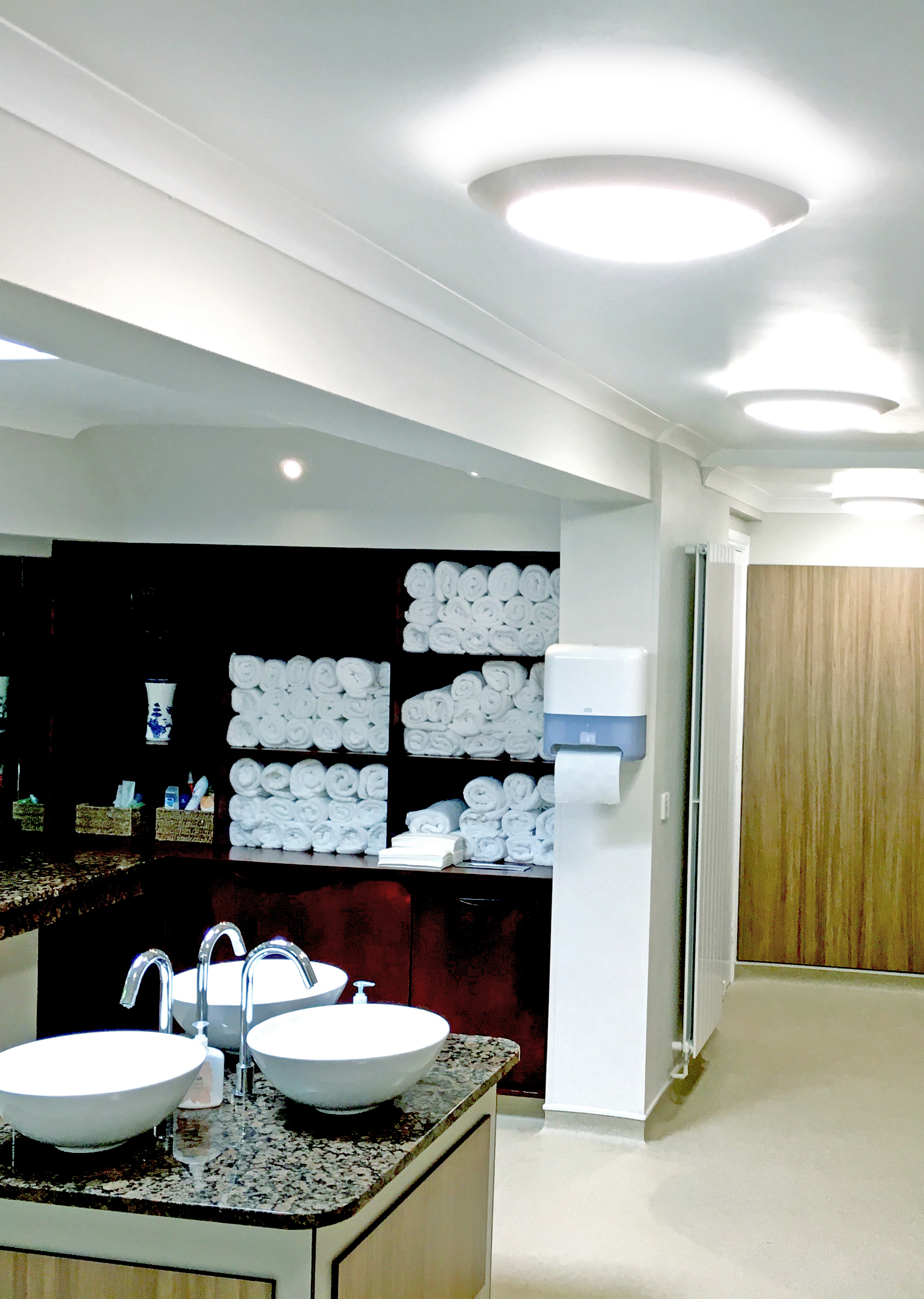

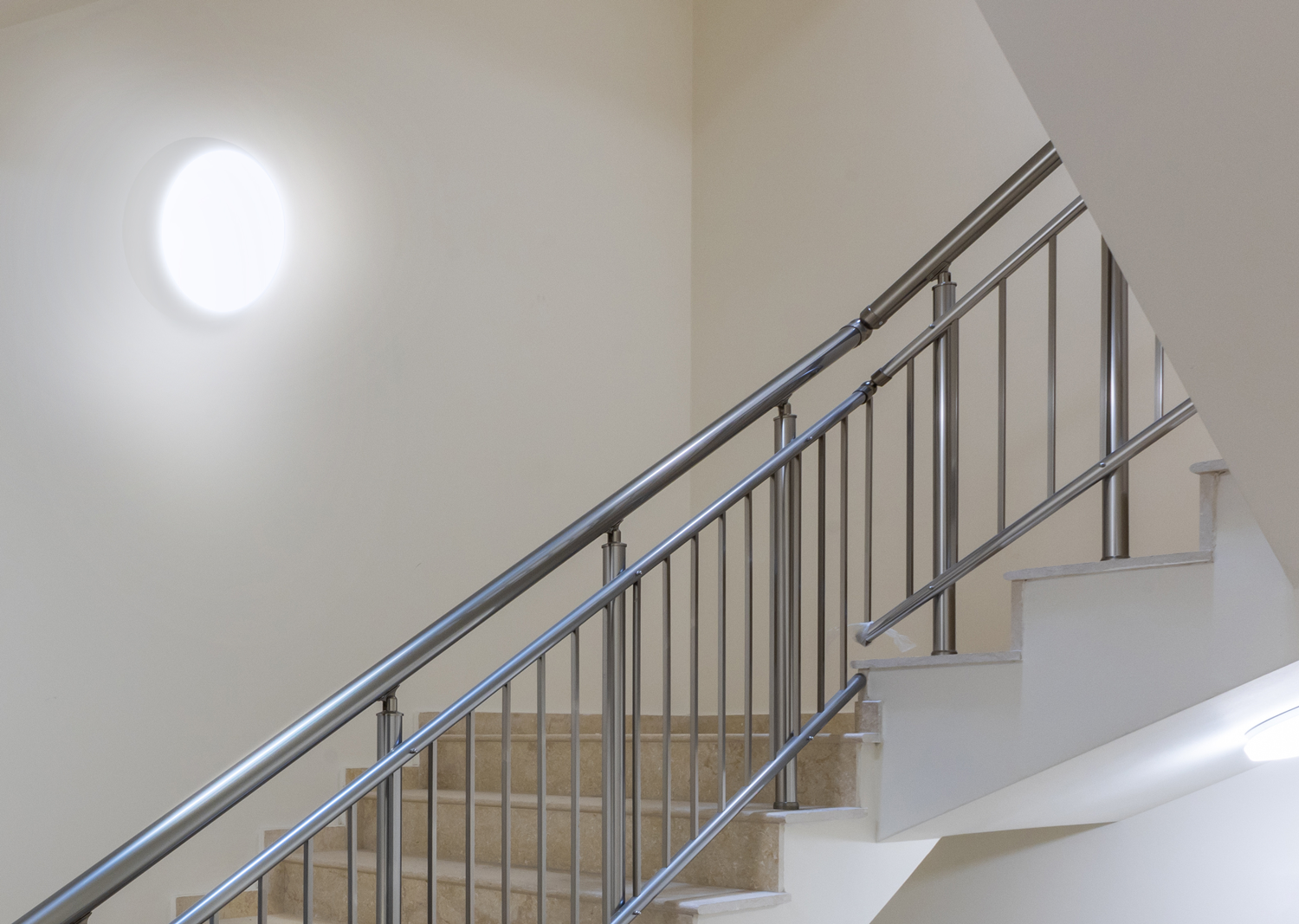

A surface mounted bulkhead, Sierra is suitable for installation in many communal areas including corridors and stairwells. The polycarbonate base and diffuser offer increased durability. The 2000 lumen option provides optimal light for circulation areas, which is equivalent to 38W 2D.
Decorative interior bulkhead ideal for commercial applications. Polished Chrome trim accessory available, White as standard
Polycarbonate base and diffuser for increased durability
Microwave control and emergency versions available
We offer additional product options to give ultimate control and flexibility to match any application
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Insert EST, eg. LBSR33W20EST40
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Insert DED, eg. LBSR33W20DED40
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Add to Spec |
|---|---|---|---|---|---|
|
Code
LBSR33W12S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
1200
|
Max Wattage (W)
12
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W12E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
1200
|
Max Wattage (W)
12
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W12D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
1200
|
Max Wattage (W)
12
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W12S40MW
|
Driver Type
Integral Microwave Sensor
|
Lumen Output (lm)
1200
|
Max Wattage (W)
12
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W12E40MW
|
Driver Type
Integral Microwave Sensor + Em
|
Lumen Output (lm)
1200
|
Max Wattage (W)
12
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W20S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2000
|
Max Wattage (W)
20
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W20E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
2000
|
Max Wattage (W)
20
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W20D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2000
|
Max Wattage (W)
20
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W20ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
2000
|
Max Wattage (W)
20
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W20S40MW
|
Driver Type
Integral Microwave Sensor
|
Lumen Output (lm)
2000
|
Max Wattage (W)
20
|
Efficacy (Lm/W)
100
|
|
|
Code
LBSR33W20E40MW
|
Driver Type
Integral Microwave Sensor + Em
|
Lumen Output (lm)
2000
|
Max Wattage (W)
20
|
Efficacy (Lm/W)
100
|
