RA OFF
PackageWarranty 5
ItemLumenOutput 3100
ItemLifetime 100000
ItemCRI 80
ItemColourTemp 4000

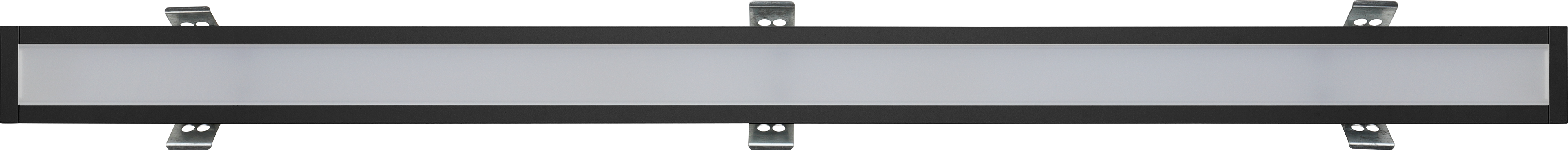

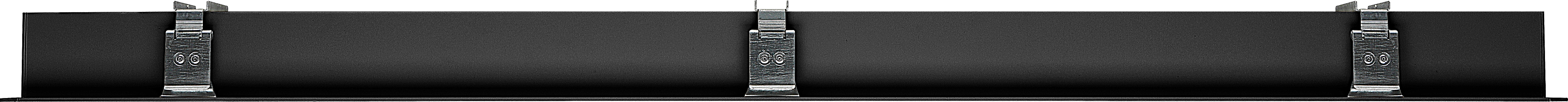

Direct Recessed continuous line of light 1500mm module

Very Efficient LEDs achieving 111Llm/W

Neutral white 4000k CCT with SDCM <3

Fixed output control gear

LCOFB fixing brackets required for continuous mounting LCOCC wiring connector required one per electrical connection

0

Technical Data

Code LCOT15BO30S40
Driver Type Fixed Output
Lumen Output (lm) 3100
Max Wattage (W) 28
Efficacy (Lm/W) 111
Colour Temp (CCT) (K) 4000
CRI >80
Standard Deviations of Colour Matching <3
Base Colour Black - RAL9005 (Jet Black)
Onsite Warranty Yes

Dimensions and Installation

Unpacked Depth (mm) 1442
Unpacked Width (mm) 90
Unpacked Height (mm) 94
Unpacked Net Weight (kg) 4.49
IP Rating IP40
IK Rating IK04
Cutout (mm) L-1414 x W-67

Performance & Safety

Lifetime (h) 100000
L/B at Life L70-B50
L70 Hours (h) 100000
L80 Hours (h) 50000
L90 Hours (h) 25000
Operating Temperature (C) -20°C to +25°C
E-Class Class1
Power Factor >0.9
UGR 4H 8H <25
Fire Rating Not Applicable
