Luceco LuxFrame
ItemLifetime 50000
PackageWarranty 5
ItemIPRating IP40
ItemColourTemp 4000
ItemCRI 80
ItemComplianceUKCA True

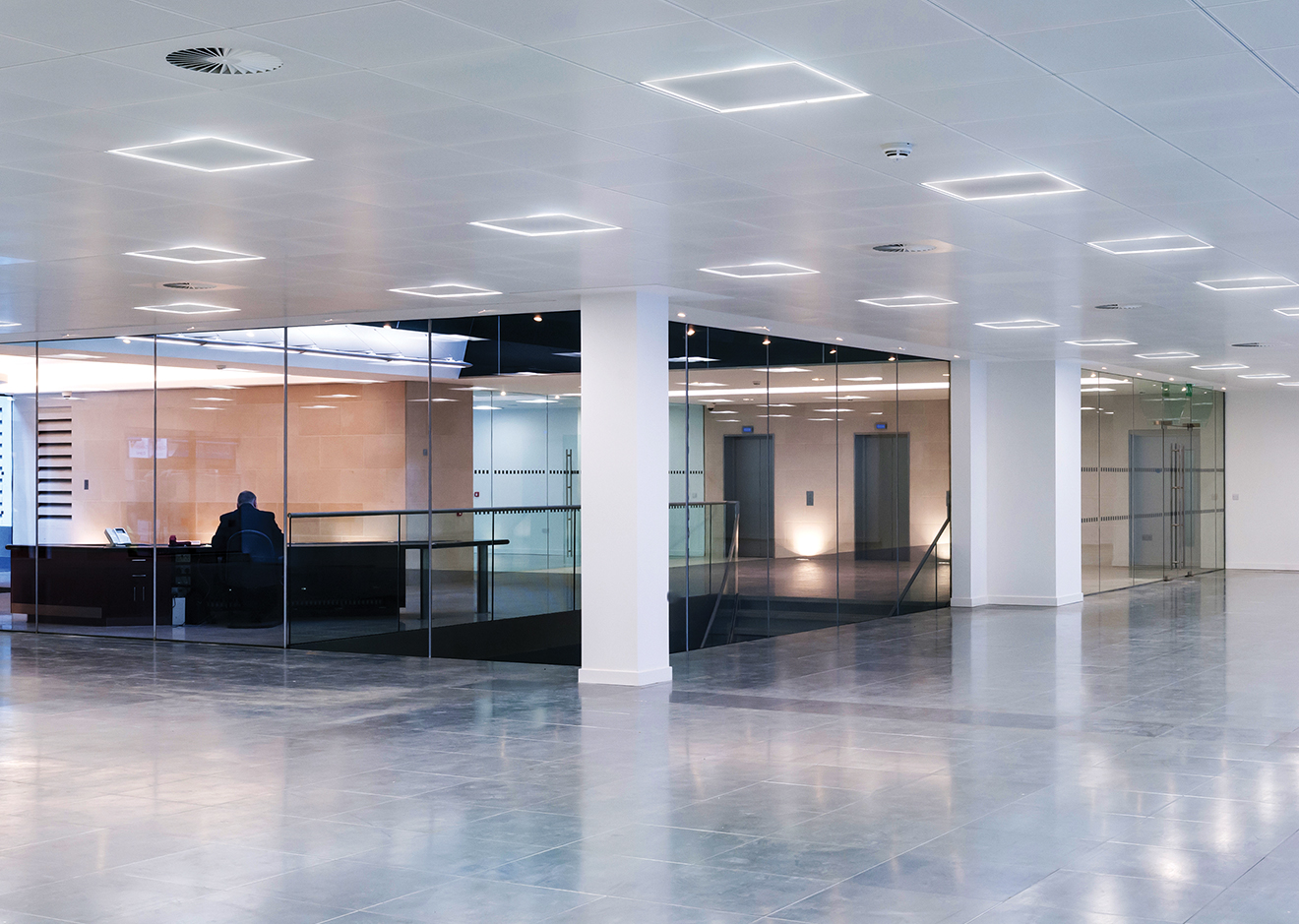

Designed to deliver functional general lighting in an architecturally interesting way the LuxFrame Panel offers a solution which is that little bit different. The panel is semi-recessed mounted in 15mm or 24mm exposed grid ceilings with the ceiling tile placed onto the fixture. The LuxFrame Panel is backed up by Luceco’s 5-year warranty.

Extruded aluminium profile with microprism or opal diffuser

Designed to deliver functional general lighting in an architectural interesting way for areas that welcome something different

Semi recessed mounted in 15mm or 24mm exposed grid ceilings. Ceiling tile is placed back on top of fixture maintaining the fire barrier

Code Driver Type Lumen Output (lm) Max Wattage (W) Efficacy (Lm/W) Standard Deviations of Colour Matching L/B at Life Add to Spec
Code
LPSF66W20S40
Driver Type
Fixed Output
Lumen Output (lm)
2000
Max Wattage (W)
22
Efficacy (Lm/W)
91
Standard Deviations of Colour Matching
<6
L/B at Life
L70-B10
Add to Spec Remove from Spec Processing
Code
LPSF66W20D40
Driver Type
Digital Dimmable
Lumen Output (lm)
2000
Max Wattage (W)
22
Efficacy (Lm/W)
91
Standard Deviations of Colour Matching
<6
L/B at Life
L70-B10
Add to Spec Remove from Spec Processing
Code
LPSF66W28S40
Driver Type
Fixed Output
Lumen Output (lm)
2800
Max Wattage (W)
31
Efficacy (Lm/W)
90
Standard Deviations of Colour Matching
<6
L/B at Life
L70-B10
Add to Spec Remove from Spec Processing
Code
LPSF66W28D40
Driver Type
Digital Dimmable
Lumen Output (lm)
2800
Max Wattage (W)
31
Efficacy (Lm/W)
90
Standard Deviations of Colour Matching
<6
L/B at Life
L70-B10
Add to Spec Remove from Spec Processing
Code
LPSF66W35S40
Driver Type
Fixed Output
Lumen Output (lm)
3500
Max Wattage (W)
41
Efficacy (Lm/W)
85
Standard Deviations of Colour Matching
<6
L/B at Life
L70-B10
Add to Spec Remove from Spec Processing
Code
LPSF66W35D40
Driver Type
Digital Dimmable
Lumen Output (lm)
3500
Max Wattage (W)
41
Efficacy (Lm/W)
85
Standard Deviations of Colour Matching
<6
L/B at Life
L70-B10
Add to Spec Remove from Spec Processing
Specification
1 Items
View

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

Remote Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's remote emergency pack provides 3 hours worth of back-up power to enable this to happen meeting all standards and regulations. Product Code; LED3EP80

Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Product Code; LED3EP80EST

DALI Addressable Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Product Code; LED3EP80DED
