LuxPanel Backlit
Our flagship ranges of Backlit LED Panel solutions with TPa rated diffusers and IP65 protected options
Backlit LED panels mount the modules to the back of the panel's body allowing direct downward distribution from the modules themselves. Due to the direct light there is no requirement for an LGP. This allows a backlit panel to offer an increased performance in terms of lumen per watt and balanced light distribution
Backlit LED module with high efficiency optical design offering efficacy up to 145 Llm/cW

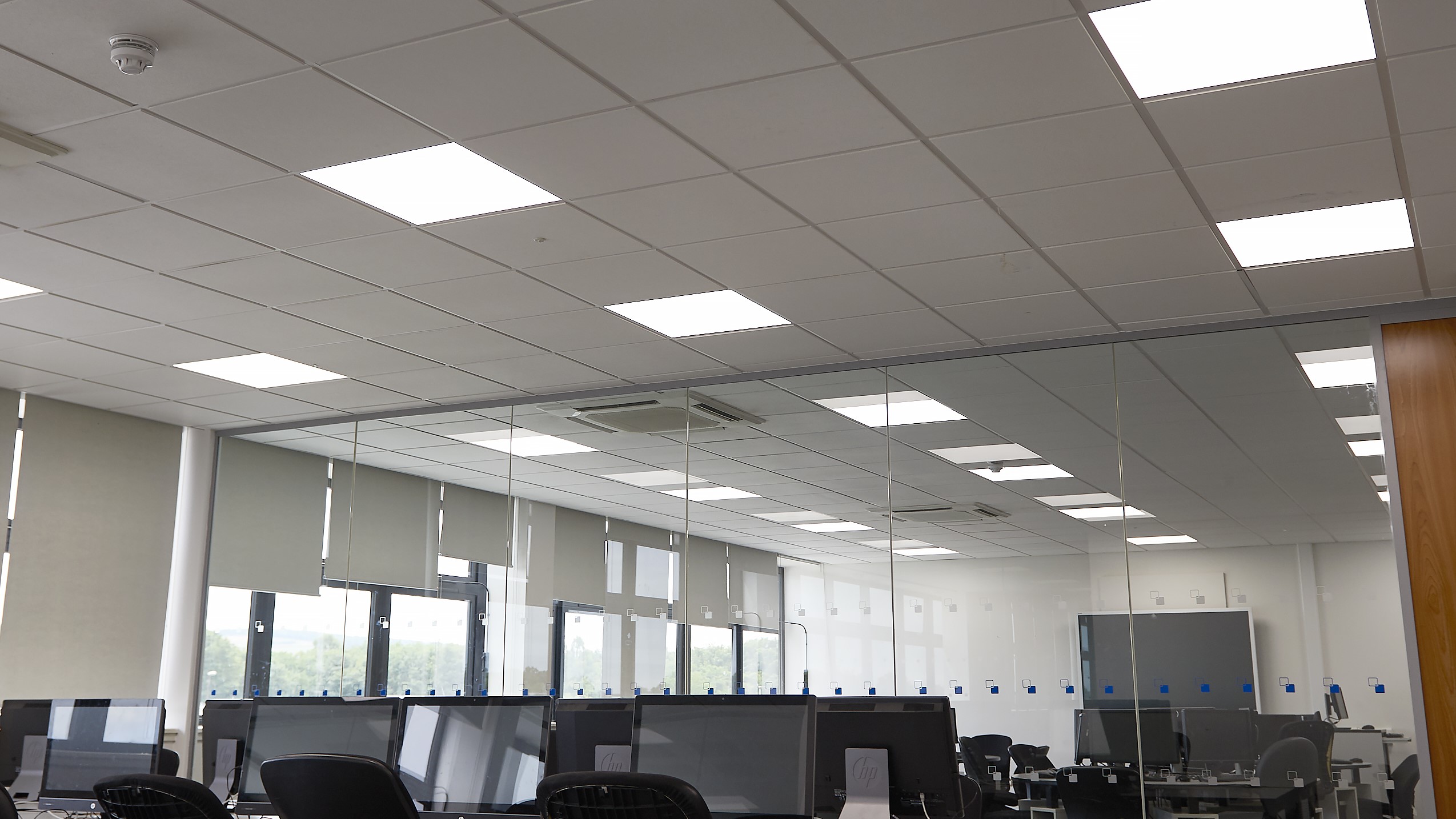

Recessed mounted suitable for use in 15mm or 24mm standard exposed ceiling grids
TPa rated diffuser, UGR19 compliant, and Plug-and-Play ENEC loop in-loop out driver
RAL9016 painted white finish with 600x600 & 1200x300mm models available
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Standard Deviations of Colour Matching | L/B at Life | Add to Spec |
|---|---|---|---|---|---|---|---|
|
Code
LBX66W20S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2000
|
Max Wattage (W)
14
|
Efficacy (Lm/W)
143
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W20D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2000
|
Max Wattage (W)
14
|
Efficacy (Lm/W)
143
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W28S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2800
|
Max Wattage (W)
19
|
Efficacy (Lm/W)
147
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W28D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2800
|
Max Wattage (W)
19
|
Efficacy (Lm/W)
147
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W35S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
3500
|
Max Wattage (W)
24
|
Efficacy (Lm/W)
146
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W35D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
3500
|
Max Wattage (W)
24
|
Efficacy (Lm/W)
146
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W42S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
4200
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
145
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LBX66W42D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
4200
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
145
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
Specification
4
Items
View
Add To
Additional Product Options
We offer additional product options to give ultimate control and flexibility to match any application
Remote Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's remote emergency pack provides 3 hours worth of back-up power to enable this to happen meeting all standards and regulations. Product Code; LED3EP80
Self-Test Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Product Code; LED3EP80EST
DALI Addressable Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Product Code; LED3EP80DED
