PTF6WCCT-01

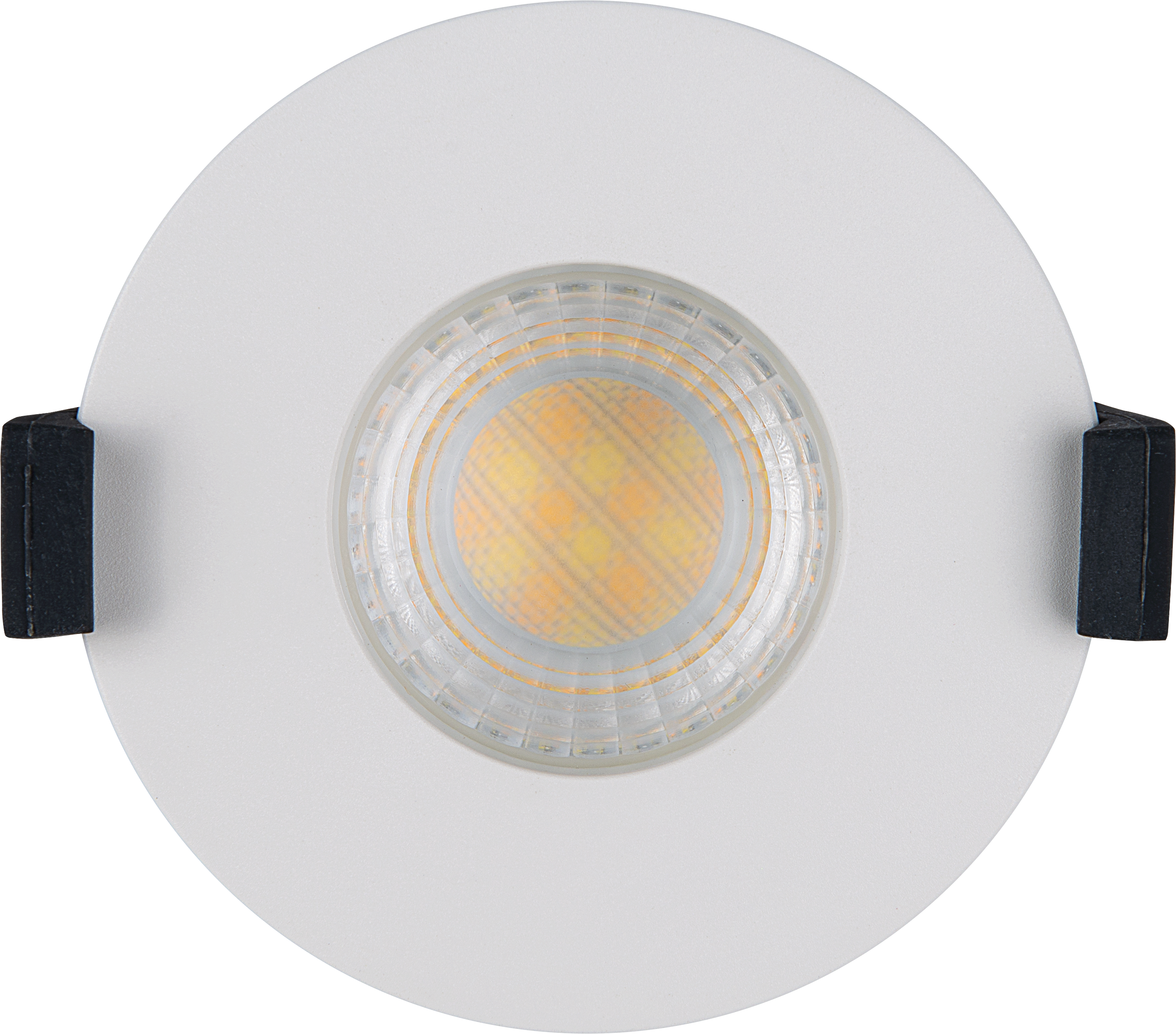

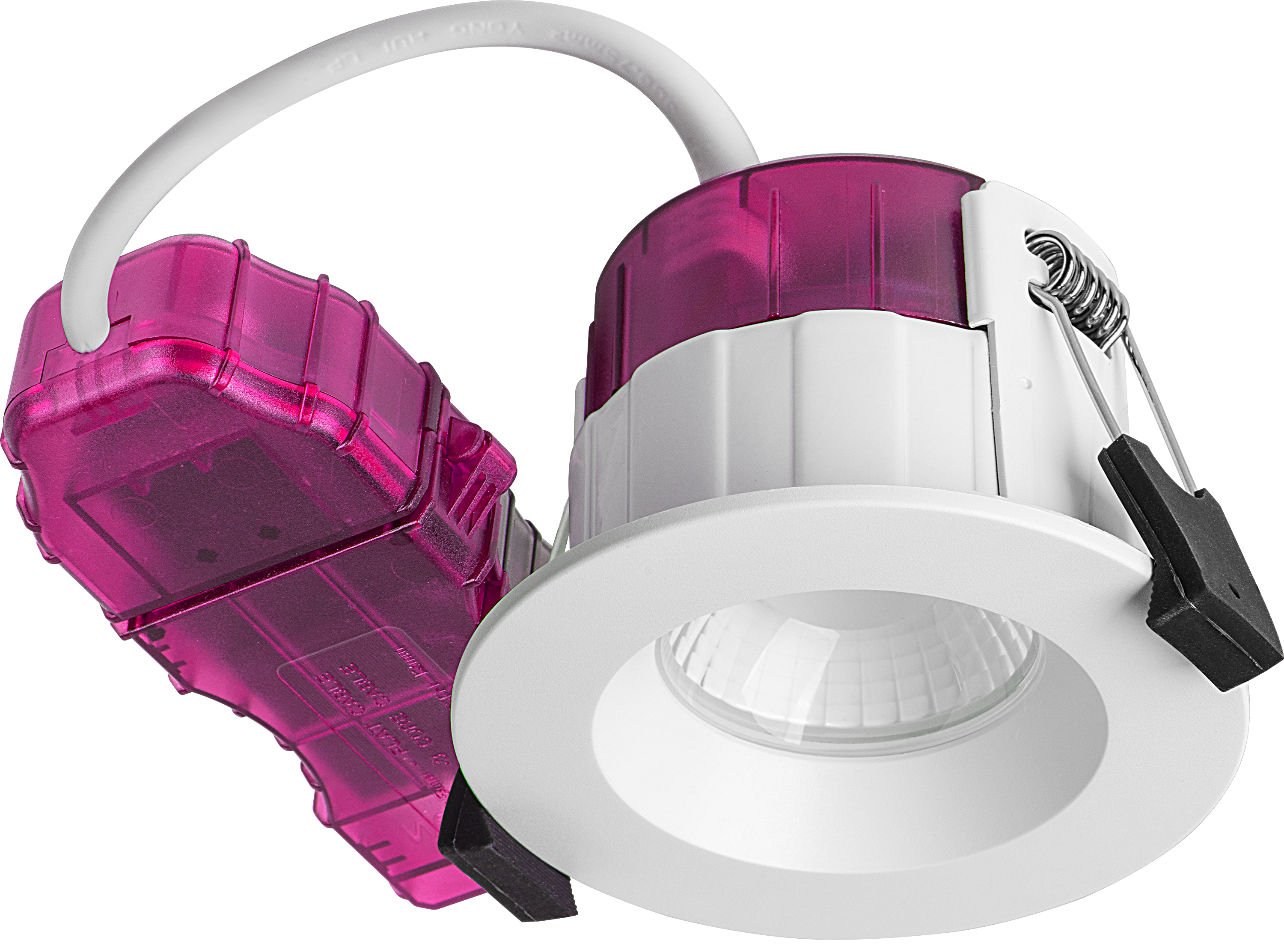

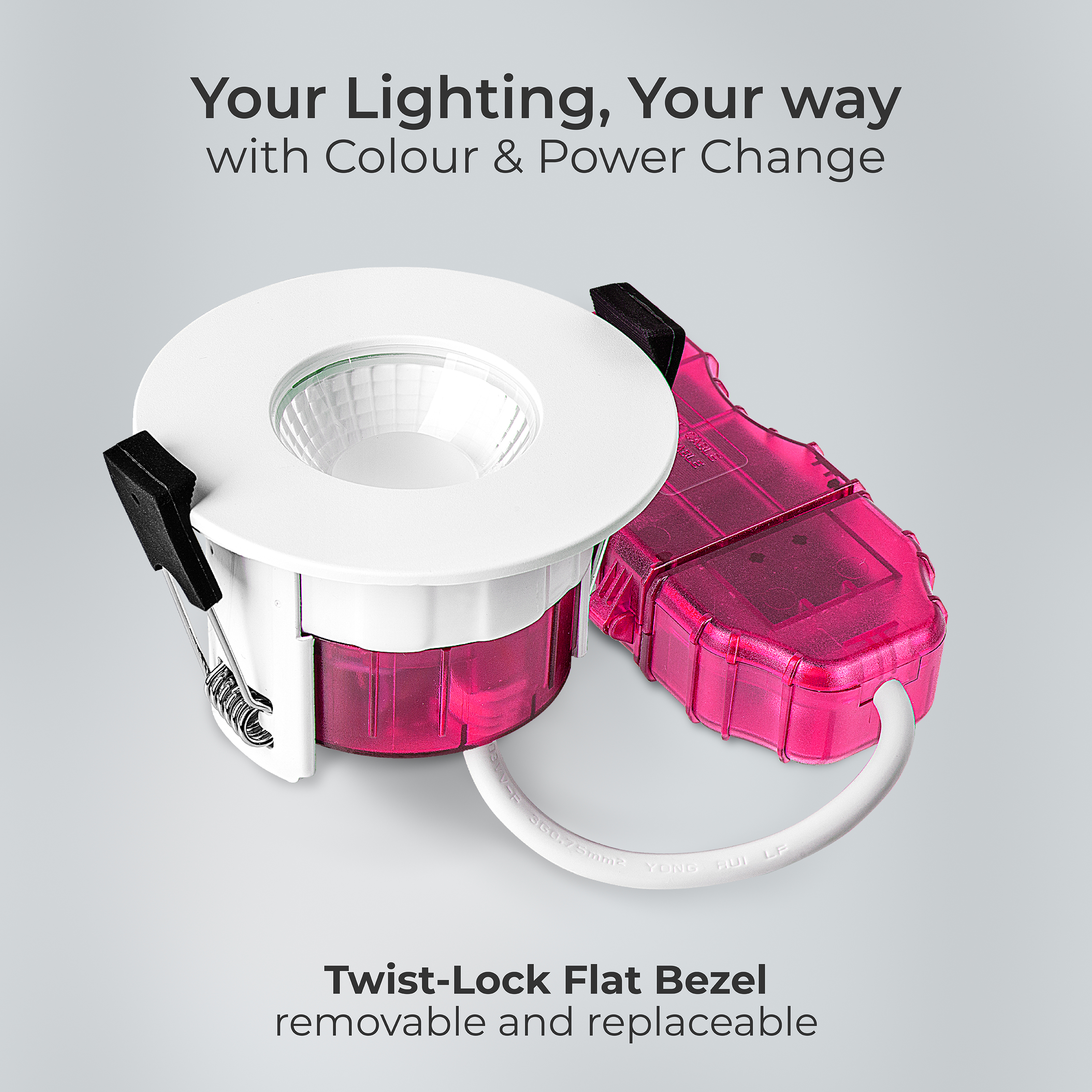

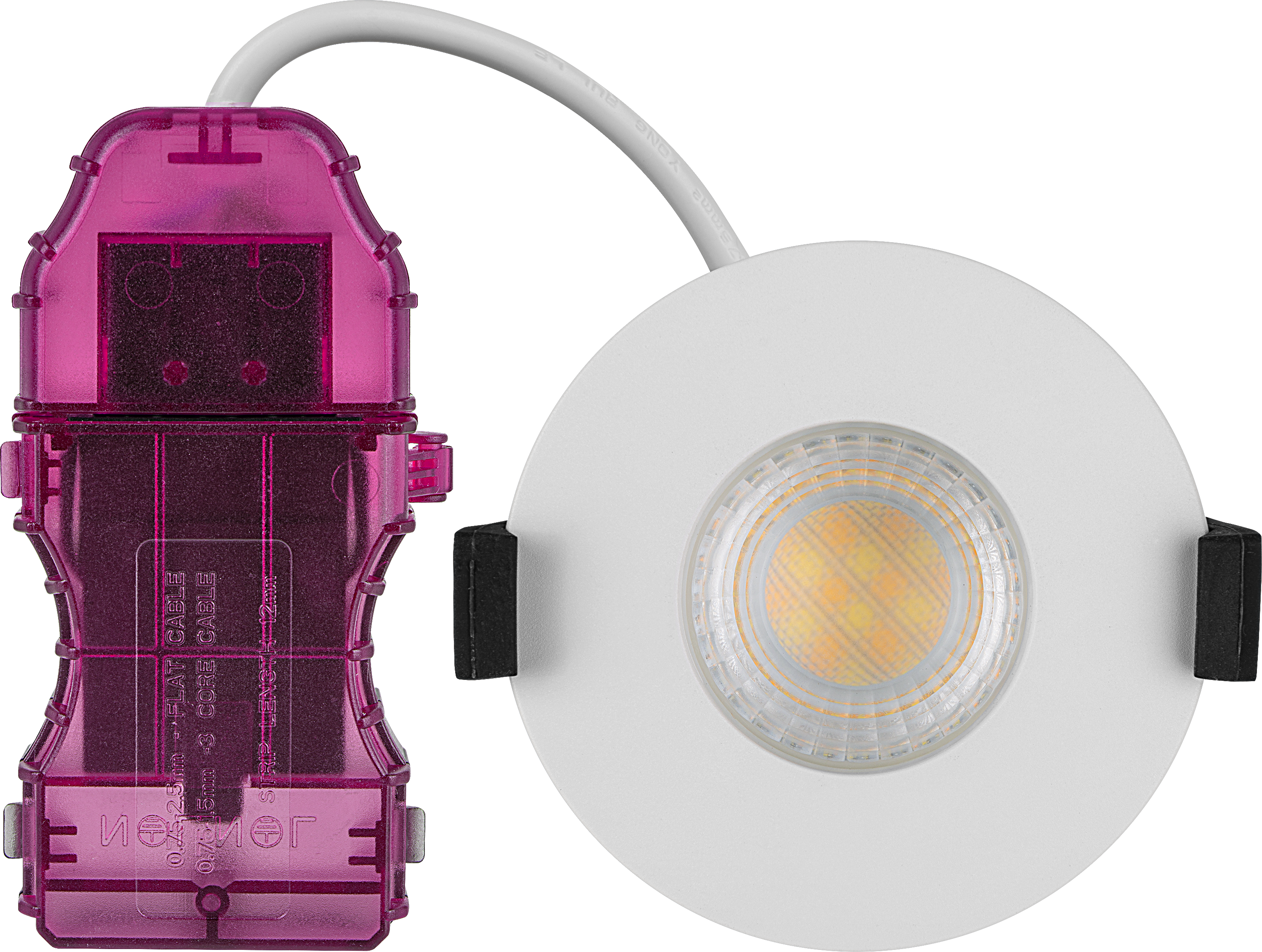

FType Elite Fire Rated Downlight 4W/6W 690lm Power Change with 4Colour CCT 2700, 3000, 4000K, 6000K Dimmable IP65 White - Flat
Technical Data
| Code | PTF6WCCT |

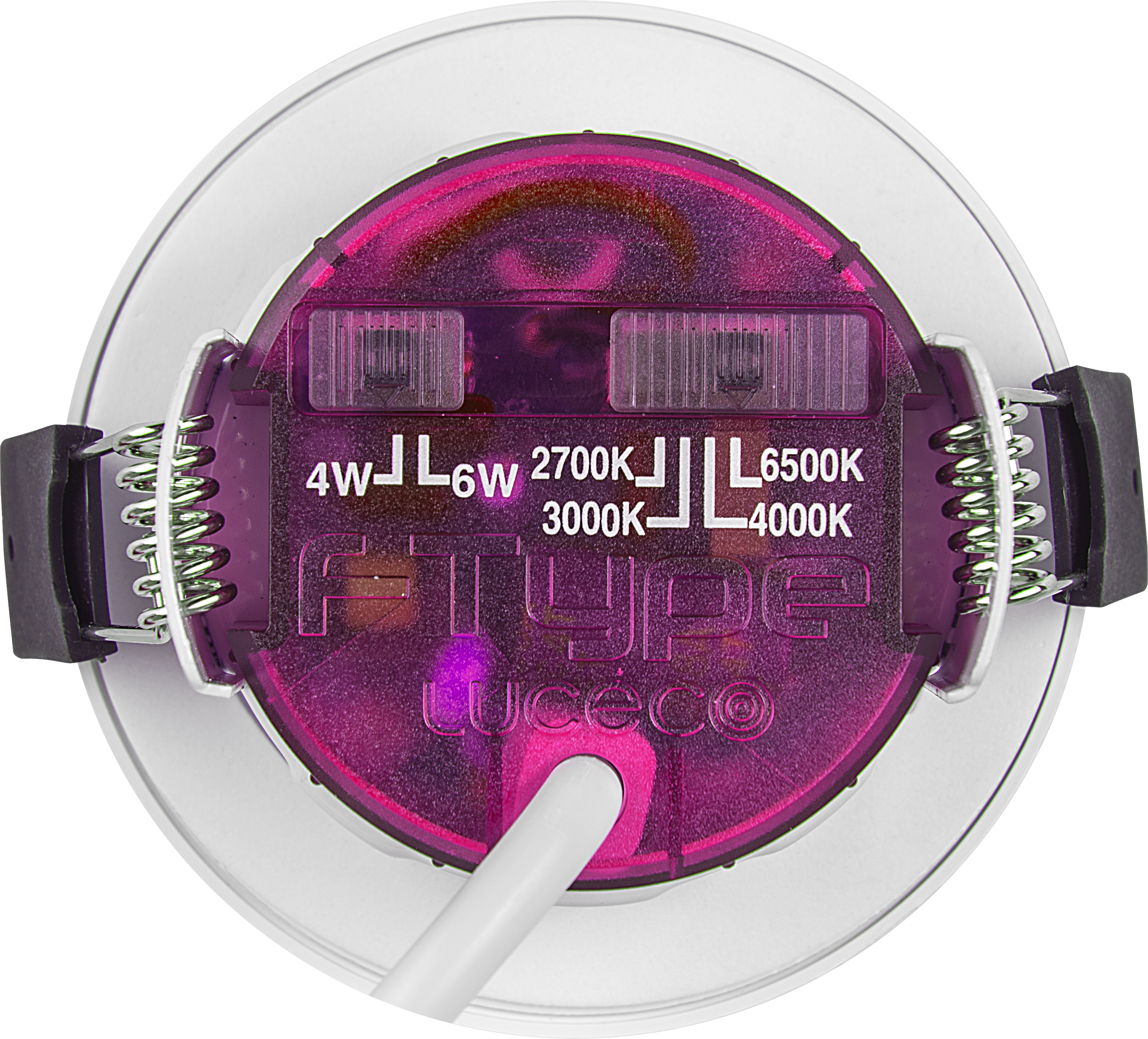

| Driver Type | Colour Change |
| Lumen Output (lm) | 485/750 |
| Max Wattage (W) | 4/6 |
| Efficacy (Lm/W) | 121/125 |
| Colour Temp (CCT) (K) | 2700, 3000, 4000, 6500 |
| Beam Angle (degrees) | 60 |
| CRI | >80 |
| Base Colour | White |
| Bezel Type | Flat |

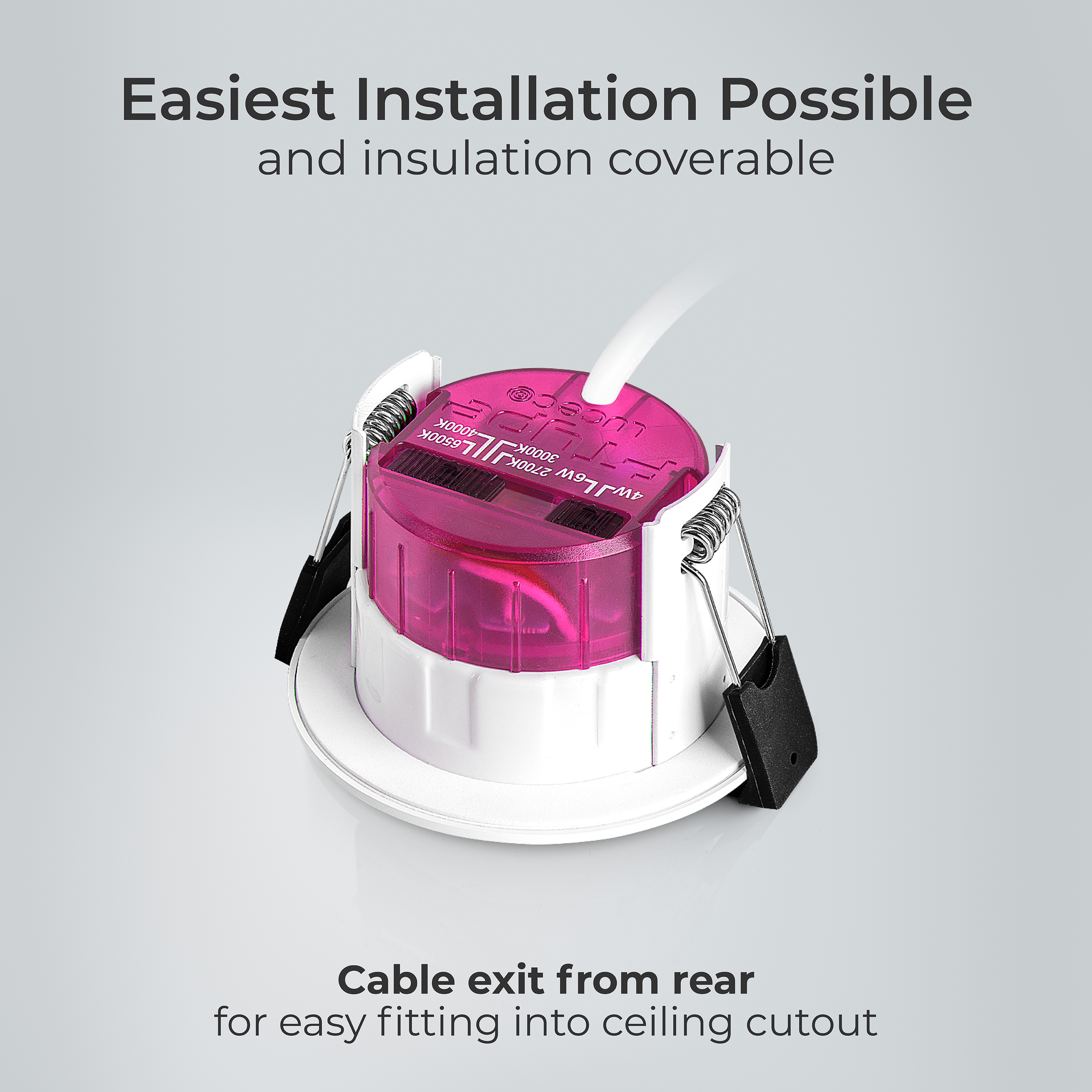

Dimensions and Installation
| Cutout (mm) | 76 |
| Product Depth (mm) | 54.5 |
| Product Width (mm) | 90 |
| Product Height (mm) | 90 |
| Product Weight (kg) | 0.26 |
Performance & Safety
| Lifetime (h) | 70000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 70000 |
| Operating Temperature (C) | -25°C to +40°C |
| Power Factor | >0.9 |
| IK Rating | IK05 |
