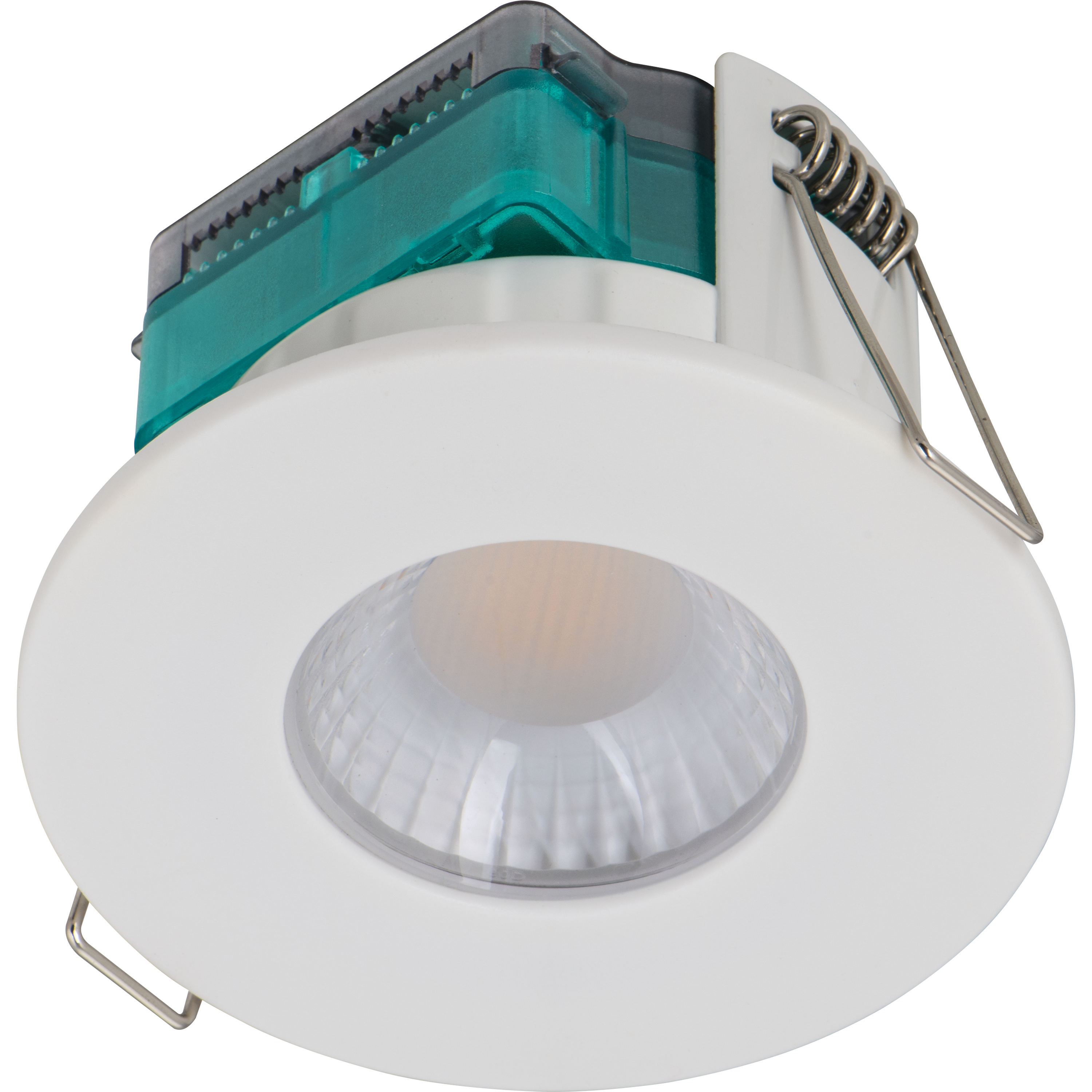

EFTF5W30-01
FType Essence Fire Rated Downlight 5W 515lm 3000K Dimmable IP65 White bezel - Flat
Technical Data
| Code | EFTF5W30 |
| Driver Type | Phase Dimmable |
| Lumen Output (lm) | 515 |
| Max Wattage (W) | 5 |
| Efficacy (Lm/W) | 103 |
| Colour Temp (CCT) (K) | 3000 |
| Beam Angle (degrees) | 60 |
| CRI | >80 |
| Base Colour | White |
| Bezel Type | Flat |
Dimensions and Installation
| Cutout (mm) | 76 |
| Unpacked Depth (mm) | 56.5 |
| Unpacked Width (mm) | 90 |
| Unpacked Height (mm) | 90 |
| Unpacked Net Weight (kg) | 0.168 |
Performance & Safety
| Lifetime (h) | 25000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 25000 |
| Operating Temperature (C) | -25°C to +40°C |
| Power Factor | >0.9 |
| IK Rating | IK05 |
