luweb-d 20220421JW
ItemLifetime 100000
PackageWarranty 5
ItemIPRating IP44
ItemColourTemp 4000
ItemCRI 80
ItemComplianceUKCA True

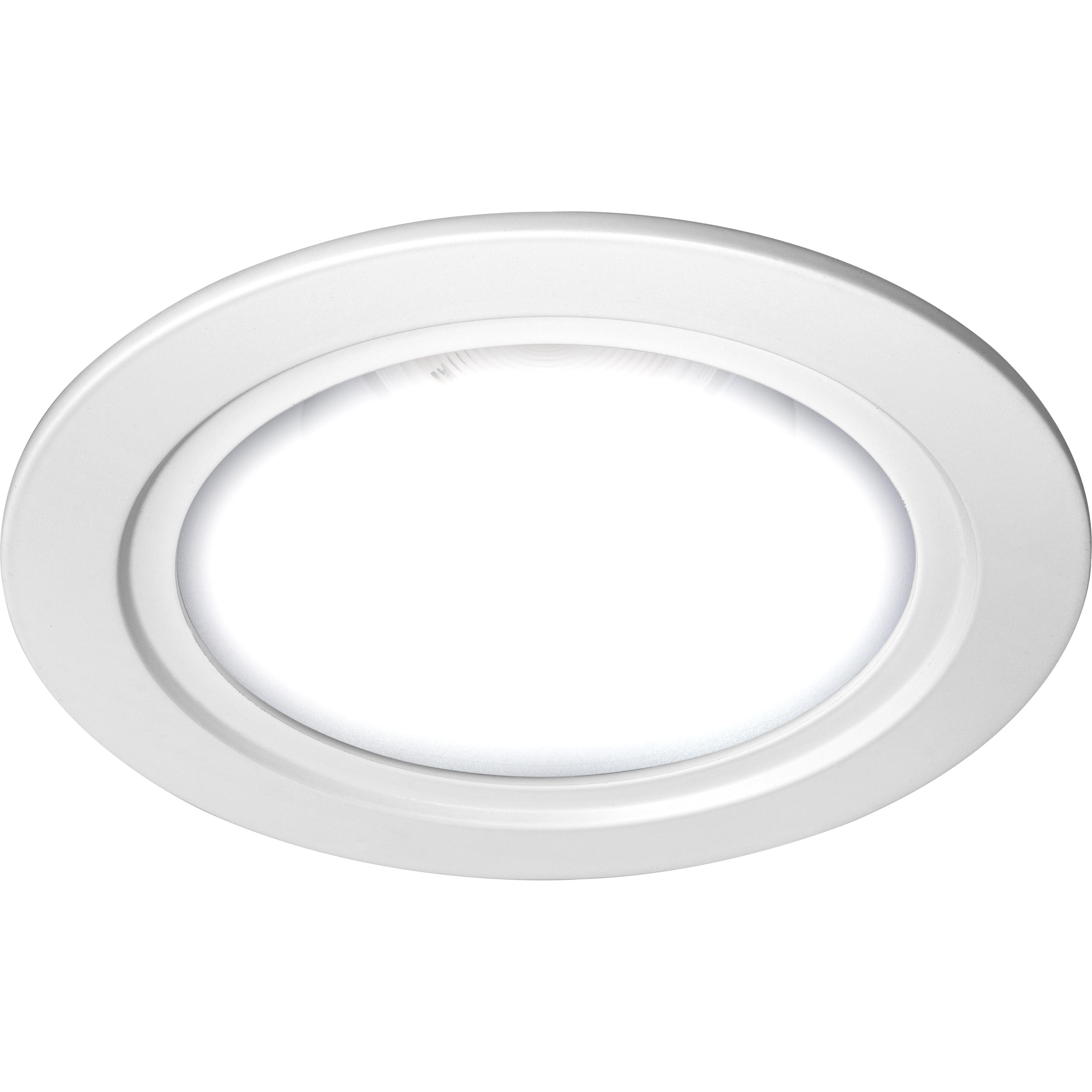

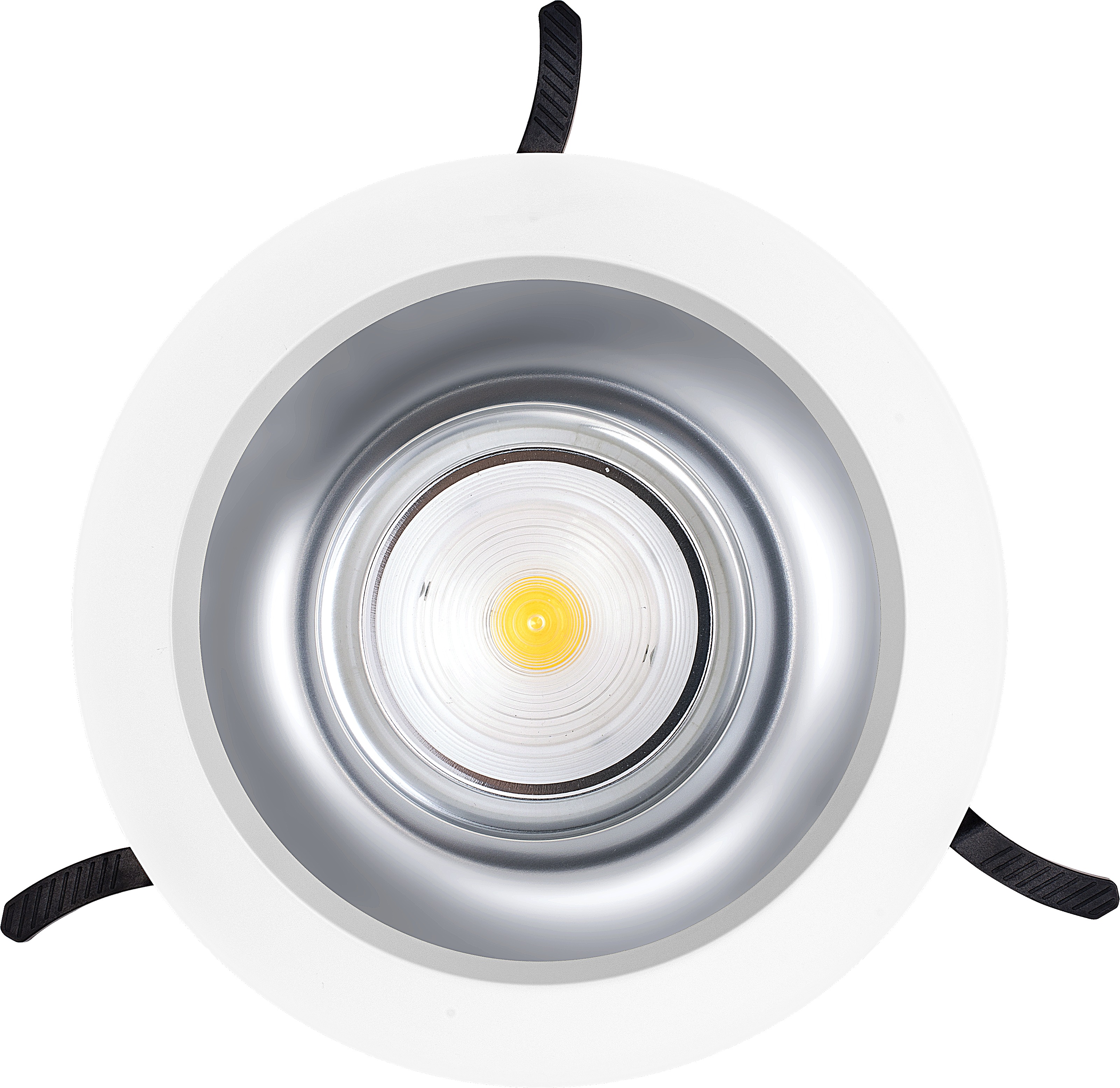

The Platinum Downlight range features a die-cast aluminium body designed to provide optimal thermal control. A high-performance range the downlights offer an efficacy of up to 132 Llm/cW, with an aluminium reflector. A recessed solution with a 220m diameter, the unique swing tab design enables a quick and easy installation.

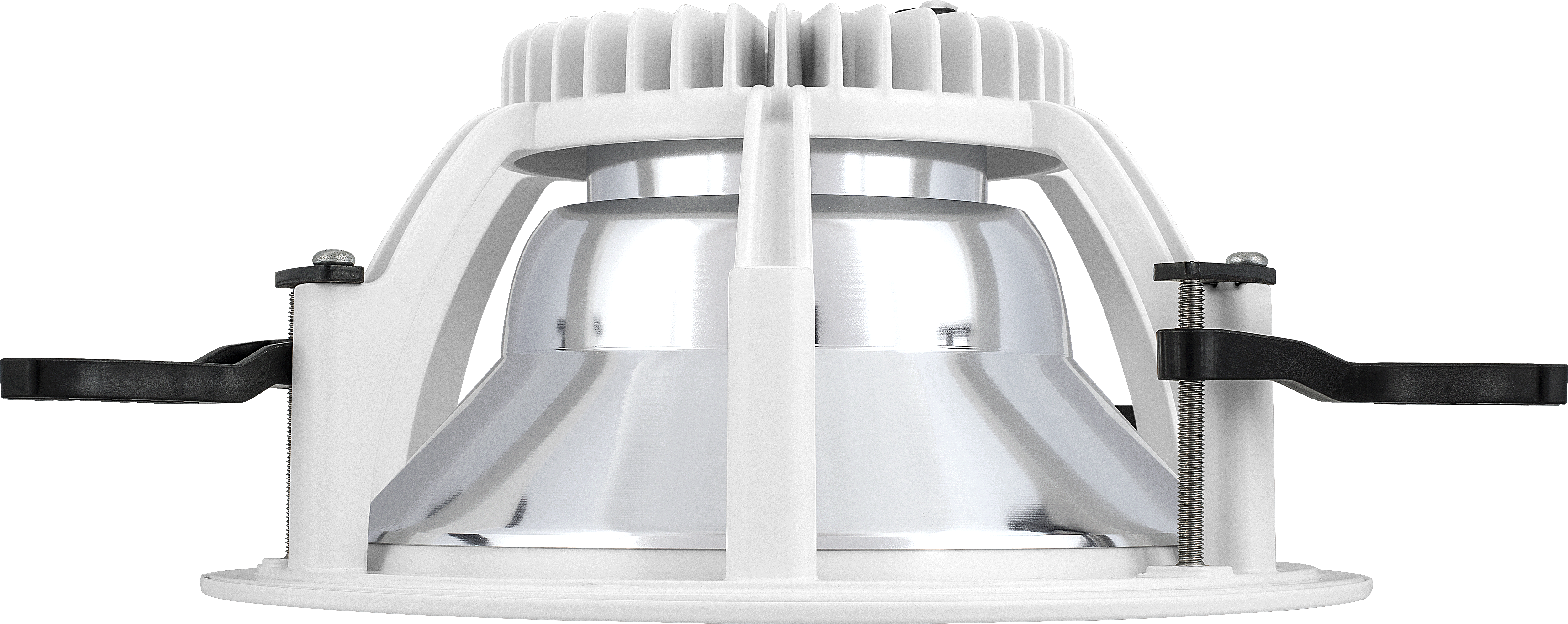

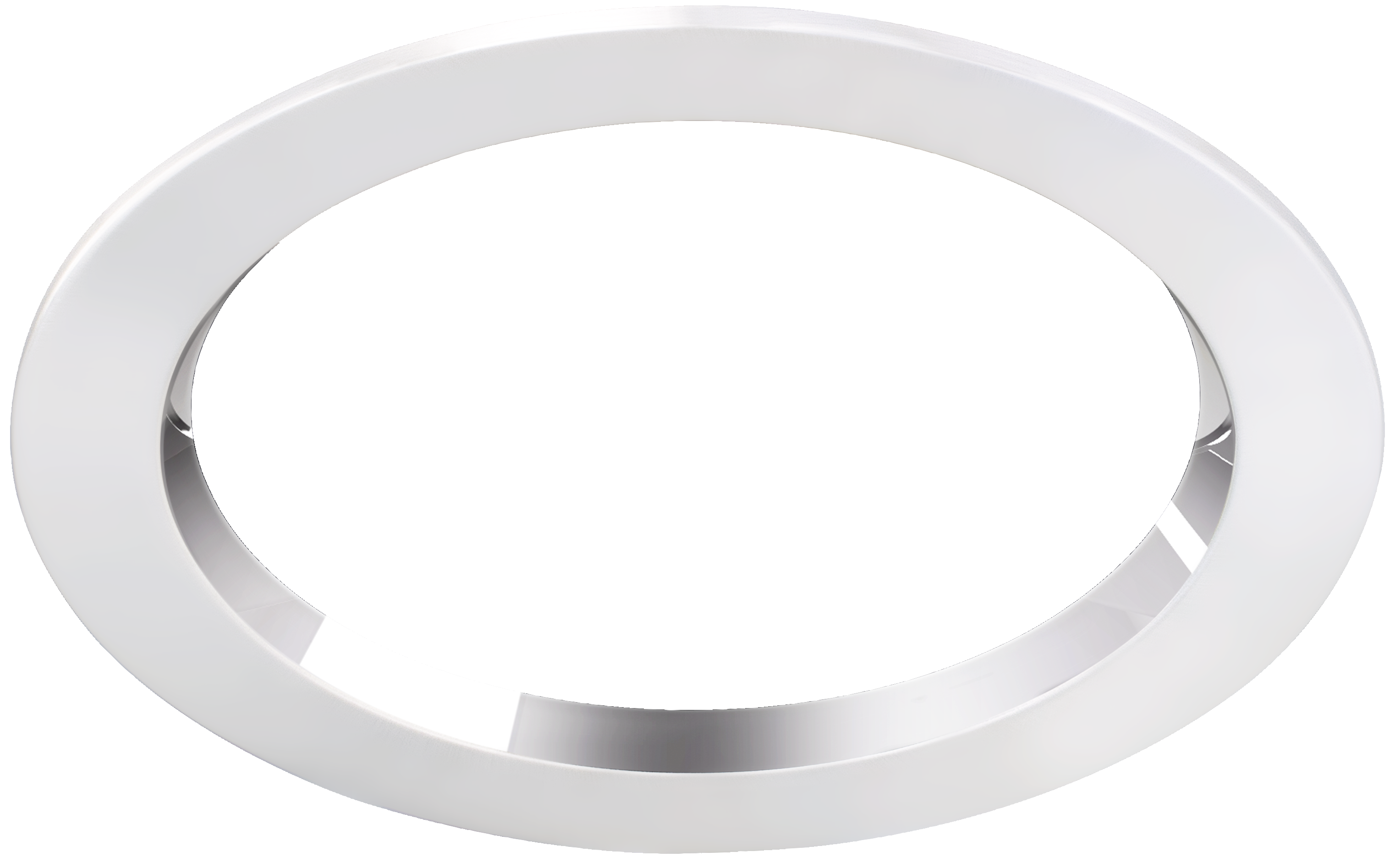

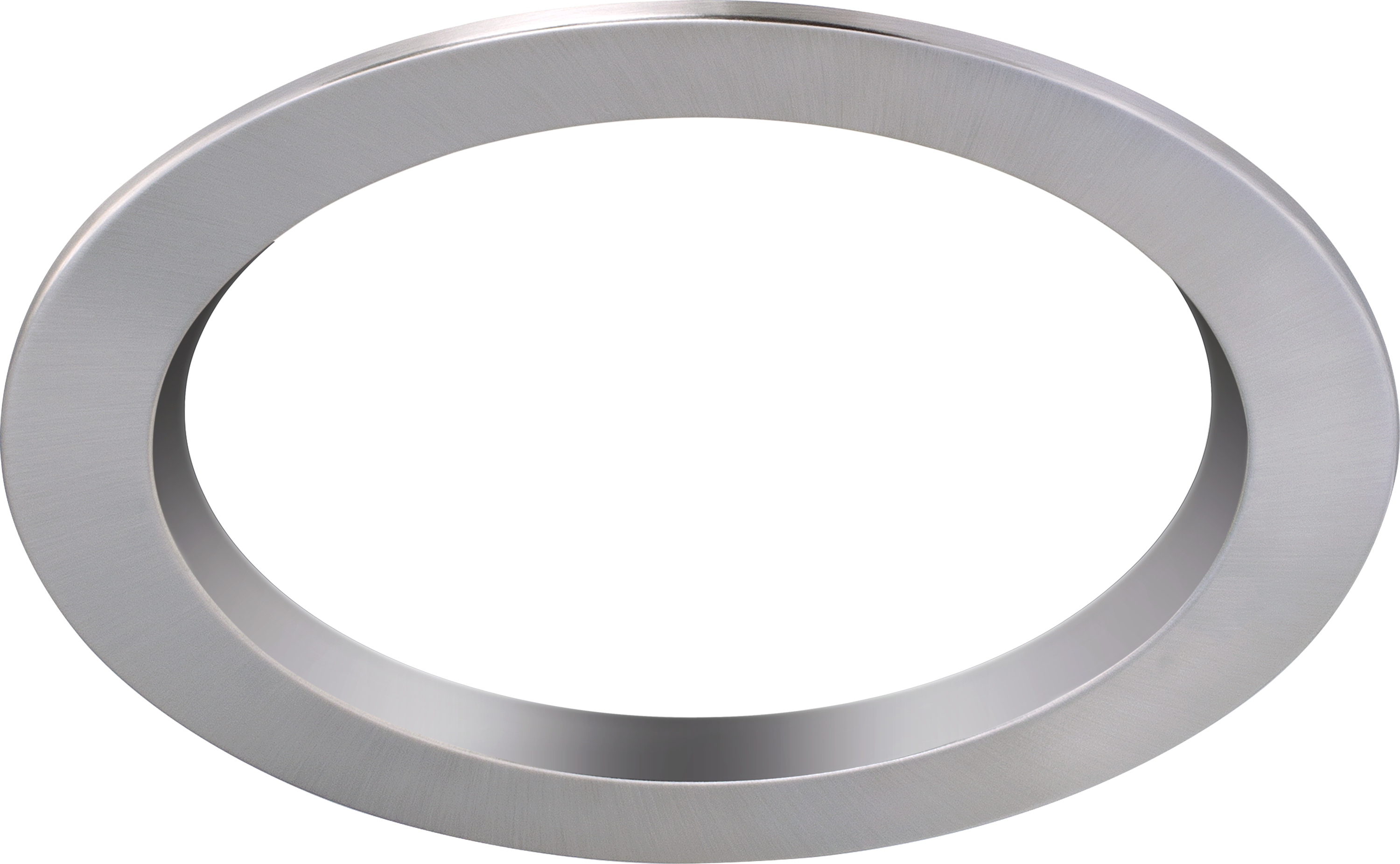

Die-cast aluminium body designed to provide optimal thermal control with slim magnetic bezel with aluminium reflector

High performance downlight with efficacy up to 129 Llm/cW with matt reflector

Recessed mounted with unique swing tab design for quick and easy installation. Cutout is 205mm

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

DALI Digital Dimming

DALI Digital Dimming offers precise control of individual fixtures and groups of lights, which can lead to decreased energy consumption and saved running costs. All options are available as DALI dimmable Insert D, eg. LDP20W12MD40-05









Remote Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's remote emergency pack provides 3 hours worth of back-up power to enable this to happen meeting all standards and regulations.

Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations.

DALI Addressable Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations.

3000K Colour Temperature

3000K light provides a warmer more comforting effect that can be preferred in many of applications including certain public areas and domestic settings

Code Driver Type Bezel Type Colour Temp (CCT) (K) Lumen Output (lm) Max Wattage (W) Efficacy (Lm/W) Cutout (mm) Add to Spec
Code
LDP20W12MS40
Driver Type
Fixed Output
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
1250
Max Wattage (W)
9.5
Efficacy (Lm/W)
132
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W16MS40
Driver Type
Fixed Output
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
1650
Max Wattage (W)
13
Efficacy (Lm/W)
127
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W25MS40
Driver Type
Fixed Output
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
2500
Max Wattage (W)
19
Efficacy (Lm/W)
132
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W33MS40
Driver Type
Fixed Output
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
3300
Max Wattage (W)
26
Efficacy (Lm/W)
127
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W66MS40
Driver Type
Fixed Output
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
6600
Max Wattage (W)
53
Efficacy (Lm/W)
125
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W12MD40
Driver Type
Digital Dimmable
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
1250
Max Wattage (W)
9.5
Efficacy (Lm/W)
132
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W16MD40
Driver Type
Digital Dimmable
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
1650
Max Wattage (W)
13
Efficacy (Lm/W)
127
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W25MD40
Driver Type
Digital Dimmable
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
2500
Max Wattage (W)
19
Efficacy (Lm/W)
132
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W33MD40
Driver Type
Digital Dimmable
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
3300
Max Wattage (W)
26
Efficacy (Lm/W)
127
Cutout (mm)
205
Add to Spec Remove from Spec Processing
Code
LDP20W66MD40
Driver Type
Digital Dimmable
Bezel Type
Colour Temp (CCT) (K)
4000
Lumen Output (lm)
6600
Max Wattage (W)
53
Efficacy (Lm/W)
125
Cutout (mm)
205
Add to Spec Remove from Spec Processing
