LAC15P32D40-05

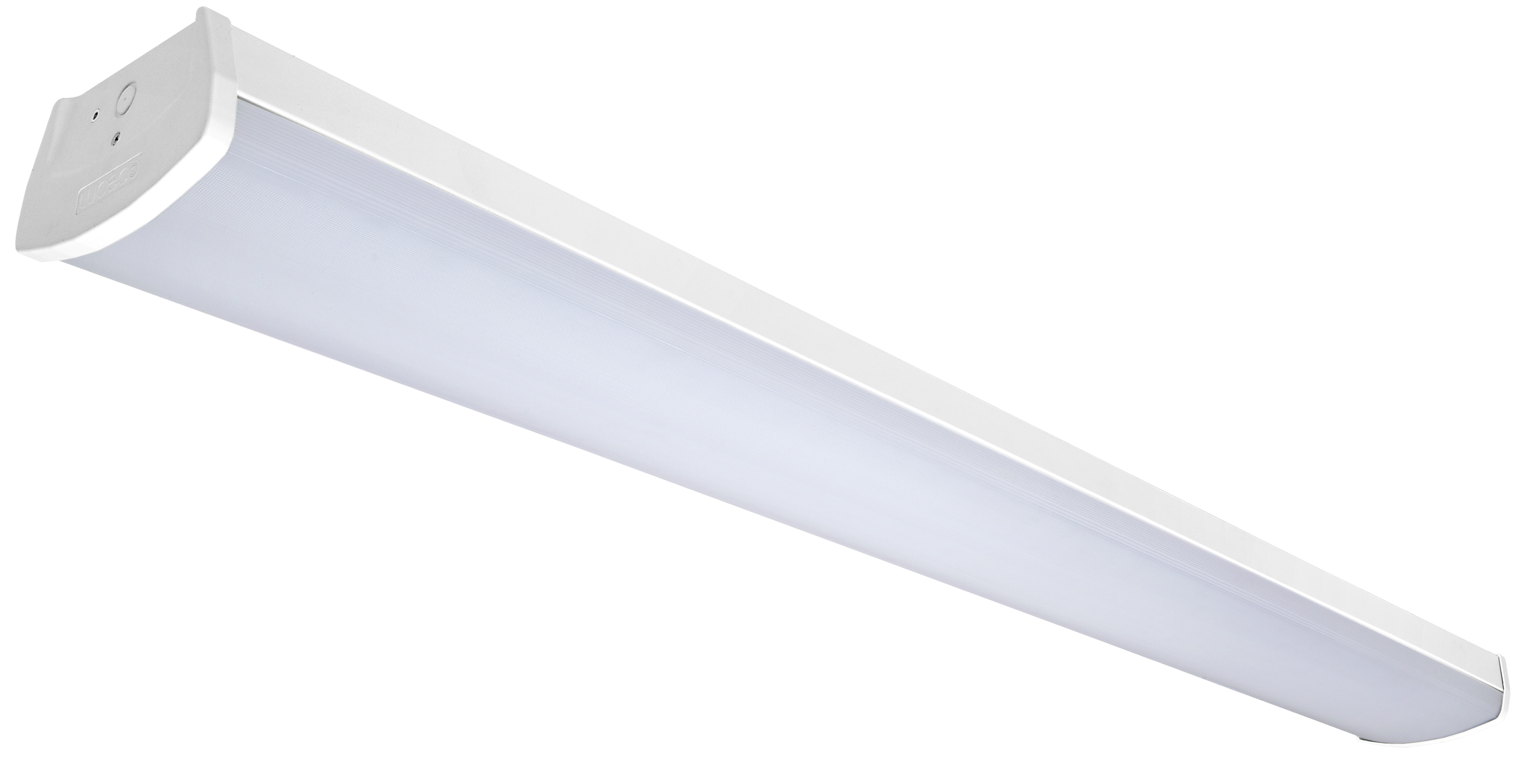

Academy 1500mm surface luminaire 3200 lumens with DALI driver
Technical Data
| Code | LAC15P32D40 |
| Driver Type | Digital Dimmable |
| Lumen Output (lm) | 3200 |
| Max Wattage (W) | 20 |
| Efficacy (Lm/W) | 160 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Standard Deviations of Colour Matching | <3 |
| Base Colour | White - RAL 9016 (Traffic White) |
| Onsite Warranty | Yes |
Dimensions and Installation
| Product Depth (mm) | 1455 |
| Product Width (mm) | 193 |
| Product Height (mm) | 101 |
| IP Rating | IP20 |
| IK Rating | IK04 |
| Cutout (mm) | N/A |
Performance & Safety
| Lifetime (h) | 100000 |
| L/B at Life | L80-B10 |
| L70 Hours (h) | 184000 |
| L80 Hours (h) | 116000 |
| L90 Hours (h) | 56000 |
| Operating Temperature (C) | -20°C to +25°C |
| E-Class | Class1 |
| UGR 4H 8H | <19 |
