luweb sursus 20220421JW
ItemLifetime 100000
PackageWarranty 5
ItemIPRating IP20
ItemColourTemp 4000
ItemCRI 80
ItemUGR4H8H 19
ItemComplianceUKCA True

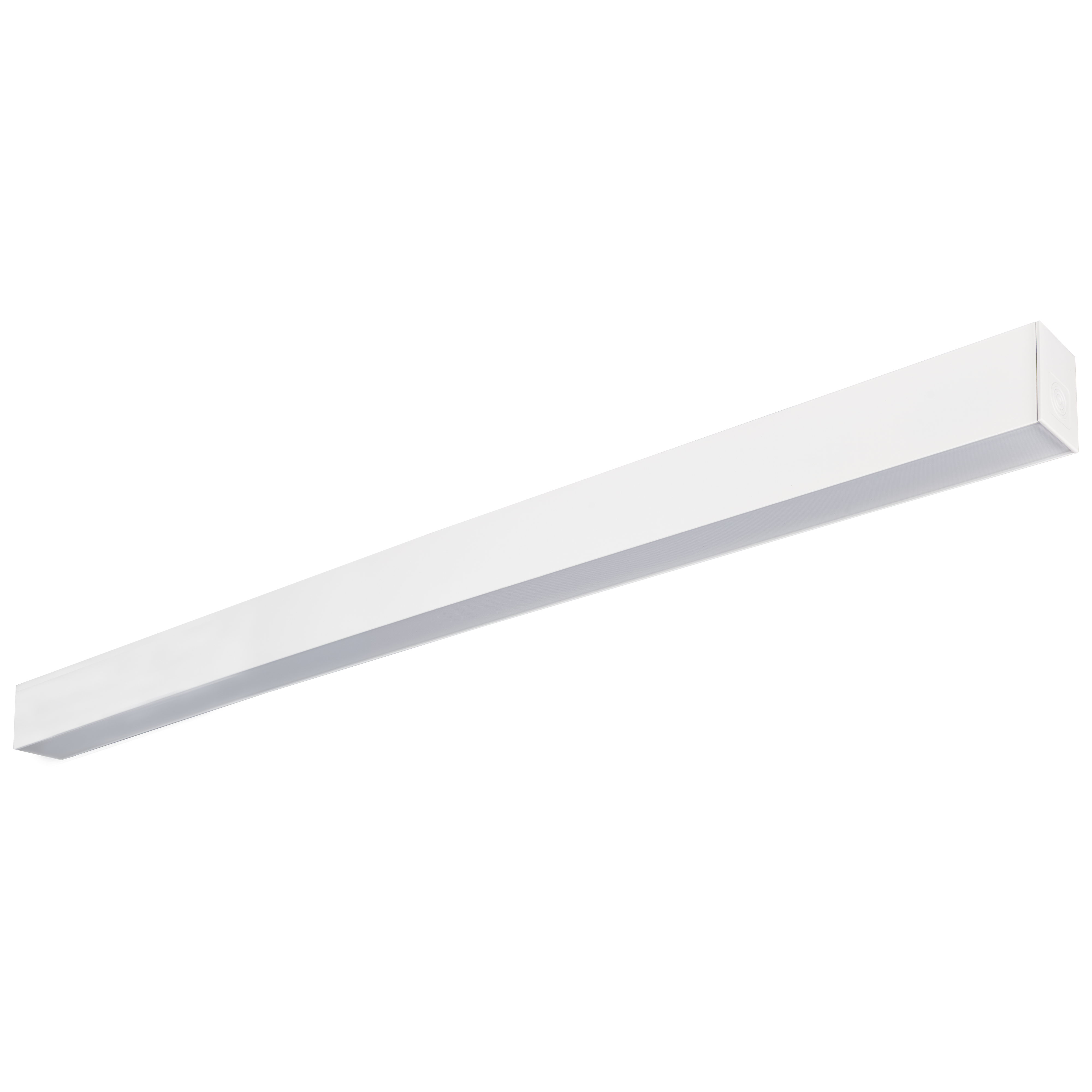

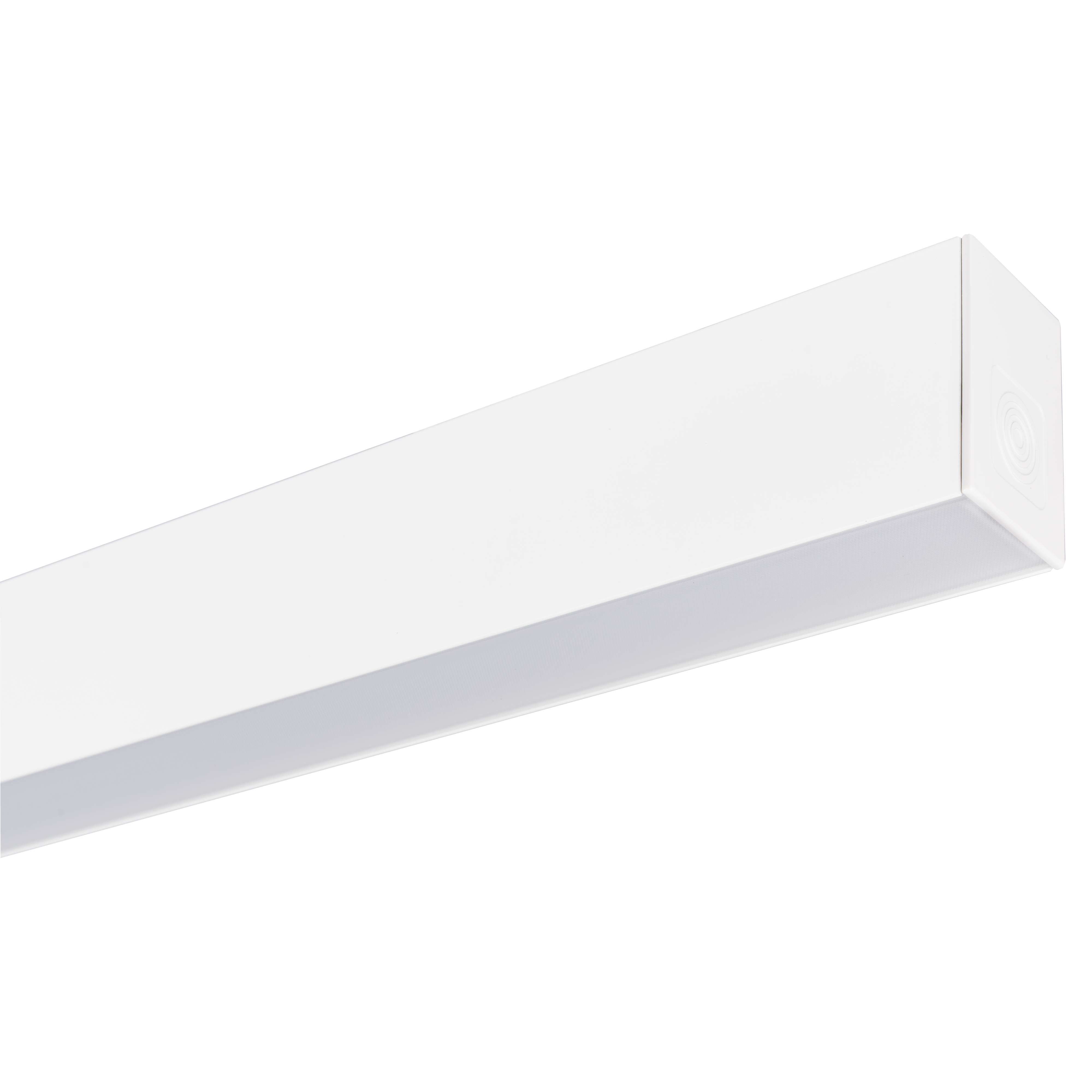

Luceco Contour Suspended offers a versatile option to the Contour Linear Lighting family. Available in RAL9005 black or RAL9016 classic white providing downward illumination with a choice of either an opal or micro-prism polycarbonate diffuser to emit gentle, balanced, and low glare lighting, making it ideal for many commercial areas including boardrooms, meeting areas, offices, retail shops, and domestic areas.

Suspended lighting system providing contionious low-glare illumination with up to 107 Llm/cW, accompanied with full range of connectors to match any space

Full family includes Direct/Indirect system, and both Low and High Output module solutions complete with full range of connector accessories

Aluminium constructed body available in both RAL9016 white and RAL9005 black finishes

Suspension mounted via 1.5M suspension kit supplied plug and play wiring for continuous connection

Code Base Colour Unpacked Depth (mm) Driver Type Lumen Output (lm) Max Wattage (W) Efficacy (Lm/W) Add to Spec
Code
LCO06WO06S40
Base Colour
White - RAL 9016 (Traffic White)
Unpacked Depth (mm)
574
Driver Type
Fixed Output
Lumen Output (lm)
600
Max Wattage (W)
6
Efficacy (Lm/W)
100
Add to Spec Remove from Spec Processing
Code
LCO06BO06S40
Base Colour
Black - RAL9005 (Jet Black)
Unpacked Depth (mm)
574
Driver Type
Fixed Output
Lumen Output (lm)
600
Max Wattage (W)
6
Efficacy (Lm/W)
100
Add to Spec Remove from Spec Processing
Code
LCO12WO12S40
Base Colour
White - RAL 9016 (Traffic White)
Unpacked Depth (mm)
1134
Driver Type
Fixed Output
Lumen Output (lm)
1250
Max Wattage (W)
12
Efficacy (Lm/W)
104
Add to Spec Remove from Spec Processing
Code
LCO12BO12S40
Base Colour
Black - RAL9005 (Jet Black)
Unpacked Depth (mm)
1134
Driver Type
Fixed Output
Lumen Output (lm)
1250
Max Wattage (W)
12
Efficacy (Lm/W)
104
Add to Spec Remove from Spec Processing
Code
LCO15WO15S40
Base Colour
White - RAL 9016 (Traffic White)
Unpacked Depth (mm)
1414
Driver Type
Fixed Output
Lumen Output (lm)
1600
Max Wattage (W)
14
Efficacy (Lm/W)
114
Add to Spec Remove from Spec Processing
Code
LCO15BO15S40
Base Colour
Black - RAL9005 (Jet Black)
Unpacked Depth (mm)
1414
Driver Type
Fixed Output
Lumen Output (lm)
1600
Max Wattage (W)
14
Efficacy (Lm/W)
114
Add to Spec Remove from Spec Processing
Code
LCO18WO18S40
Base Colour
White - RAL 9016 (Traffic White)
Unpacked Depth (mm)
1695
Driver Type
Fixed Output
Lumen Output (lm)
1900
Max Wattage (W)
18
Efficacy (Lm/W)
106
Add to Spec Remove from Spec Processing
Code
LCO18BO18S40
Base Colour
Black - RAL9005 (Jet Black)
Unpacked Depth (mm)
1695
Driver Type
Fixed Output
Lumen Output (lm)
1900
Max Wattage (W)
18
Efficacy (Lm/W)
106
Add to Spec Remove from Spec Processing
Specification
4 Items
View

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

DALI Digital Dimming

DALI Digital Dimming offers precise control of individual fixtures and groups of lights, which can lead to decreased energy consumption and saved running costs. All options are available as DALI dimmable Insert D, eg. LCOT12WO12D40









3hr Emergency

3-hour Emergency feature guarantee's that in the event of a power outage, the lights will remain illuminated for an extended period of time, enabling a safe exit. This can be critical for safety reasons, allowing people to exit a building safely in the event of an emergency. All modules with exception of 600mm length are available with three hour emergency. Insert E, eg. LCOT12WO12E40









Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations.





DALI Addressable Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations.





3000K Colour Temperature

3000K light provides a warmer more comforting effect that can be preferred in many of applications including certain public areas and domestic settings.
