F OFF
PackageWarranty 5
ItemLumenOutput 600
ItemLifetime 100000
ItemCRI 80
ItemColourTemp 4000

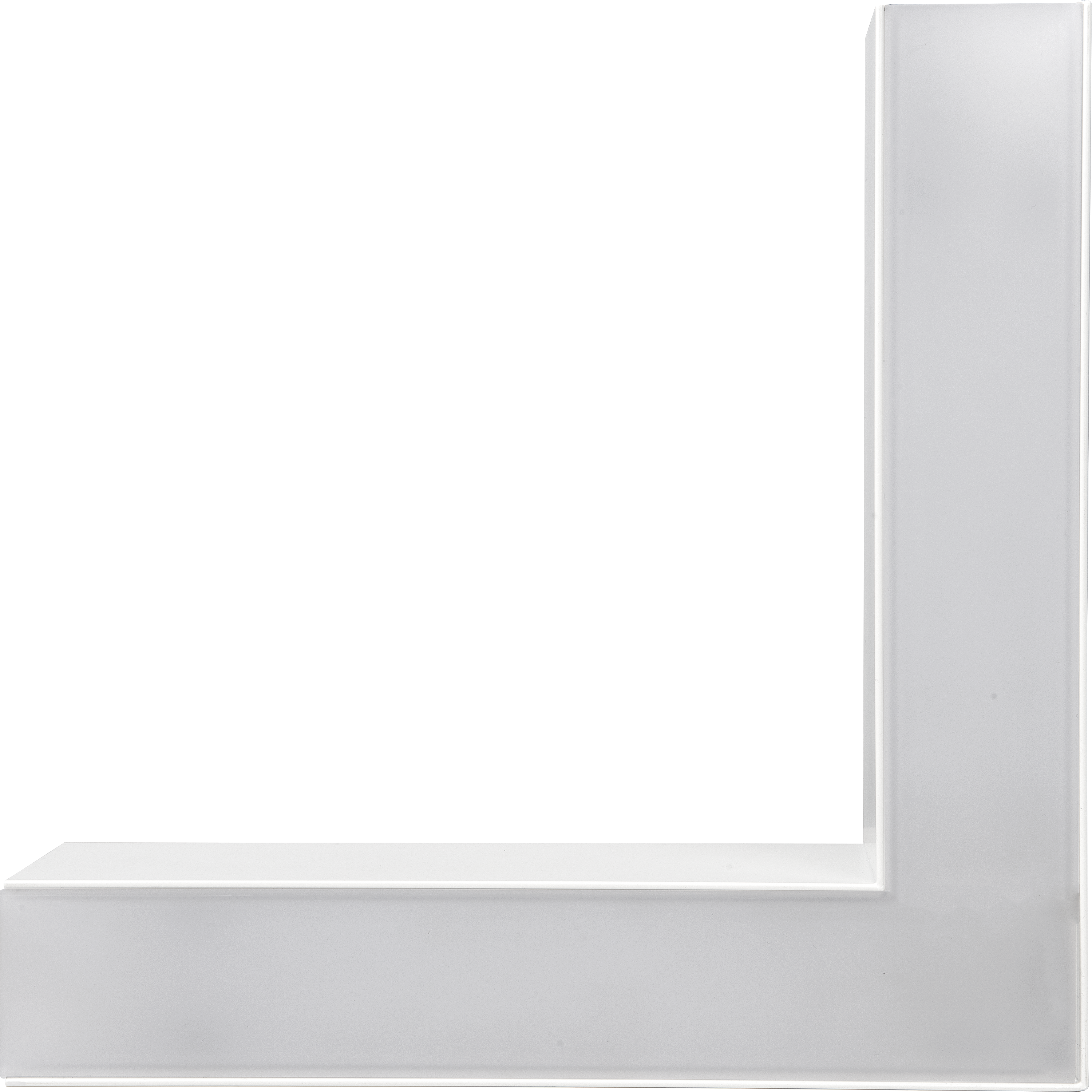

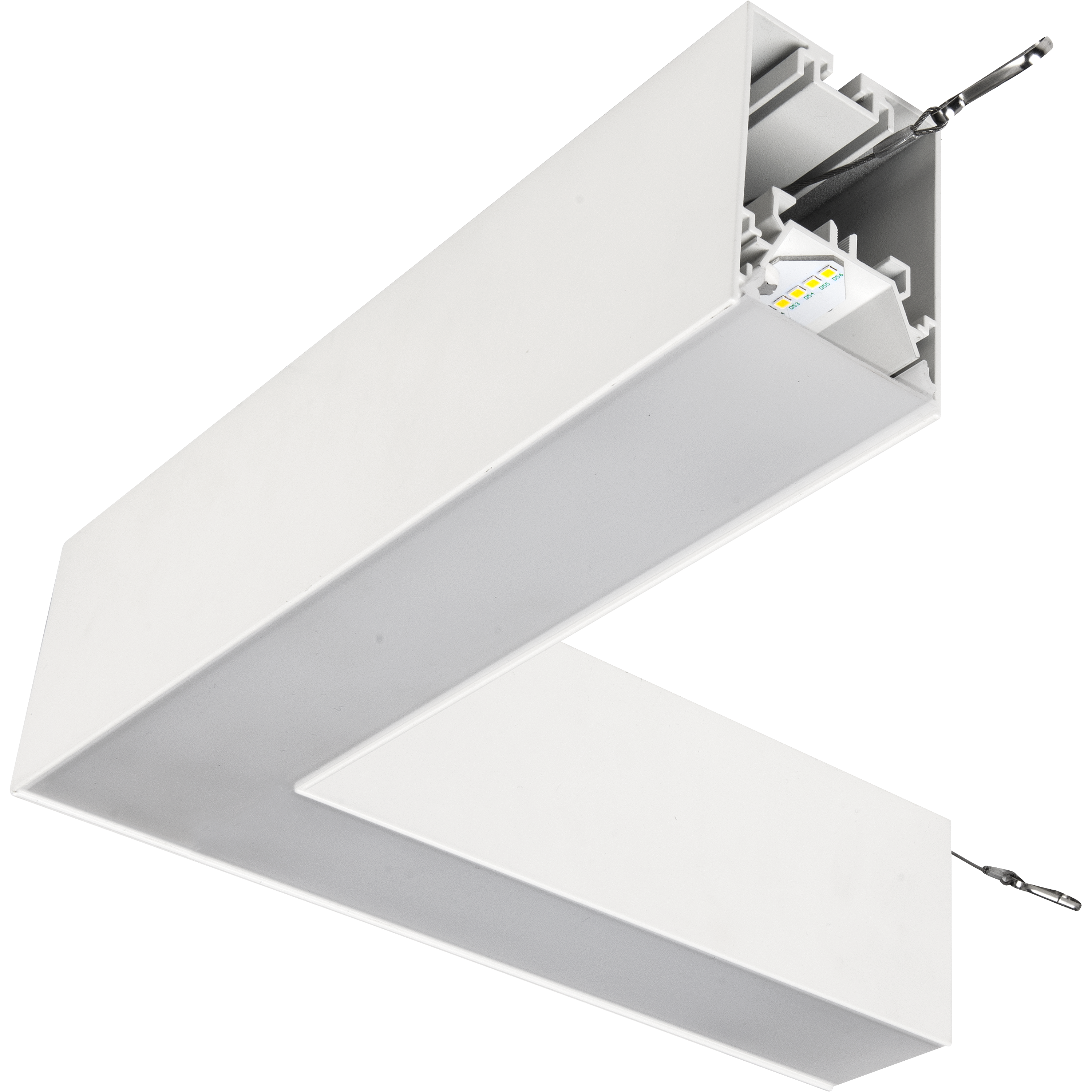

Direct Suspended 90degree connector module

Very Efficient LEDs achieving 100Llm/W

Neutral white 4000k CCT with SDCM <3

Fixed output control gear

LCOFB fixing brackets required for continuous mounting LCOCC wiring connector required one per electrical connection

Technical Data

Code LCO9CWO06S40
Driver Type Fixed Output
Lumen Output (lm) 600
Max Wattage (W) 6
Efficacy (Lm/W) 100
Colour Temp (CCT) (K) 4000
CRI >80
Standard Deviations of Colour Matching <3
Base Colour White - RAL 9016 (Traffic White)
Onsite Warranty Yes

Dimensions and Installation

Unpacked Depth (mm) 314
Unpacked Width (mm) 314
Unpacked Height (mm) 84
Unpacked Net Weight (kg) 1.702
IP Rating IP40
IK Rating IK04
Cutout (mm) NA

Performance & Safety

Lifetime (h) 100000
L/B at Life L70-B50
L70 Hours (h) 100000
L80 Hours (h) 50000
L90 Hours (h) 25000
Operating Temperature (C) -20°C to +25°C
E-Class Class1
Power Factor >0.9
UGR 4H 8H <22
