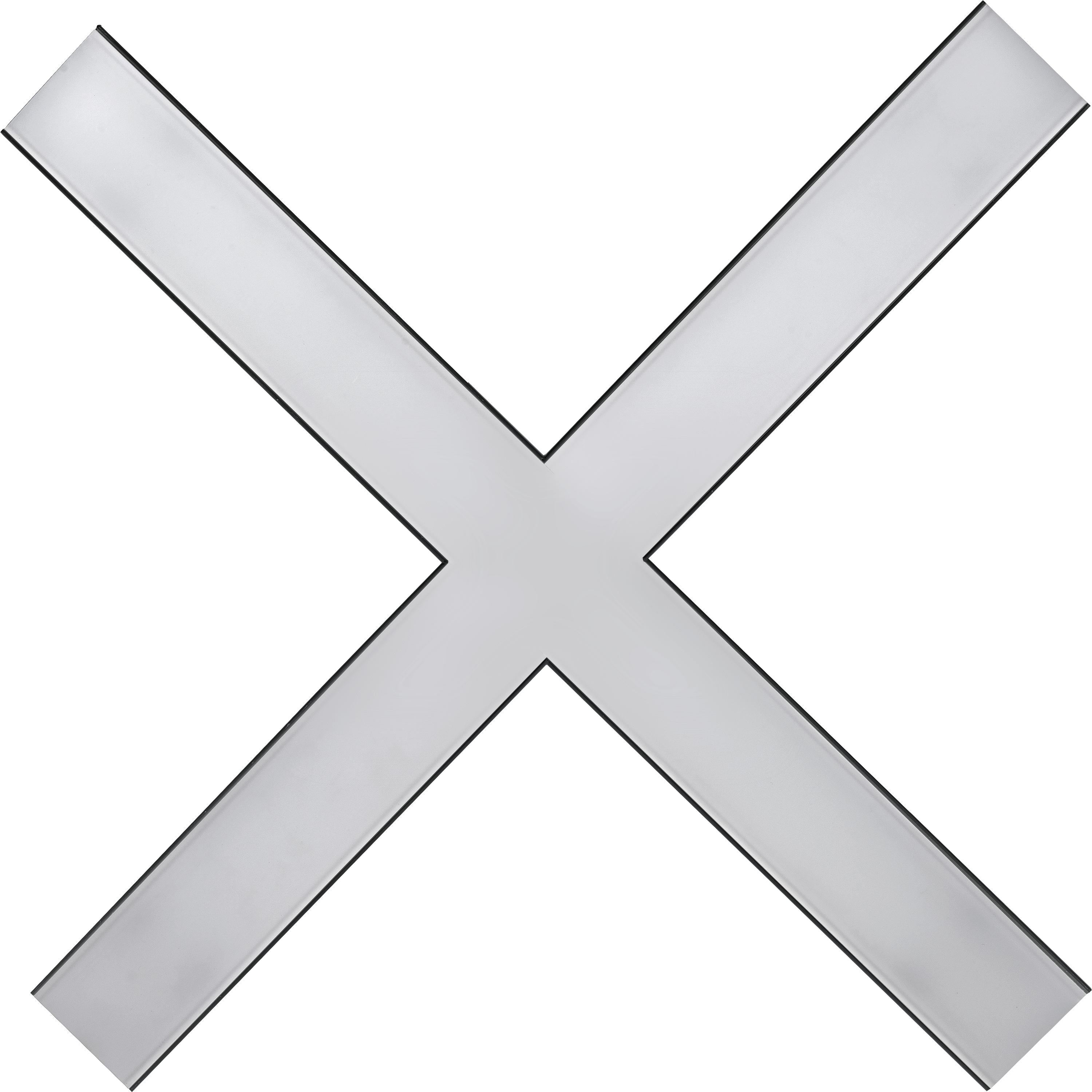

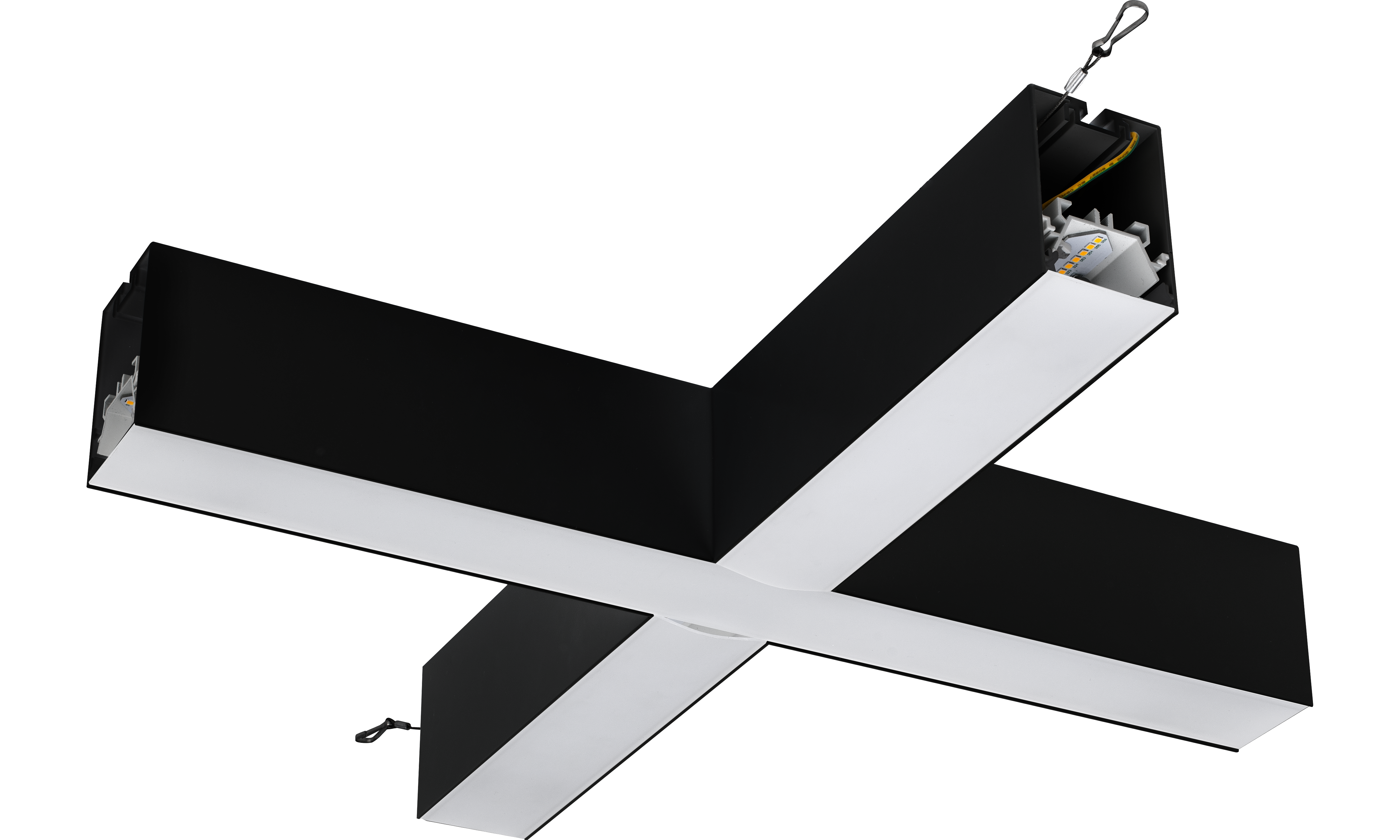

Direct Suspended X connector module
Very Efficient LEDs achieving 109Llm/W
Neutral white 4000k CCT with SDCM <3
Fixed output control gear

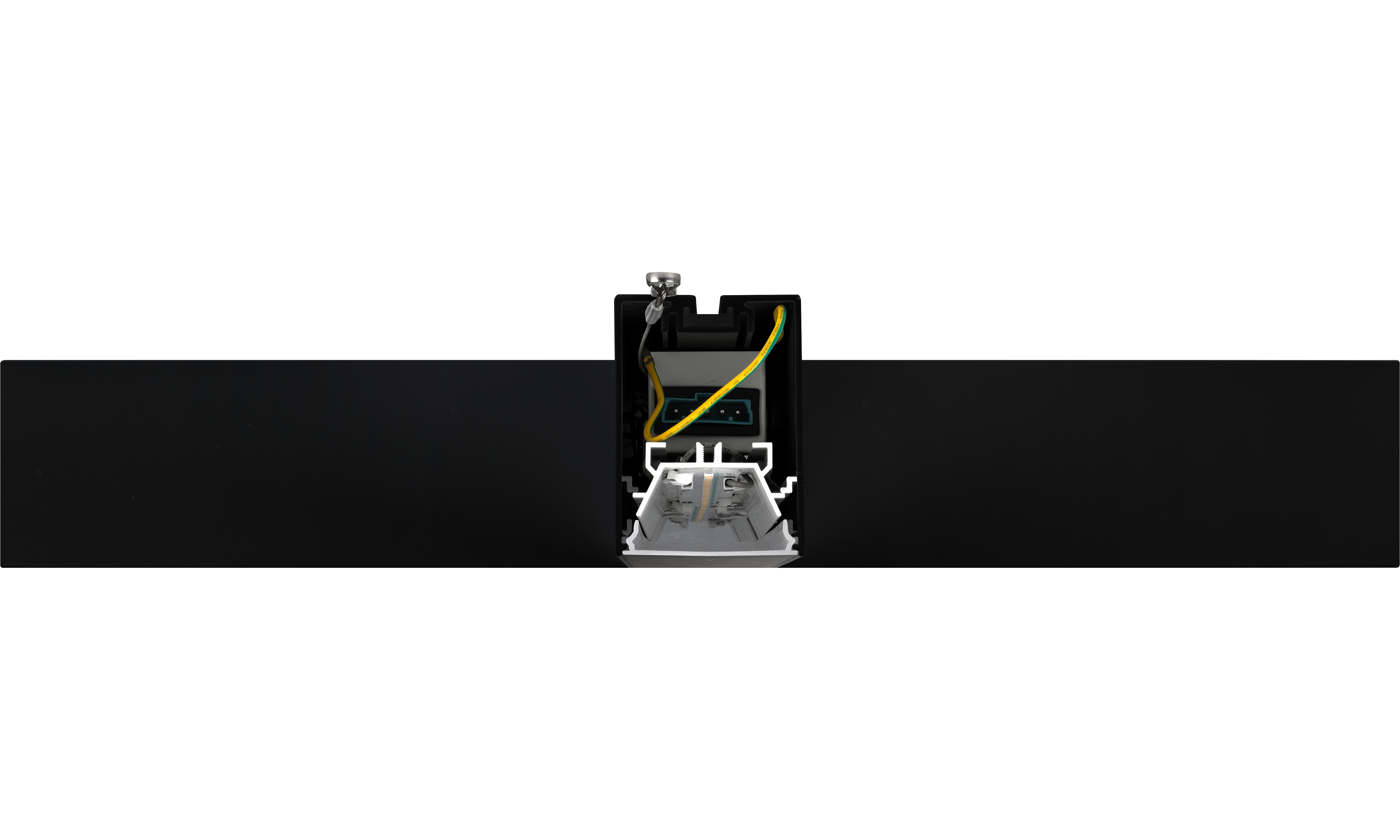

LCOFB fixing brackets required for continuous mounting LCOCC wiring connector required one per electrical connection
Technical Data
Code | LCOXCBO24S40 |
Driver Type | Fixed Output |
Lumen Output (lm) | 2400 |
Max Wattage (W) | 22 |
Efficacy (Lm/W) | 109 |
Colour Temp (CCT) (K) | 4000 |
CRI | >80 |
Standard Deviations of Colour Matching | <3 |
Base Colour | Black - RAL9005 (Jet Black) |
Onsite Warranty | Yes |
Dimensions and Installation
Unpacked Depth (mm) | 568 |
Unpacked Width (mm) | 568 |
Unpacked Height (mm) | 84 |
Unpacked Net Weight (kg) | 3.335 |
IP Rating | IP40 |
IK Rating | IK04 |
Cutout (mm) | 0 |
Performance & Safety
Lifetime (h) | 100000 |
L/B at Life | L70-B50 |
L70 Hours (h) | 100000 |
L80 Hours (h) | 50000 |
L90 Hours (h) | 25000 |
Operating Temperature (C) | -20°C to +25°C |
E-Class | Class1 |
Power Factor | >0.9 |
UGR 4H 8H | <25 |
