LuxPanel Delta
The LuxPanel Delta is a flexible, high-performance commercial lighting panel combining multi-output versatility with premium colour accuracy and architectural uplight/downlight design.
Designed with a Dip Switch Driver offering all four output configurations from just one SKU, the LuxPanel Delta provides unmatched flexibility straight out of the box - ideal for streamlined project planning and reduced inventory complexity.

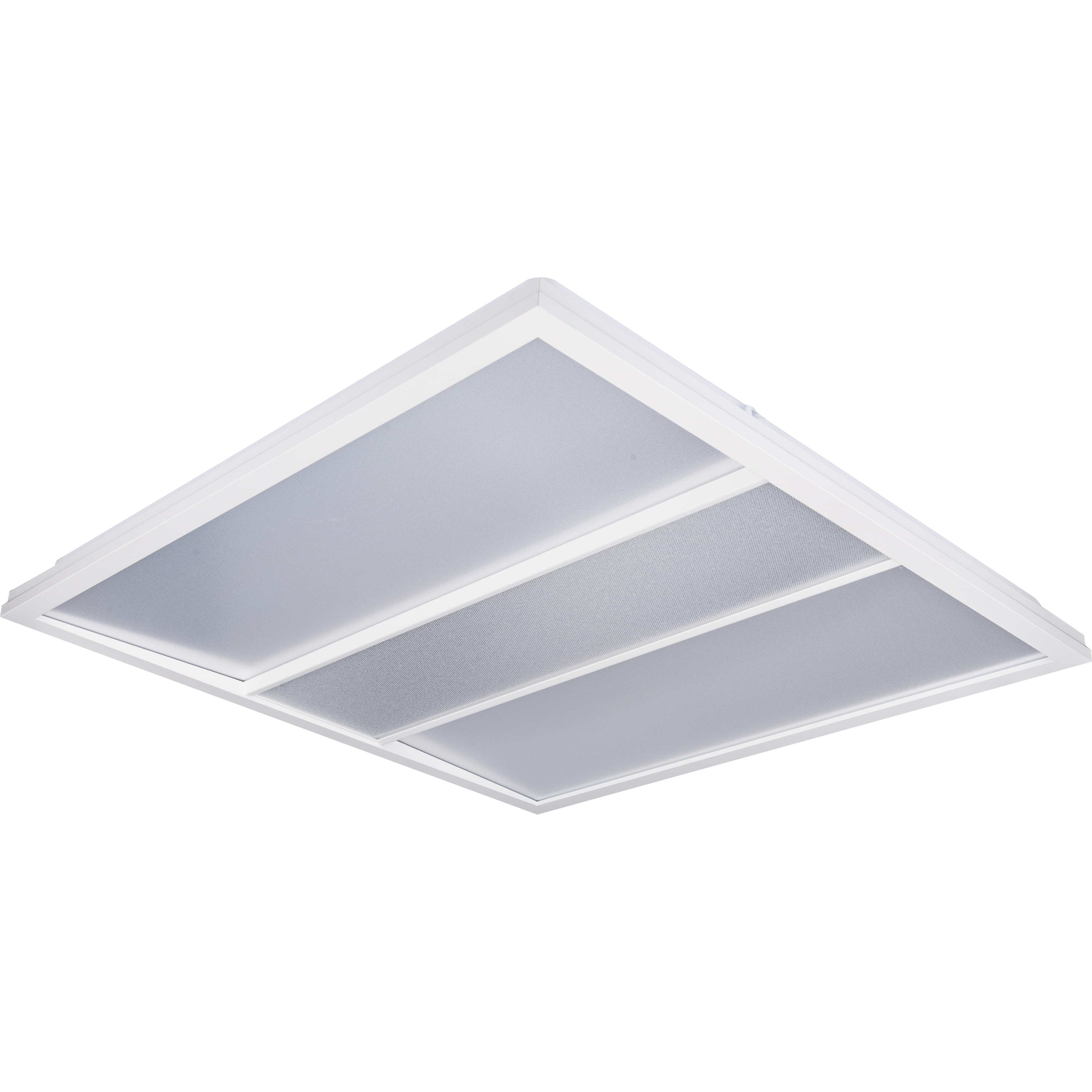

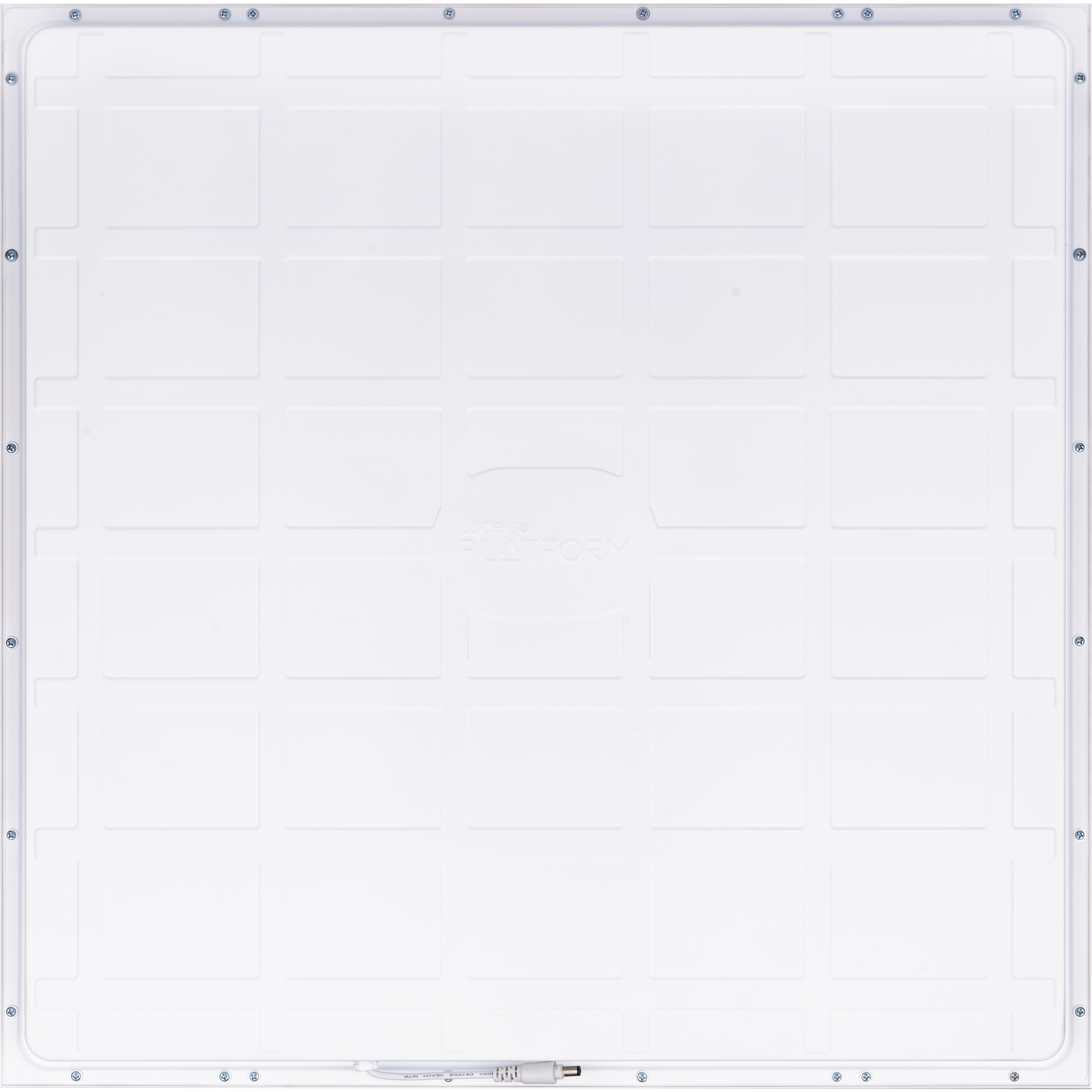

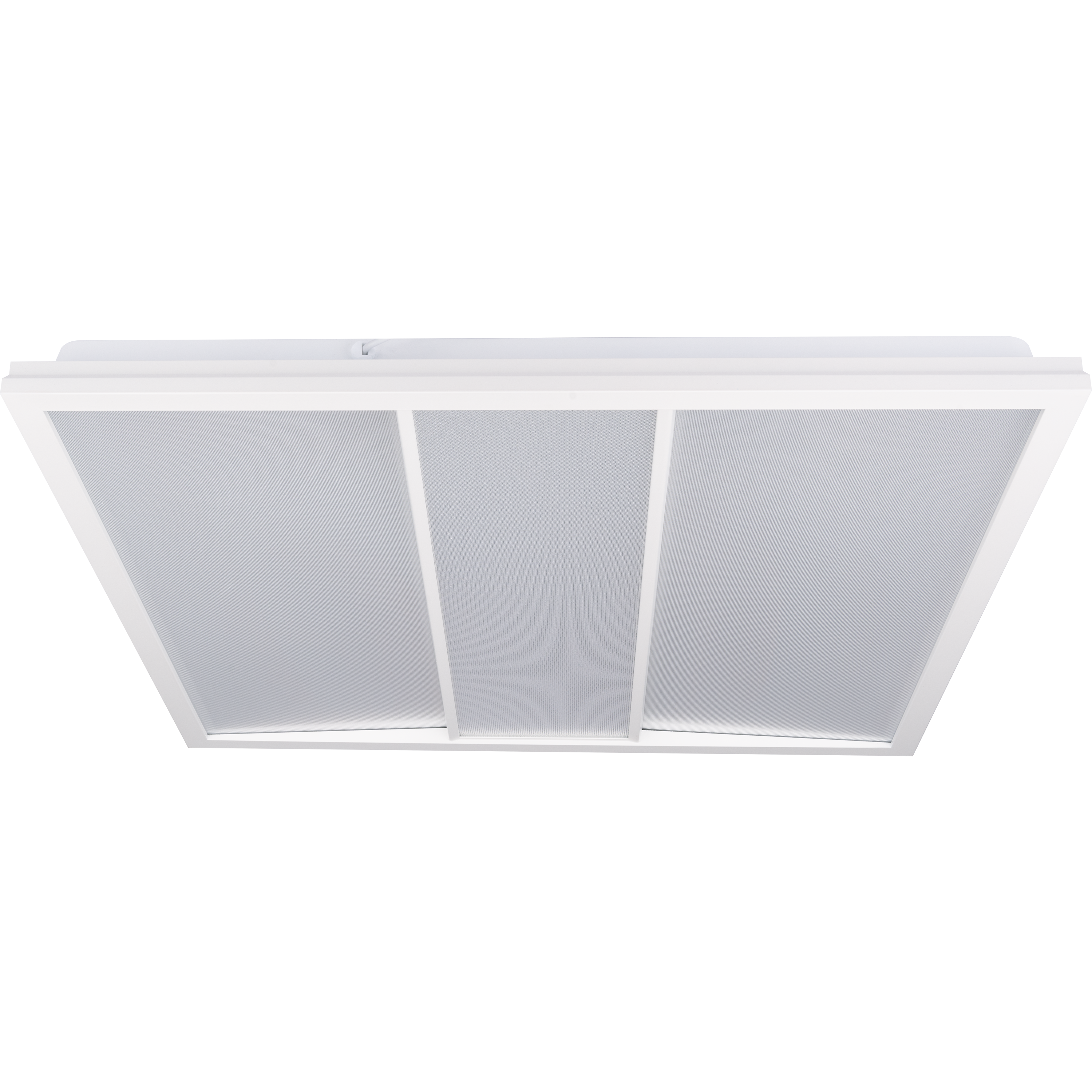

Architectural direct/indirect backlit LED Panel with slimline 50mm depth finished in RAL9016 white
Power selectable with 4 options for maximum adjustability
600x600mm white aluminium frame with TPa rated diffuser and UGR19 compliant
Recessed mounted suitable for use in 15mm or 24mm standard exposed ceiling grids
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Standard Deviations of Colour Matching | L/B at Life | Add to Spec |
|---|---|---|---|---|---|---|---|
|
Code
LPD66WS940
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2800
|
Max Wattage (W)
22
|
Efficacy (Lm/W)
127
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LPD66W20D940
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2000
|
Max Wattage (W)
15.5
|
Efficacy (Lm/W)
129
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LPD66W28D940
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2800
|
Max Wattage (W)
22
|
Efficacy (Lm/W)
127
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LPD66W35D940
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
3500
|
Max Wattage (W)
28
|
Efficacy (Lm/W)
125
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
|
|
Code
LPD66W42D940
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
4200
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
145
|
Standard Deviations of Colour Matching
<3
|
L/B at Life
L80-B10
|
