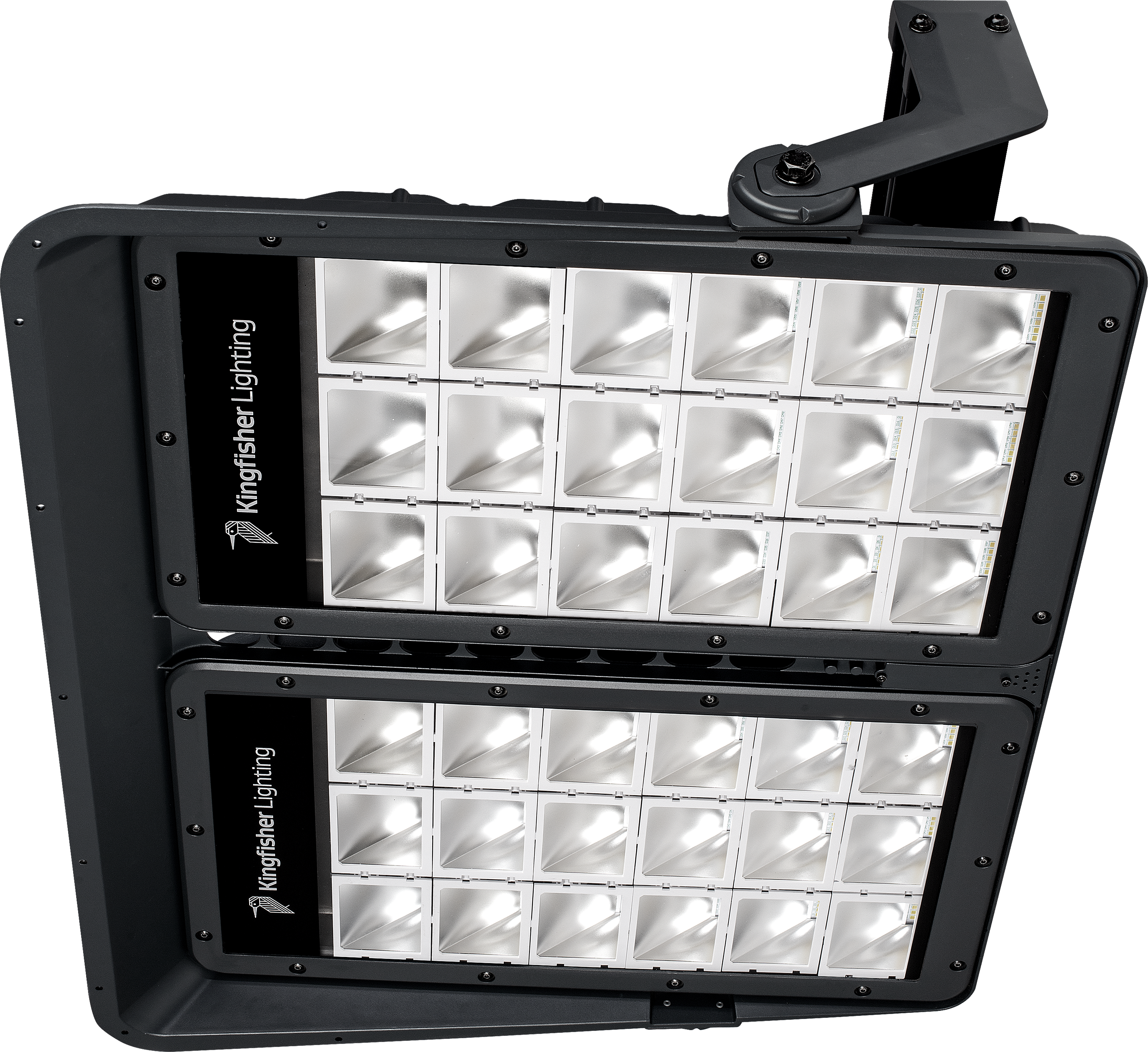

LAPL105NRD6WST740-01
AMNIS PRO, 105,000LUM.LM, 910W, 115LM/W, 6 ROW, REMOTE DIMMABLE DRIVER, WIDE SHORT THROW OPTIC, 4000KRAL7016
Technical Data
| Code | LAPL105NRD6WST740 |
| Driver Type | Digital Dimmable |
| Lumen Output (lm) | 100000 |
| Max Wattage (W) | 910 |
| Efficacy (Lm/W) | 110 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >70 |
| Standard Deviations of Colour Matching | <3 |
| Base Colour | Anthracite Grey - RAL 7016 |
| Onsite Warranty | Yes |
Dimensions and Installation
| Product Depth (mm) | 700 |
| Product Width (mm) | 840 |
| Product Height (mm) | 153 |
| Product Weight (kg) | 39.85 |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Cutout (mm) | N/A |
Performance & Safety
| Lifetime (h) | 100000 |
| L/B at Life | L80-B10 |
| L70 Hours (h) | 198000 |
| L80 Hours (h) | 127500 |
| L90 Hours (h) | 59000 |
| Operating Temperature (C) | -20°C to +25°C |
| Input Voltage (V) | 220-240 |
| E-Class | Class1 |
| Power Factor | >0.98 |
