ESL12P36W40-01

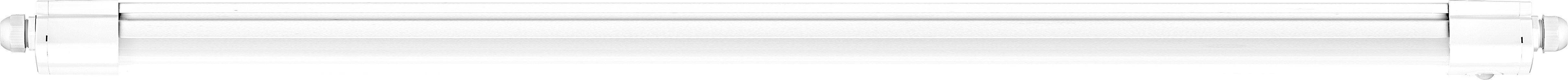

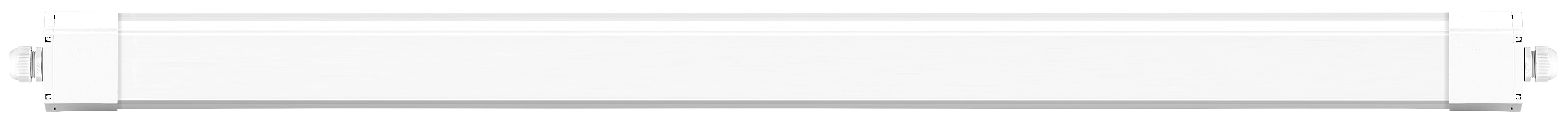

Storm linear 1200mm 3600 lumens with PIR
Technical Data
| Code | ESL12P36W40 |
| Driver Type | Fixed Output |
| Lumen Output (lm) | 3600 |
| Max Wattage (W) | 36 |
| Efficacy (Lm/W) | 100 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Standard Deviations of Colour Matching | <6 |
| Base Colour | Grey |
Dimensions and Installation
| Product Depth (mm) | 1250 |
| Product Width (mm) | 76 |
| Product Height (mm) | 51 |
| Product Weight (kg) | 0.583 |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Cutout (mm) | N/A |
Performance & Safety
| Lifetime (h) | 25000 |
| L/B at Life | L70-B50 |
| Operating Temperature (C) | -20°C to +25°C |
| E-Class | Class2 |
| Power Factor | >0.9 |
