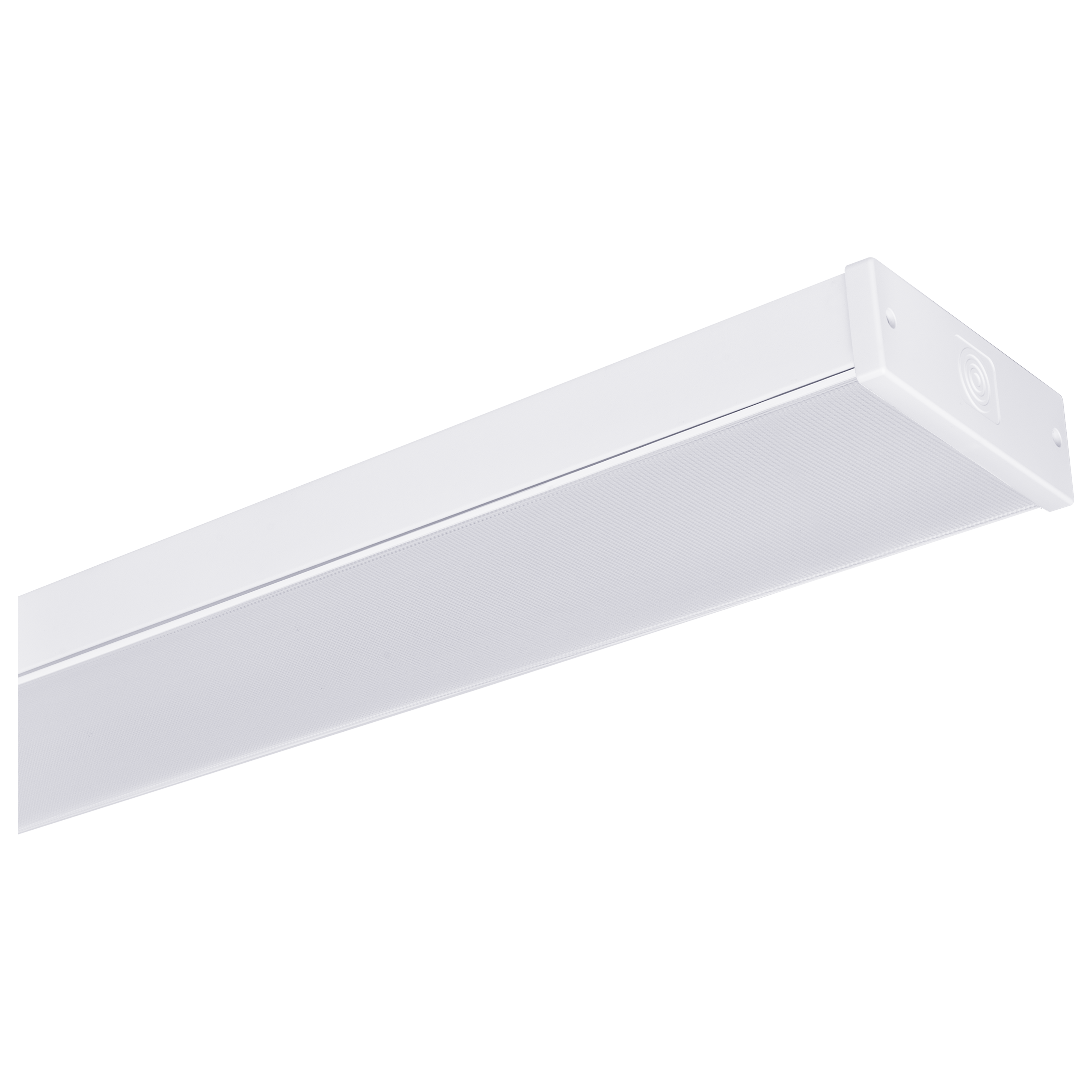

Academy Ultra

Commercial LED linear lighting range with low glare optics, selectable outputs, DALI dimming and emergency options for education, office and retail applications.

View Product Family

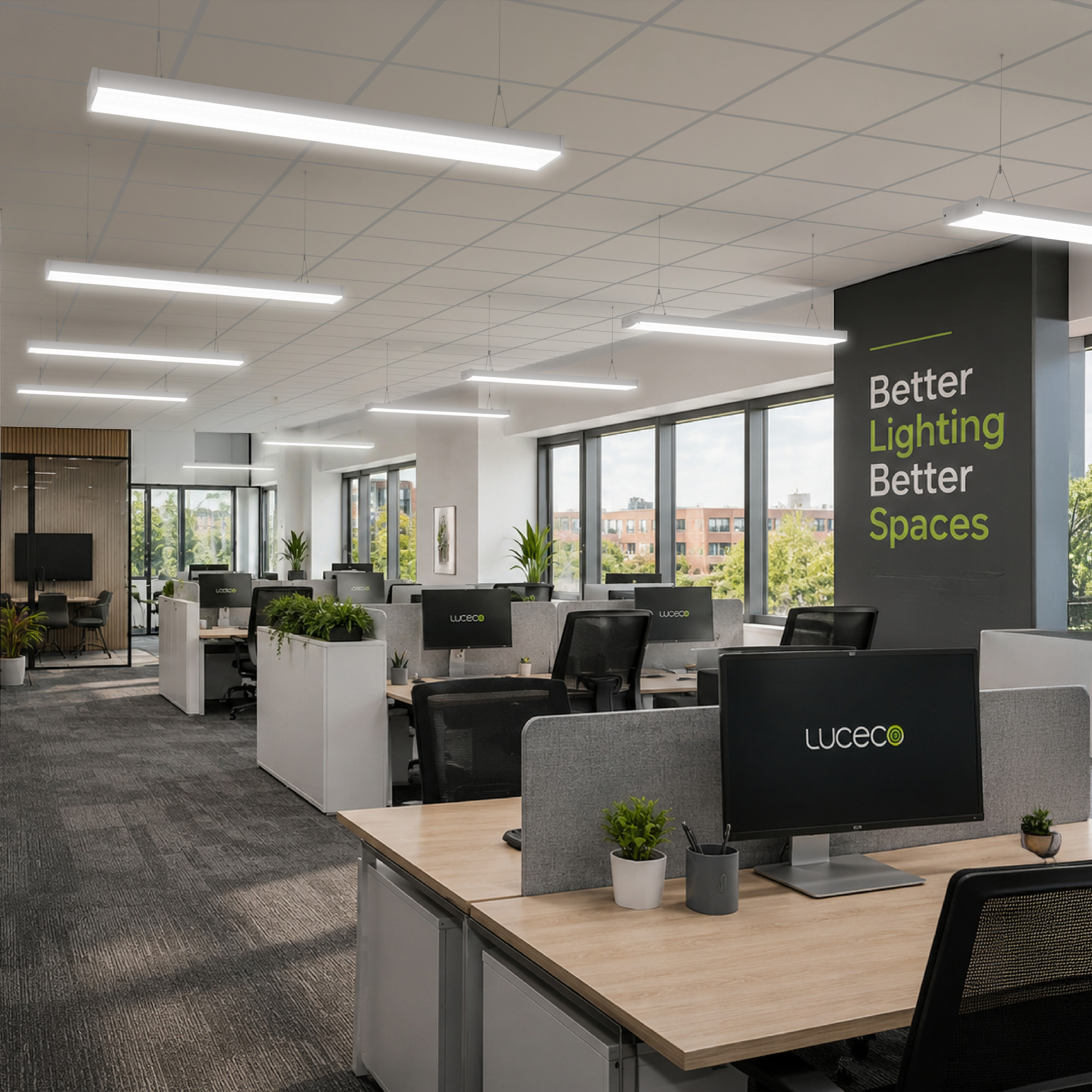

Academy Ultra delivers comfortable, energy-efficient lighting that enhances everyday commercial environments while helping reduce maintenance and operational costs. Flexible installation and control options make the range an ideal solution for fast-moving commercial projects across education, office and retail sectors.

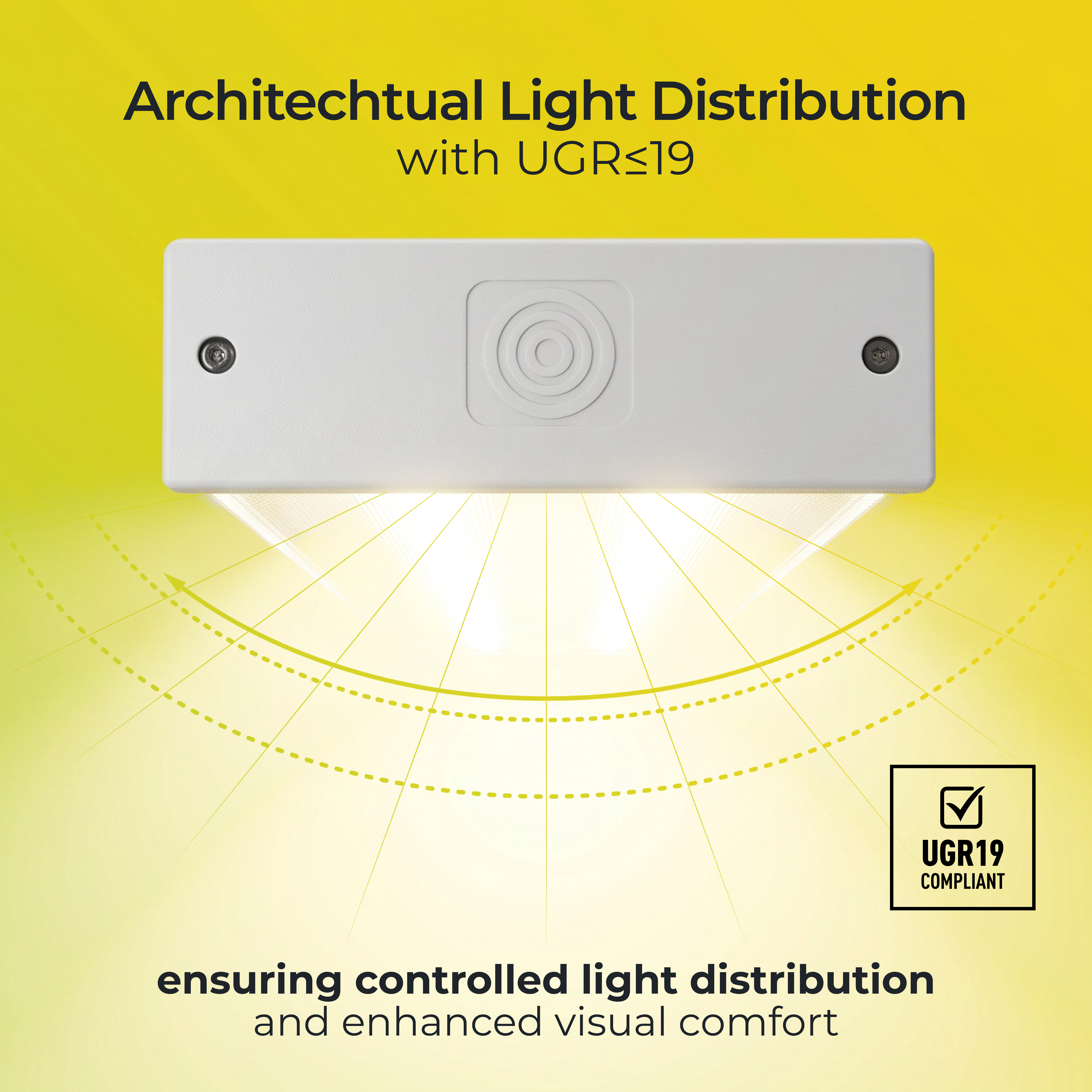

UGR≤19 low glare microprismatic diffuser

Neutral white 4000K illumination for commercial environments

Flexible installation with suspended mounting support

Self-test emergency mode with auto/manual switch

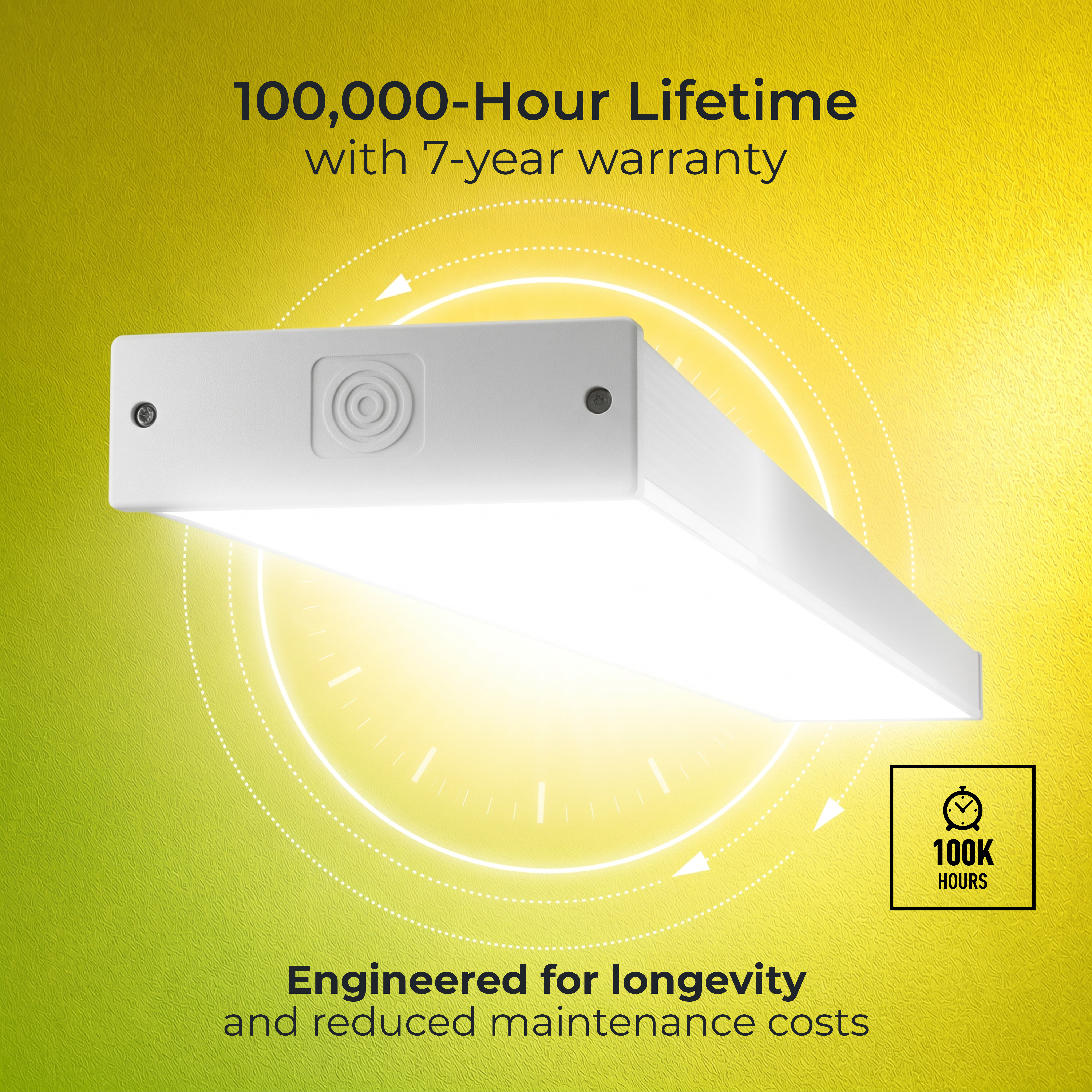

100,000-hour lifetime performance reduces maintenance

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code LAU12WS40	Driver Type Fixed Output	Lumen Output (lm) 2200/4200	Max Wattage (W) 16/30	Efficacy (Lm/W) 138/140	Add to Spec Remove from Spec Processing
Code LAU12WE40	Driver Type Fixed Output + Emergency	Lumen Output (lm) 2200/4200	Max Wattage (W) 16/30	Efficacy (Lm/W) 138/140	Add to Spec Remove from Spec Processing
Code LAU12W22D40	Driver Type Digital Dimmable	Lumen Output (lm) 2200	Max Wattage (W) 16	Efficacy (Lm/W) 138	Add to Spec Remove from Spec Processing
Code LAU12W42D40	Driver Type Digital Dimmable	Lumen Output (lm) 4200	Max Wattage (W) 30	Efficacy (Lm/W) 140	Add to Spec Remove from Spec Processing
Code LAU12W22ED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 2200	Max Wattage (W) 16	Efficacy (Lm/W) 138	Add to Spec Remove from Spec Processing
Code LAU12W42ED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 4200	Max Wattage (W) 30	Efficacy (Lm/W) 140	Add to Spec Remove from Spec Processing
Code LAU12W22LPW40PIR	Driver Type Luceco Platform Wireless + Sensor	Lumen Output (lm) 2200	Max Wattage (W) 16	Efficacy (Lm/W) 138	Add to Spec Remove from Spec Processing
Code LAU12W42LPW40PIR	Driver Type Luceco Platform Wireless + Sensor	Lumen Output (lm) 4200	Max Wattage (W) 30	Efficacy (Lm/W) 140	Add to Spec Remove from Spec Processing
Code LAU12W22ELPW40PIR	Driver Type Luceco Platform Wireless + Emergency +Sensor	Lumen Output (lm) 2200	Max Wattage (W) 16	Efficacy (Lm/W) 138	Add to Spec Remove from Spec Processing
Code LAU12W42ELPW40PIR	Driver Type Luceco Platform Wireless + Emergency +Sensor	Lumen Output (lm) 4200	Max Wattage (W) 30	Efficacy (Lm/W) 140	Add to Spec Remove from Spec Processing

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code LAU15WS40	Driver Type Fixed Output	Lumen Output (lm) 3200/5000	Max Wattage (W) 23/36	Efficacy (Lm/W) 139/139	Add to Spec Remove from Spec Processing
Code LAU15WE40	Driver Type Fixed Output + Emergency	Lumen Output (lm) 3200/5000	Max Wattage (W) 23/36	Efficacy (Lm/W) 139/139	Add to Spec Remove from Spec Processing
Code LAU15W32D40	Driver Type Digital Dimmable	Lumen Output (lm) 3200	Max Wattage (W) 23	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W50D40	Driver Type Digital Dimmable	Lumen Output (lm) 5000	Max Wattage (W) 36	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W32ED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 3200	Max Wattage (W) 23	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W50ED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 5000	Max Wattage (W) 36	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W32LPW40PIR	Driver Type Luceco Platform Wireless + Sensor	Lumen Output (lm) 3200	Max Wattage (W) 23	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W50LPW40PIR	Driver Type Luceco Platform Wireless + Sensor	Lumen Output (lm) 5000	Max Wattage (W) 36	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W32ELPW40PIR	Driver Type Luceco Platform Wireless + Emergency +Sensor	Lumen Output (lm) 3200	Max Wattage (W) 23	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
Code LAU15W50ELPW40PIR	Driver Type Luceco Platform Wireless + Emergency +Sensor	Lumen Output (lm) 5000	Max Wattage (W) 36	Efficacy (Lm/W) 139	Add to Spec Remove from Spec Processing
