LER12WMOD-02

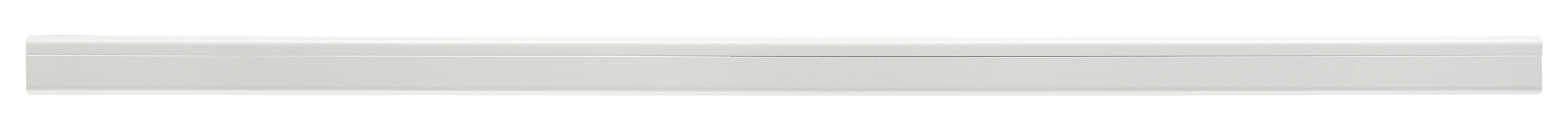

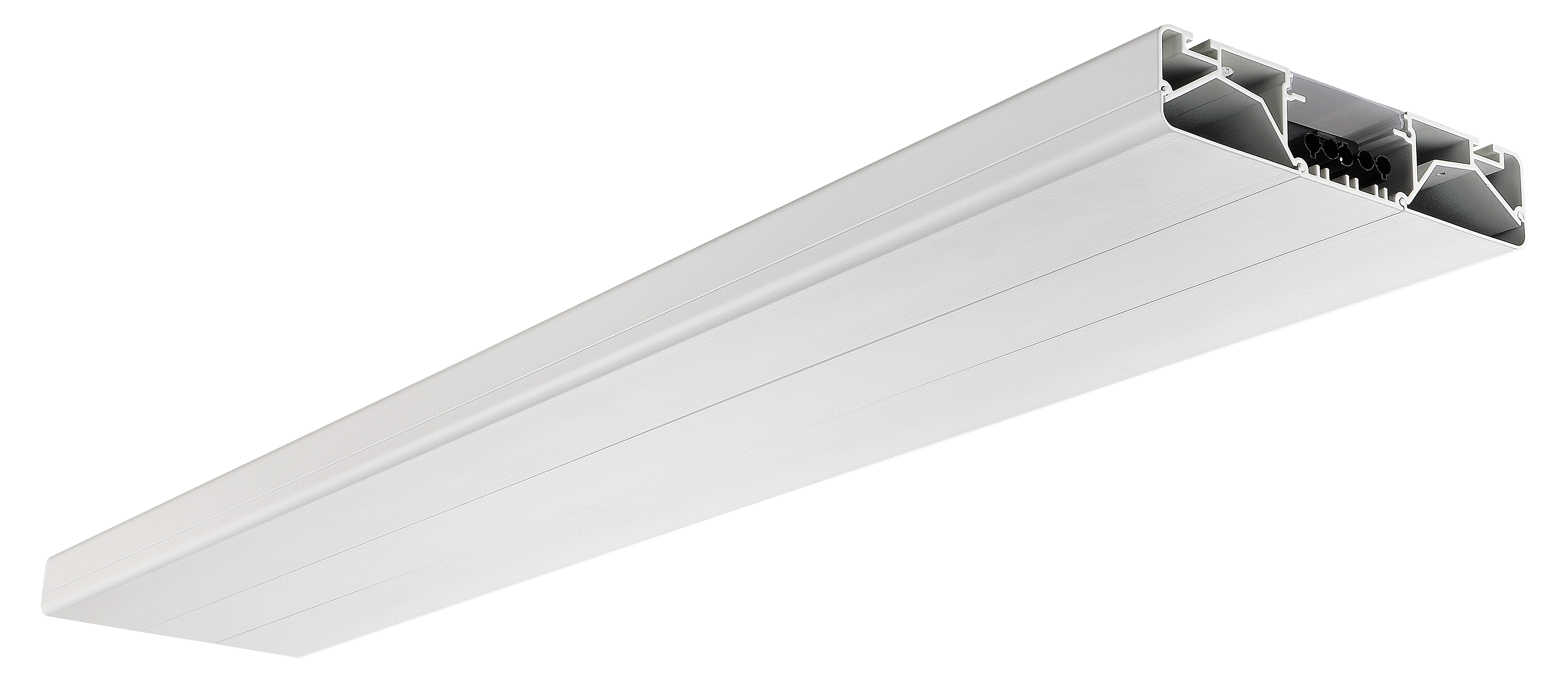

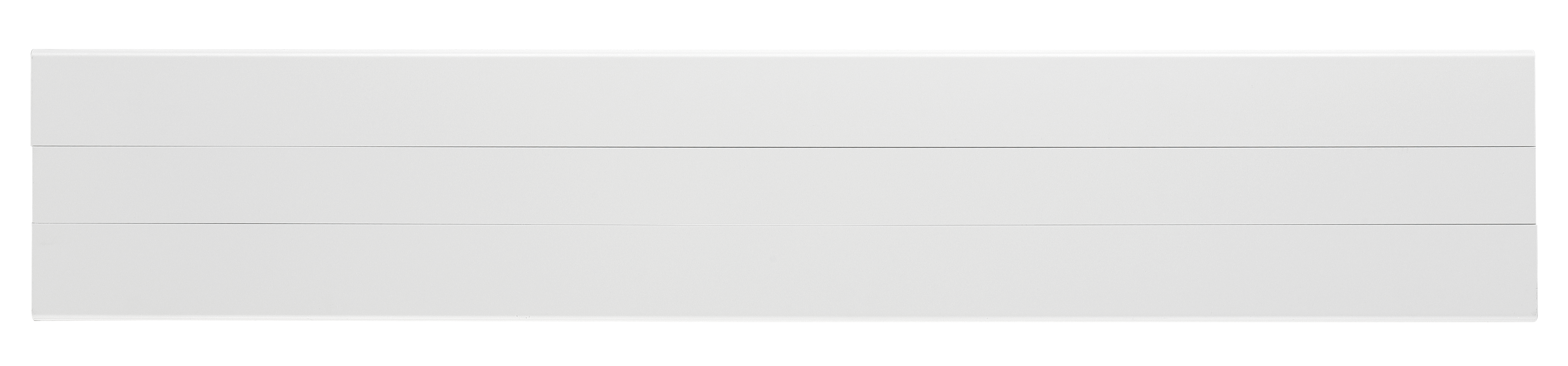

Leren 1160mm suspended blank infill module finished in white
1200mm Blank module

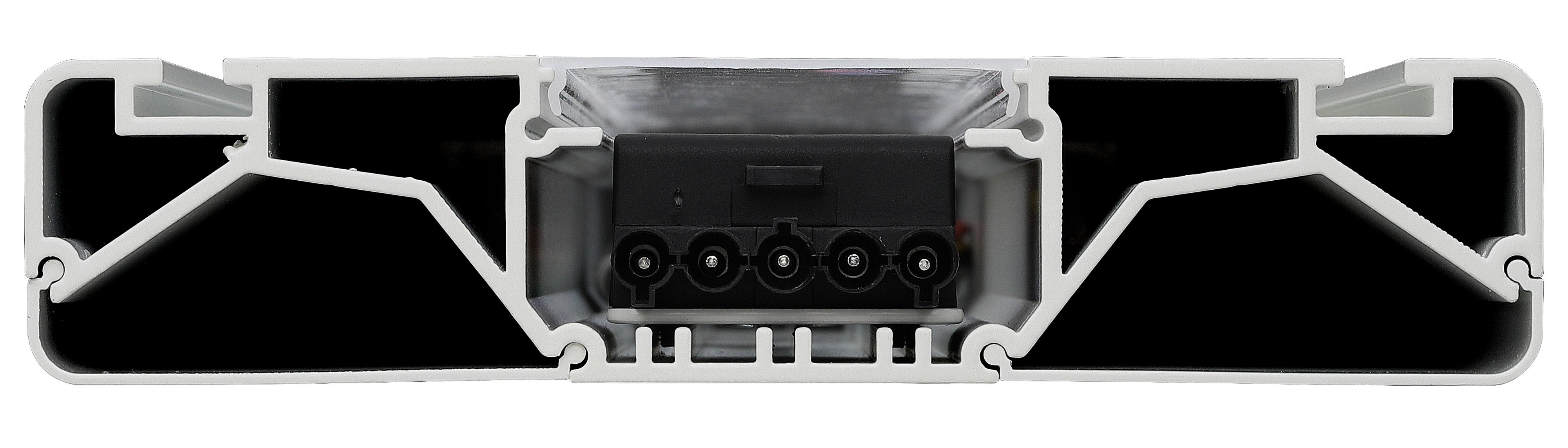

5 Pole connector and thru-wiring
RAL9016
Compatible with fixed output and DALI control gear
Supplied with 1.5m suspensions
Code | LER12WMOD |
Driver Type | N/A |
Lumen Output (lm) | 0 |
Max Wattage (W) | 0 |
Efficacy (Lm/W) | 0 |
Colour Temp (CCT) (K) | N/A |
CRI | N/A |
Standard Deviations of Colour Matching | <3 |
Base Colour | White - RAL 9016 (Traffic White) |
Onsite Warranty | Yes |
Unpacked Depth (mm) | 1160 |
Unpacked Width (mm) | 210 |
Unpacked Height (mm) | 45 |
Unpacked Net Weight (kg) | 6.044 |
IP Rating | IP40 |
IK Rating | IK10 |
Cutout (mm) | N/A |
Lifetime (h) | 0 |
L/B at Life | N/A |
L70 Hours (h) | 0 |
L80 Hours (h) | 0 |
L90 Hours (h) | 0 |
Operating Temperature (C) | N/A |
E-Class | Class1 |
Power Factor | 0 |
UGR 4H 8H | NA |
