LLA12WEDCC-01

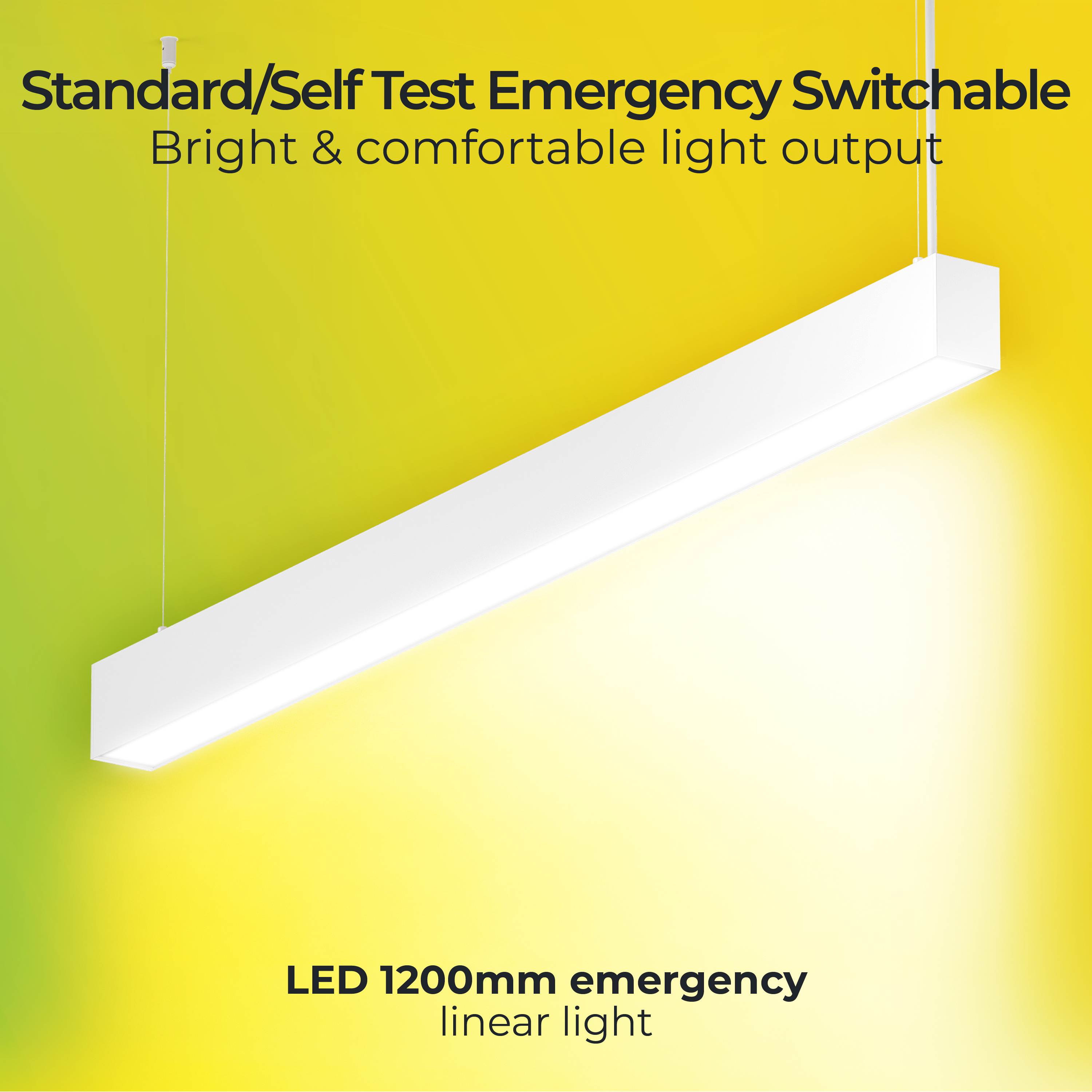

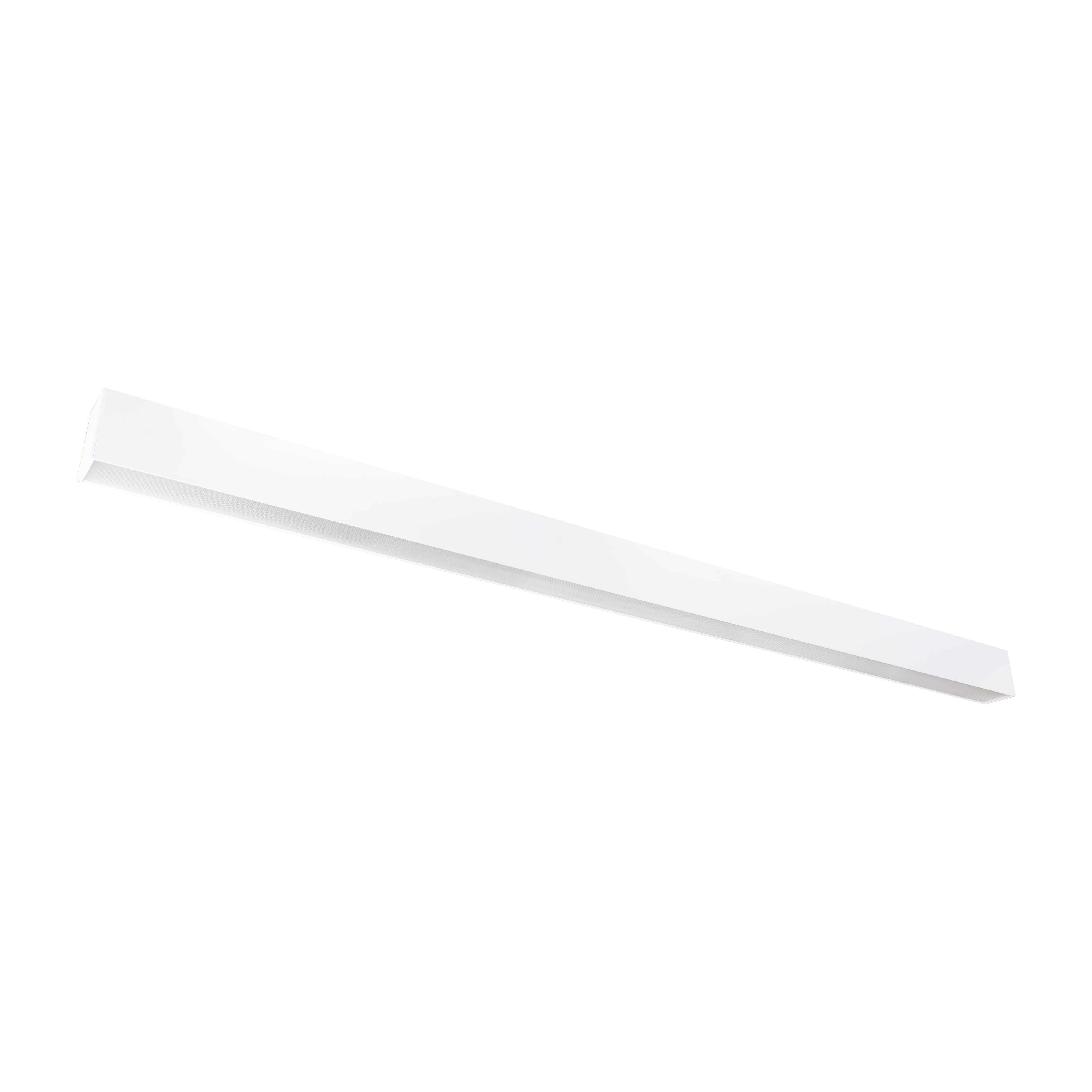

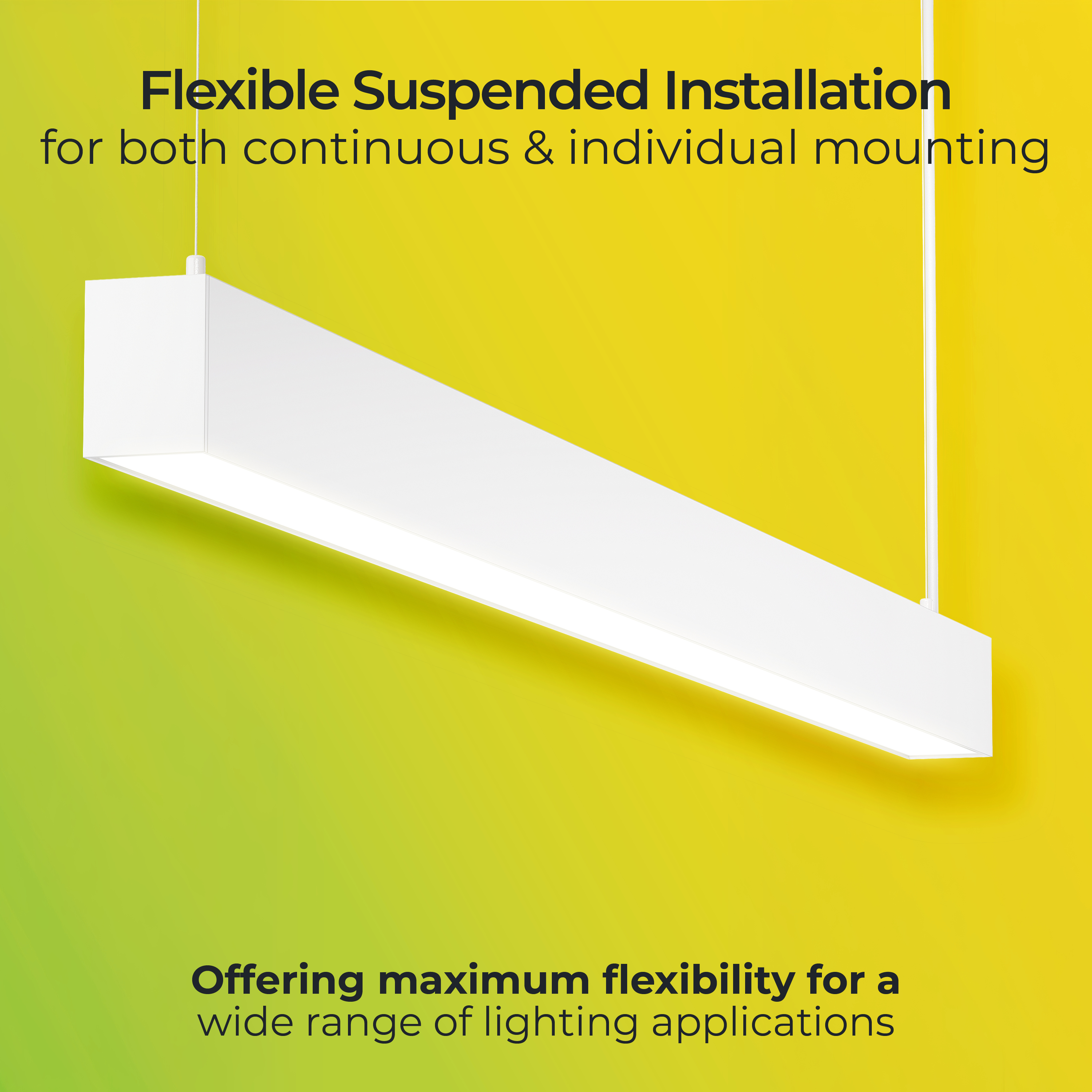

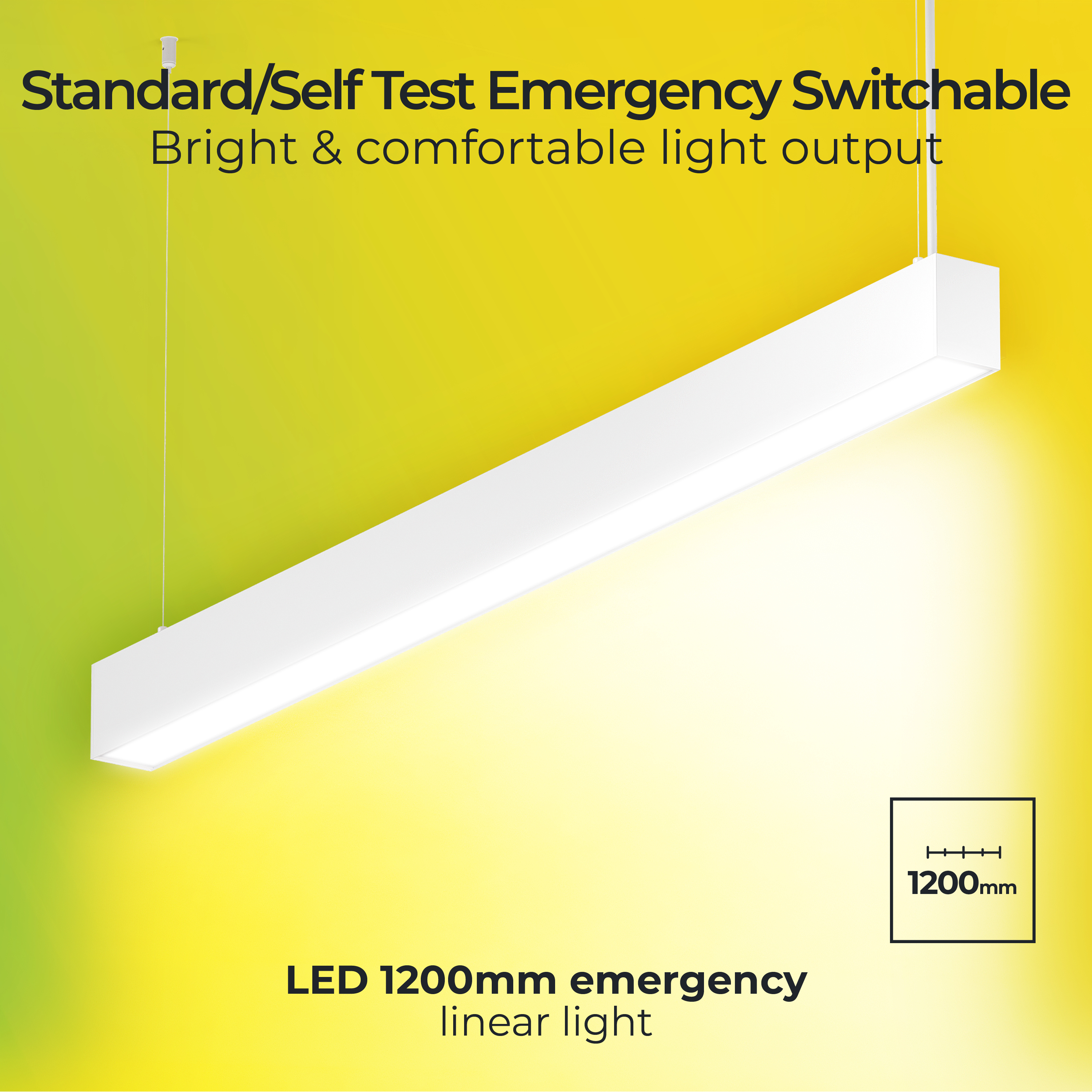

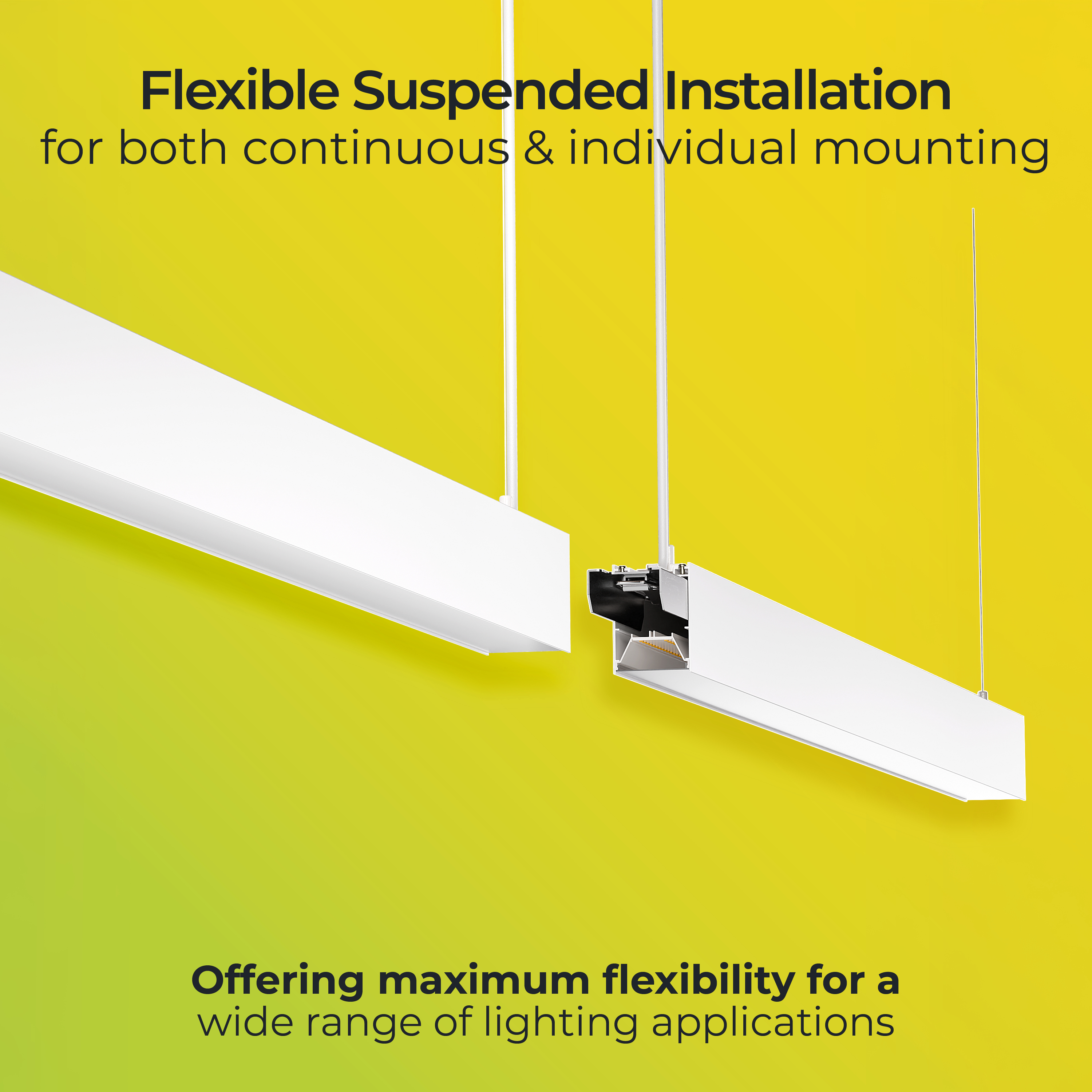

Linea 1200mm LED Emergency Suspended Linear Light, Dimmable
Technical Data
| Code | LLA12WEDCC |
| Driver Type | Digital Dimmable + Emergency |
| Lumen Output (lm) | 1900/2400/3100/3600 |
| Max Wattage (W) | 13.5/17/22/25.5 |
| Efficacy (Lm/W) | 141/141/141/141 |

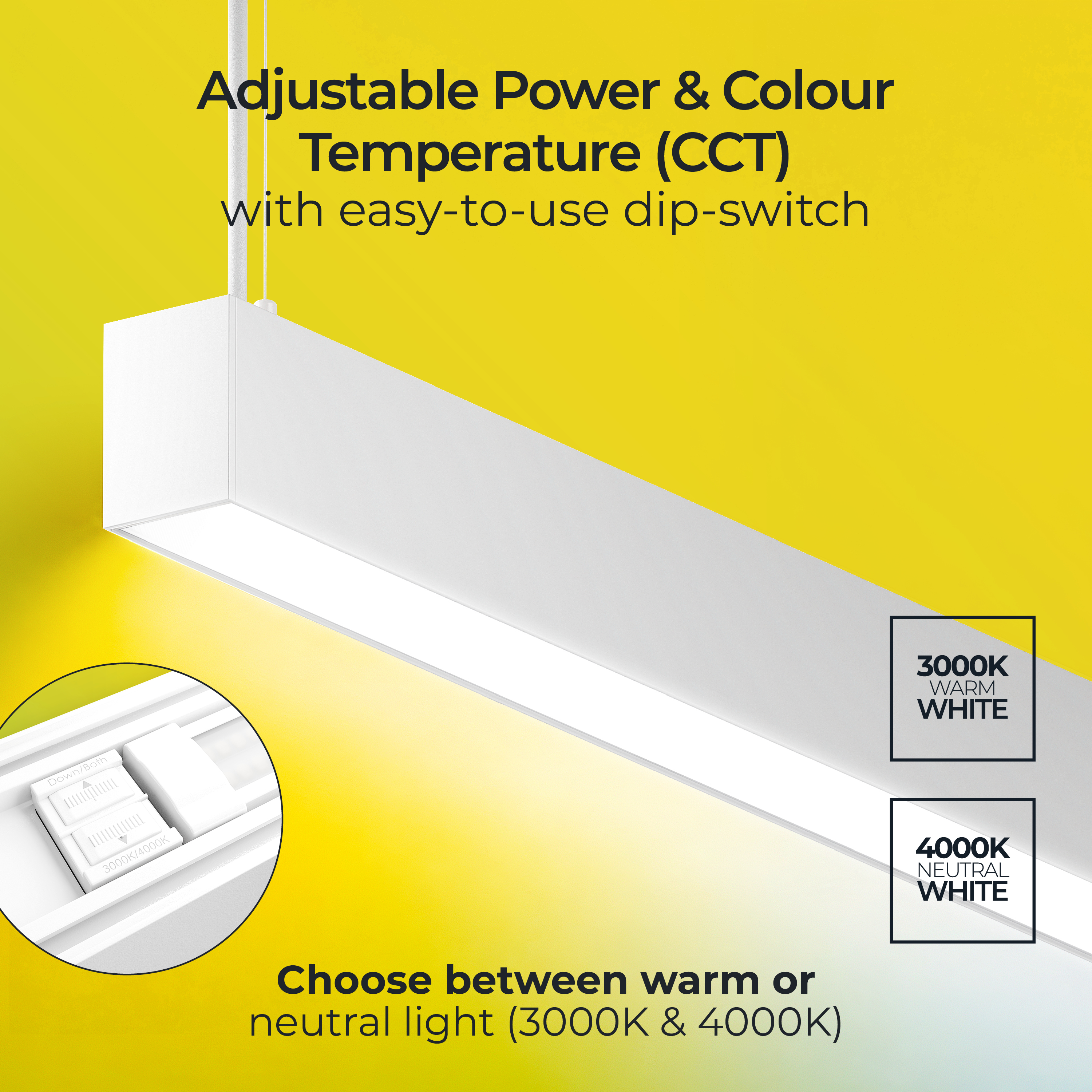

| Colour Temp. (K) | 3000, 4000 |
| CRI | >80 |
| Standard Deviations of Colour Matching | <6 |
| Base Colour | White - RAL 9016 (Traffic White) |
| Onsite Warranty | Yes |
Dimensions and Installation
| Product Depth (mm) | 60 |
| Product Width (mm) | 1208 |
| Product Height (mm) | 83 |
| Product Weight (kg) | 3 |
| IP Rating | IP20 |
| IK Rating | IK05 |
Performance & Safety
| Lifetime (h) | 70000 |
| L/B at Life | L80-B10 |
| L70 Hours (h) | 70000 |
| L80 Hours (h) | 50000 |
| Operating Temperature (°C) | 0 to +40 |
| E-Class | Class1 |
| Power Factor | >0.8 |
| UGR 4H 8H | <19 |
