LIT12W58D940-02

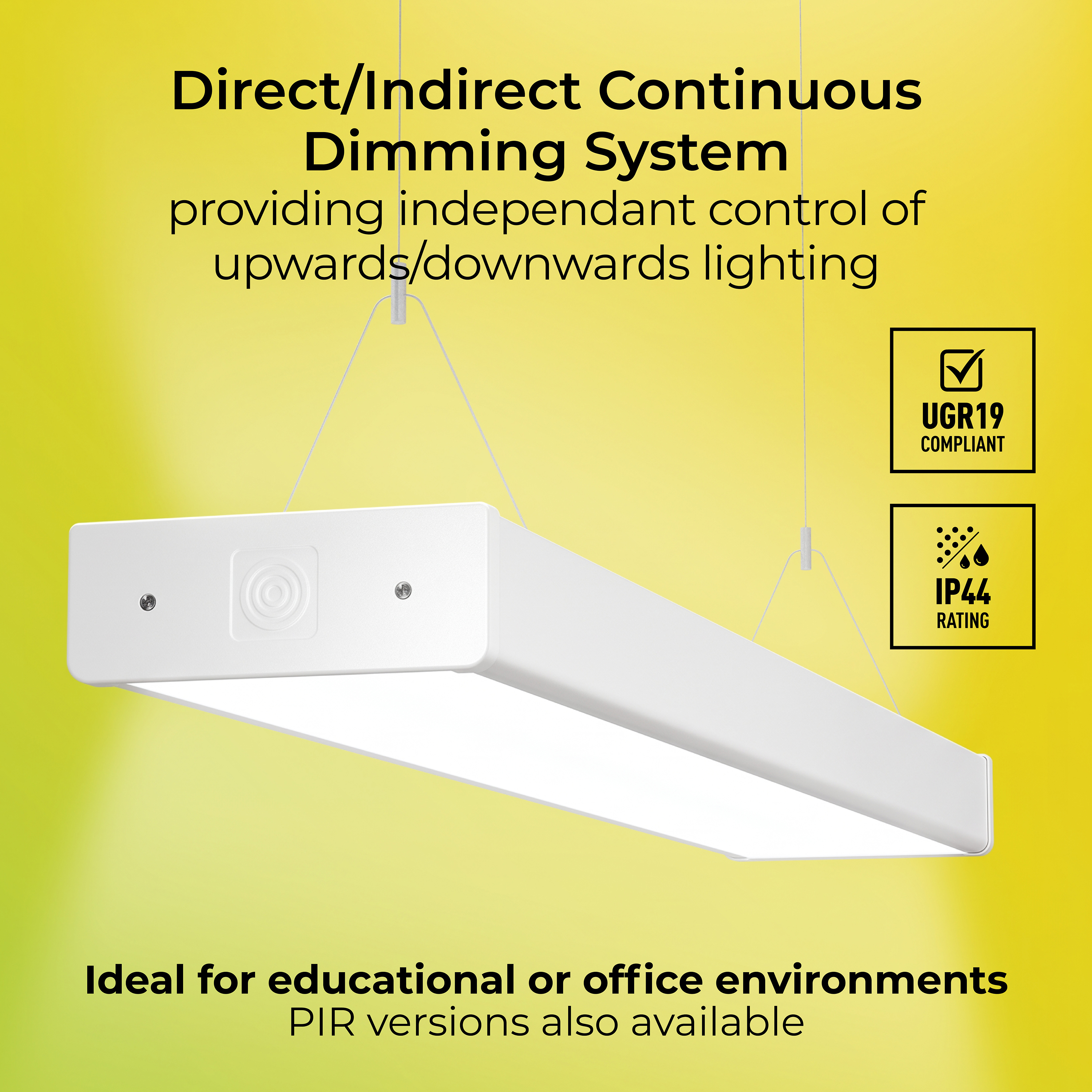

Litera Suspended Linear 1180mm 5800Lm 40W 4000K CRI>90 IP44 DALI Dimmable
Technical Data
| Code | LIT12W58D940 |

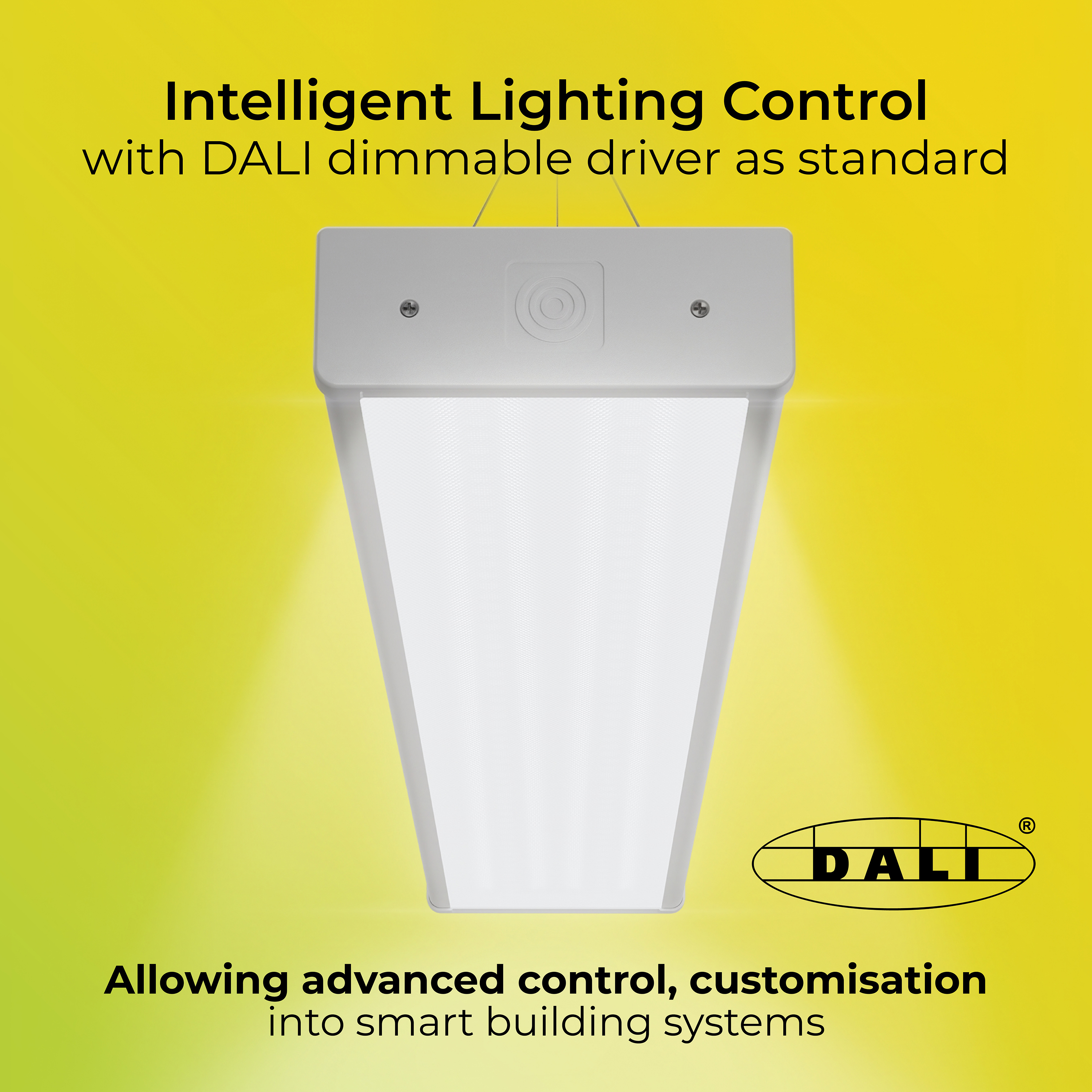

| Driver Type | Digital Dimmable |
| Lumen Output (lm) | 5800 |
| Max Wattage (W) | 40 |
| Efficacy (Lm/W) | 145 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >90 |
| Standard Deviations of Colour Matching | <3 |
| Base Colour | White - RAL 9016 (Traffic White) |
| Onsite Warranty | Yes |
Dimensions and Installation
| Product Depth (mm) | 62.5 |
| Product Width (mm) | 202 |
| Product Height (mm) | 1180 |
| Product Weight (kg) | 4.5 |
| IP Rating | IP44 |
| IK Rating | IK05 |
Performance & Safety
| Lifetime (h) | 100000 |
| L/B at Life | L80-B10 |
| L70 Hours (h) | 200000 |
| L80 Hours (h) | 162000 |
| Operating Temperature (C) | 0°C to +25°C |
| E-Class | Class2 |
| Power Factor | >0.9 |
| UGR 4H 8H | 18.6 |
