ELP30W24L30-03

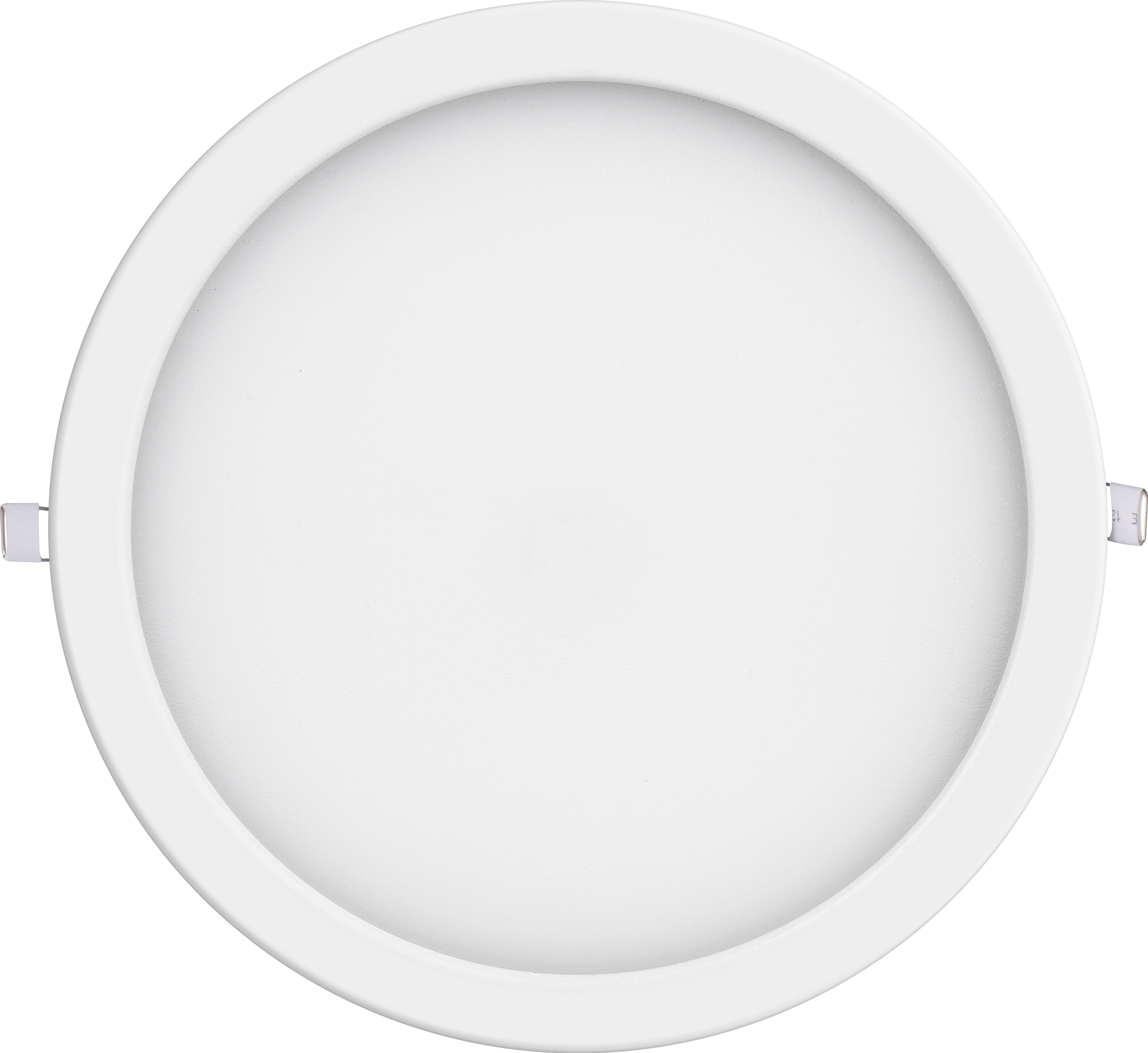

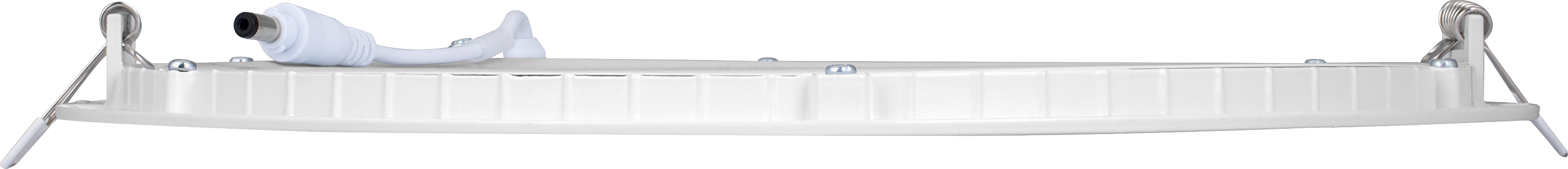

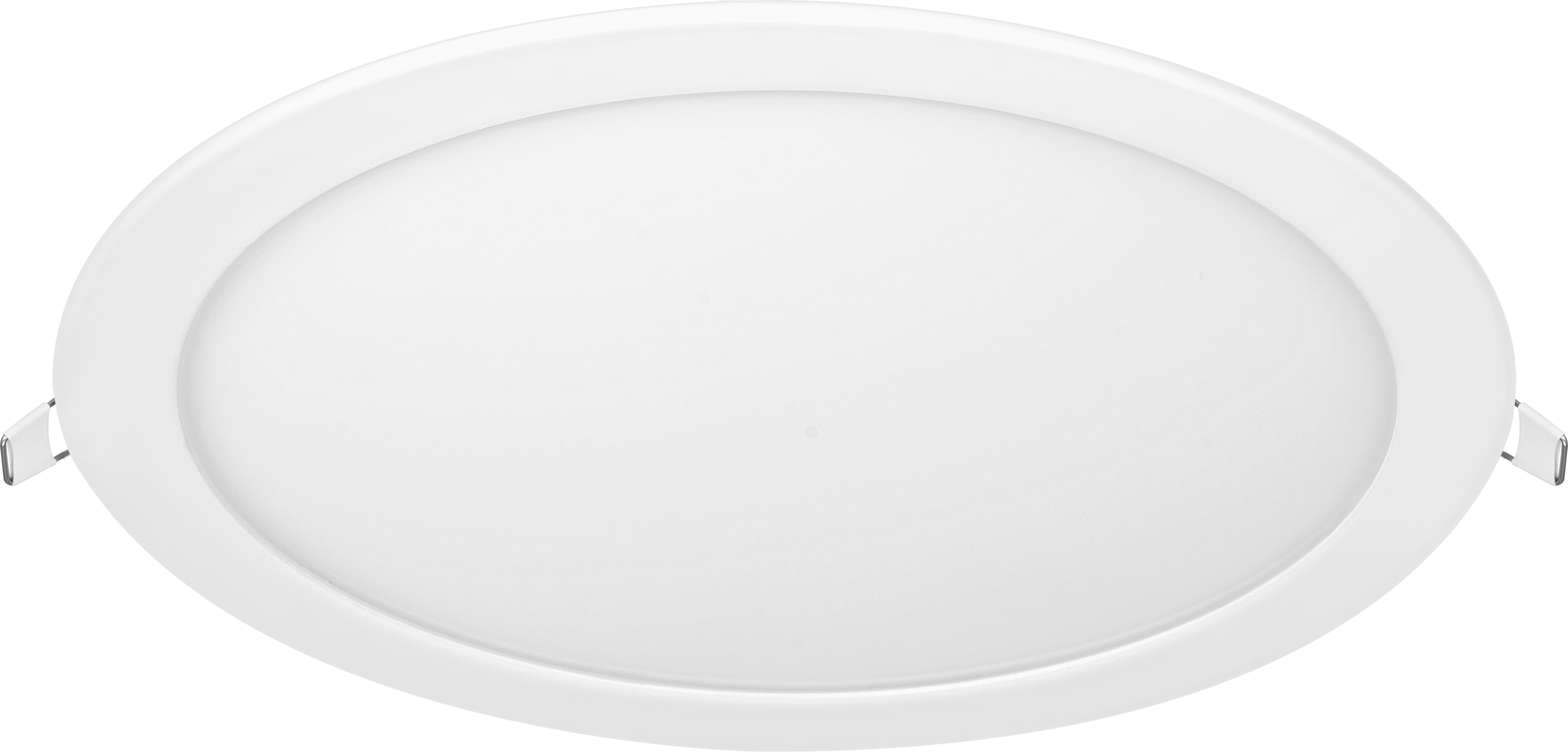

ECO CIRCULAR SLIMLINE DOWNLIGHT Ø300MM 2040LM 24W 3000K STANDARD - PC DIFFUSER
Technical Data
| Code | ELP30W24L30 |
| Driver Type | Fixed Output |
| Lumen Output (lm) | 2040 |
| Max Wattage (W) | 24 |
| Efficacy (Lm/W) | 85 |
| Colour Temp (CCT) (K) | 3000 |
| Beam Angle (degrees) | 110 |
| CRI | >80 |
| Base Colour | White |
Dimensions and Installation
| Cutout (mm) | 280mm |
| Product Depth (mm) | 0 |
| Product Width (mm) | 294 |
| Product Height (mm) | 20.5 |
| Product Weight (kg) | 0.617 |
Performance & Safety
| Lifetime (h) | 25000 |
| L/B at Life | L70-B50 |
| Operating Temperature (C) | -20°C to +25°C |
| E-Class | Class2 |
| Power Factor | >0.5 |
| IK Rating | IK04 |
| Fire Rating | TPB |
